Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery

1 / 3

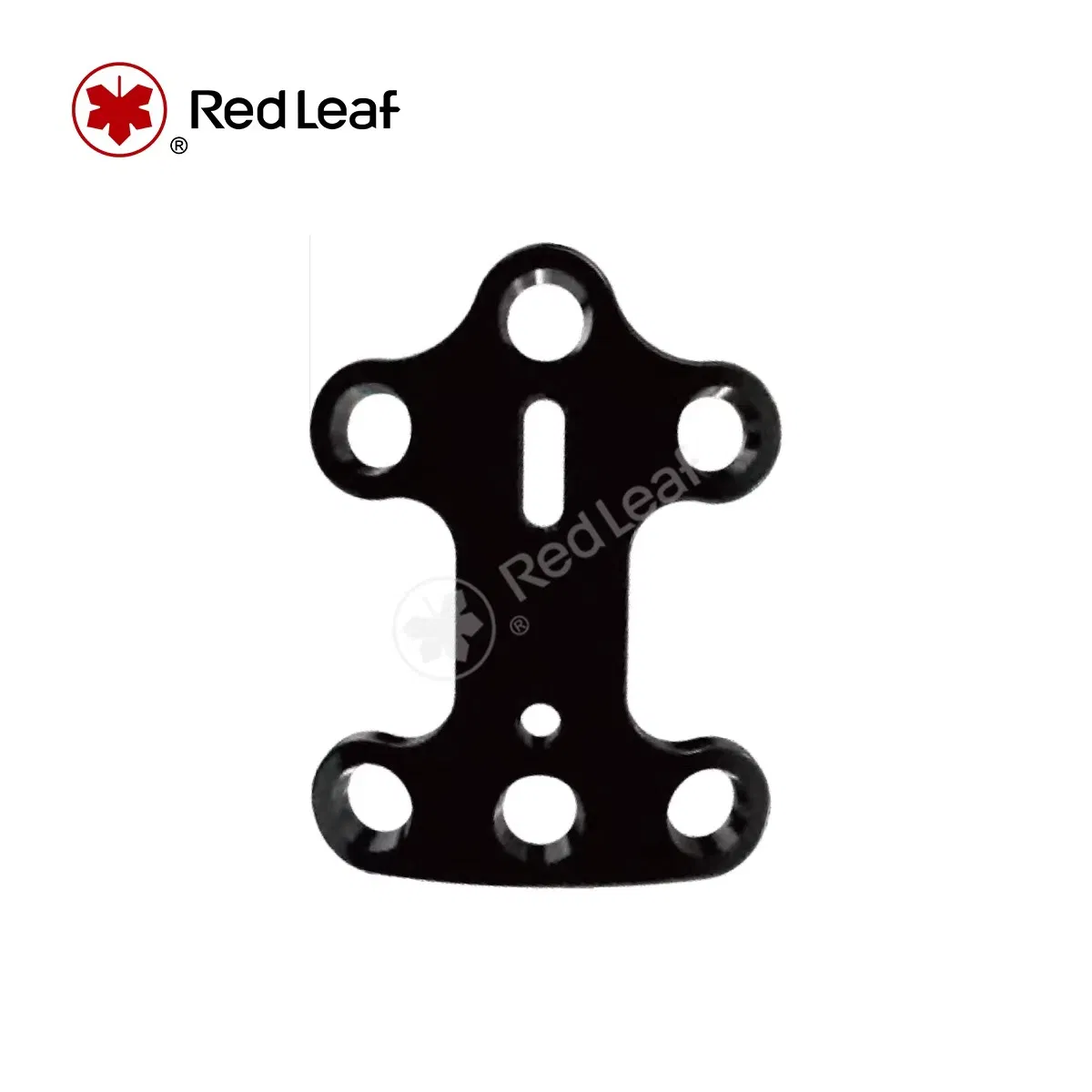

Orthopedic Outer Pillar Brace Osteotomy Locking Plate for Flatfoot Valgus Correction Surgery

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Information

Model NO.

Evans

Usage

Correct Deformities, Fracture Fixation

Package

Carton

Specification

30x23x2

Origin

China

🔍

Product Description

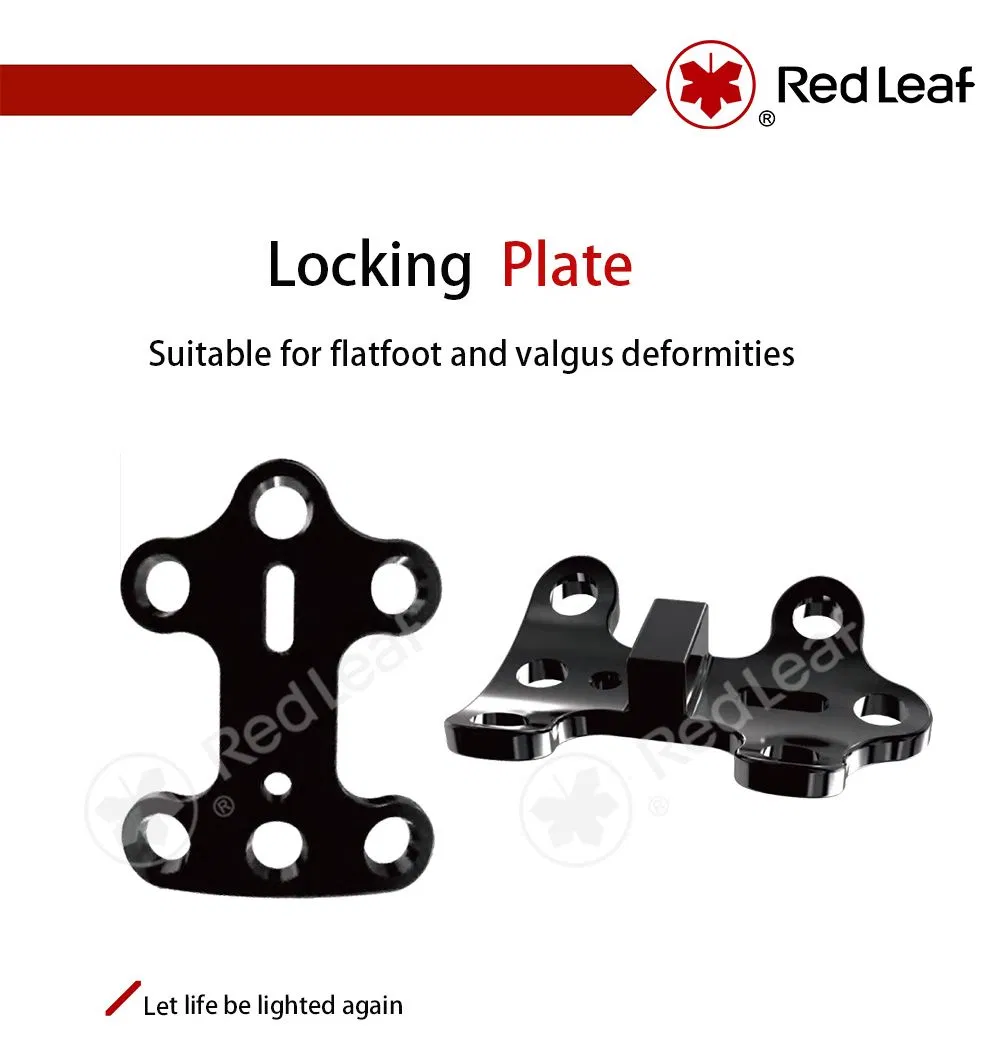

💡 Design Concept

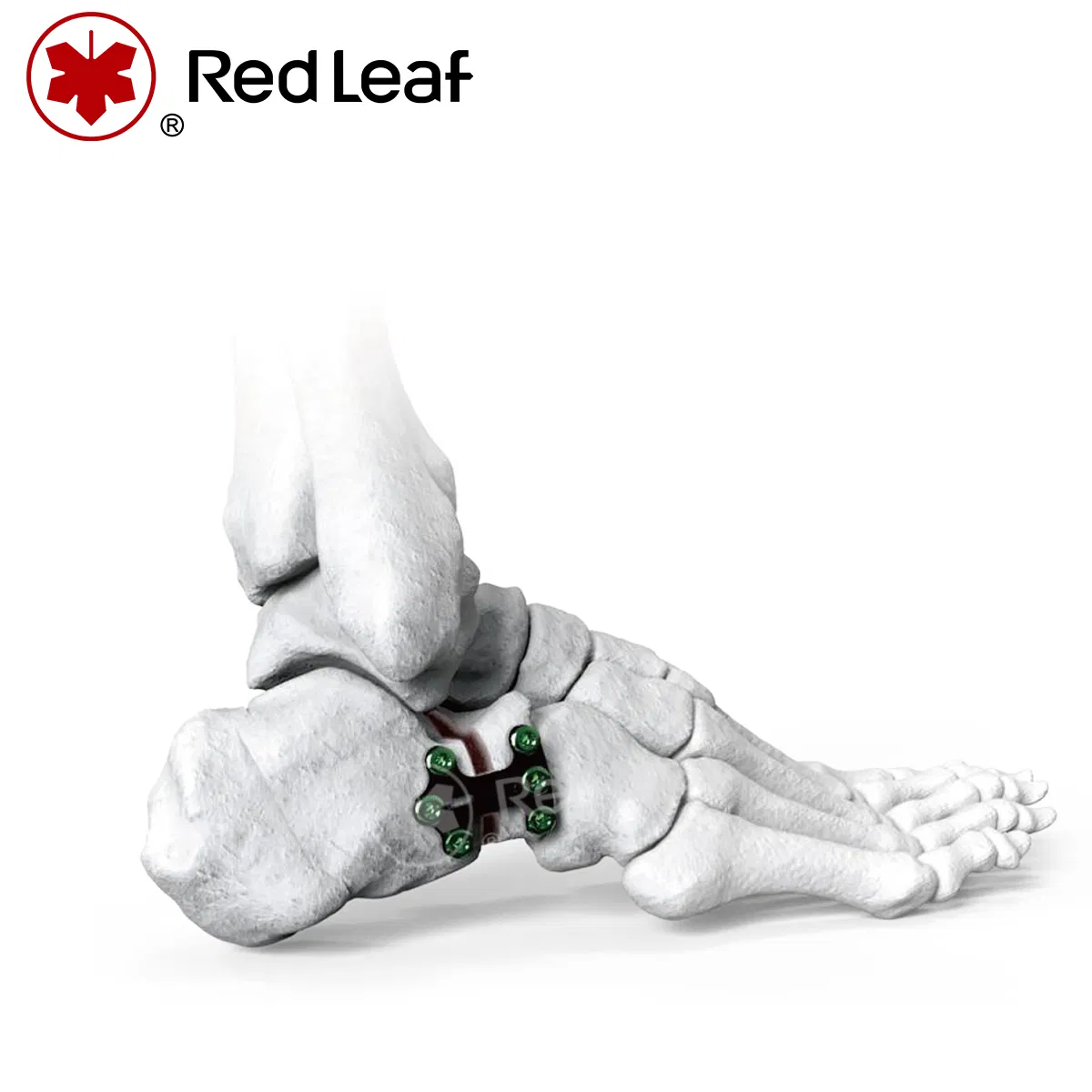

• Suitable for flatfoot and valgus deformities
• Designed for transverse osteotomy of the calcaneal neck
• Optimal distance between osteotomy surface and calcaneocuboid joint: 10-15mm

🔑 Key Surgical Points
• Transverse osteotomy with 10-15mm clearance from joint surface.
• Controlled cutting speed at inner cortex to protect soft tissues.
• Even spreading with parallel openings to facilitate bone ingrowth and prevent non-union.

⚙️ Screw Specifications
• Matching Screw: 3.5mm self-tapping locking screw
• Length Range: 6-40mm (2mm increments)
• Kirschner Wire Compatibility: 1.9mm
• Material: High-strength TC4 titanium alloy

📊

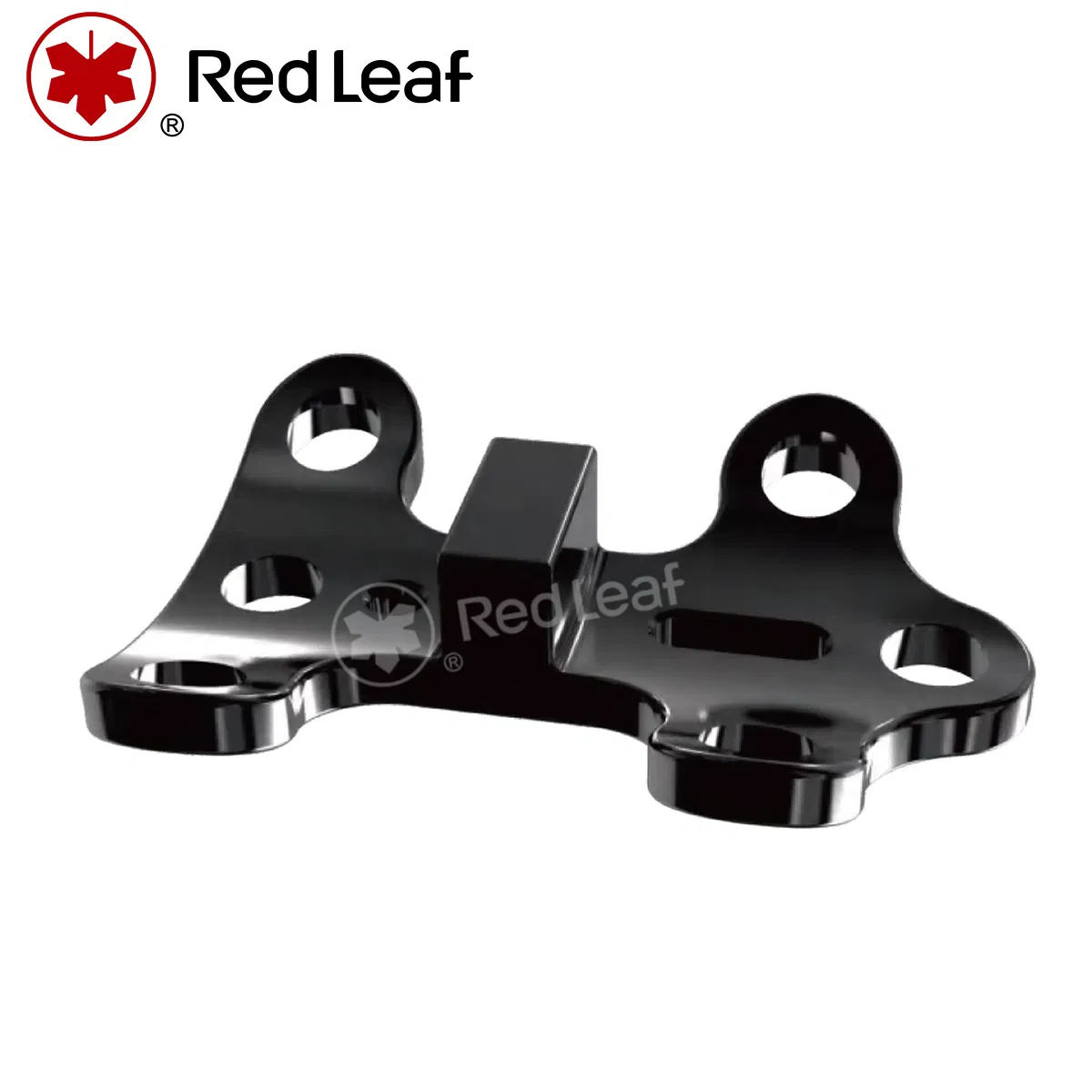

Product Parameters

Specifications	Length (mm)	Width (mm)	Thickness (mm)	Step Width (mm)	Cushion Height (mm)
Big	36.0	23.0	2.0	6/8/10	6/8/10
Middle	30.0	23.0	2.0	4/6/8	4/6/8
Small	26.0	23.0	2.0	2/4/6	2/4/6

❓

Frequently Asked Questions

Q1: What is the primary clinical application for the Evans locking plate? A: It is specifically designed for flatfoot and valgus deformities correction, facilitating transverse osteotomy of the calcaneal neck.

Q2: What material is used for the plate and screws? A: The components are manufactured from high-grade TC4 titanium alloy, ensuring excellent biocompatibility and mechanical strength.

Q3: What type of screws are compatible with this system? A: The system is designed for use with 3.5mm self-tapping locking screws, available in lengths ranging from 6mm to 40mm.

Q4: Are there different sizes available for different patient anatomies? A: Yes, the plate comes in three specifications: Small (26mm), Middle (30mm), and Big (36mm) to accommodate varying surgical needs.

Q5: What is the recommended positioning for the osteotomy? A: The osteotomy surface should ideally be maintained at a distance of 10-15mm from the calcaneocuboid joint surface.

Q6: Does the system include support for temporary fixation? A: Yes, the design is compatible with 1.9mm Kirschner wires for precise positioning and temporary stability during the procedure.
