Product Description

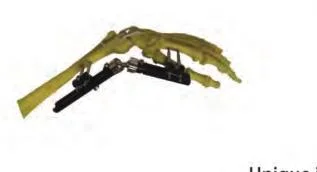

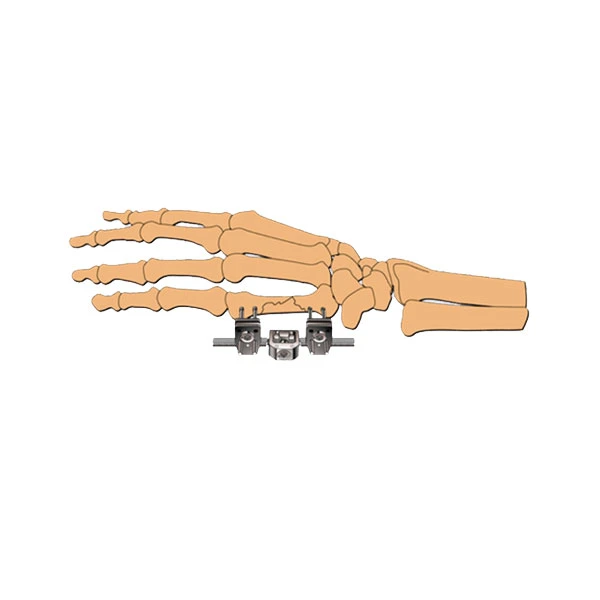

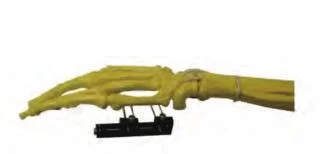

Application: Used for patients with fractures of limbs.
Suitable for those situations:
- Ordinary open fractures
- The contaminated open fractures
- Severe comminuted fractures
- Fracture of soft tissue serious damage
- Temporary fixed Joint ligament which is not stable
| Code |
Specification |
Notes |
| D501 |
Long 85mm |
- |
| D502 |
Middle 75mm |
- |
| D503 |
Short 65mm |
- |
| Schanz Pin |
| Diameter(mm) 2.0 |
Specification(mm) screw length/thread length |
- |
Material: Aluminum
Surface Finished: Black or according to customers' requirements
Remark: Customized service is available
Certificate: CE & ISO
Main Advantages
✓ Less damage to the blood supply of the bone
✓ Minimal interference with soft-tissue cover
✓ Rapid application in an emergency situation
✓ Stabilization of open and contaminated fractures
✓ Fracture reduction and stable fixation adjustable without surgery
✓ Good solution in situations with high risk of infection; requires less surgical skill
✓ Bone transport and deformity correction possible
Frequently Asked Questions
Q1: What are the primary applications for the Mini Horizontal External Fixator?
A1: It is primarily used for patients with fractures of the limbs, including open fractures, severely comminuted fractures, and cases with serious soft tissue damage.
Q2: What materials is this orthopedic device made of?
A2: The main materials include high-quality Aluminum Alloy, Steel, and in some configurations, Peek material for specialized surgical needs.
Q3: Does the device come in different sizes?
A3: Yes, it is available in three standard lengths: Long (85mm), Middle (75mm), and Short (65mm) to suit various clinical requirements.
Q4: Is it possible to get a customized version of this fixator?
A4: Yes, customized services are available. The surface finish can be provided in black or other colors according to specific customer requirements.
Q5: What are the clinical benefits of using this external fixation system?
A5: It offers rapid application in emergencies, causes minimal interference with soft tissue, preserves bone blood supply, and allows for adjustable stable fixation without further surgery.
Q6: What certifications does the product hold?
A6: This product is fully compliant with international standards and holds CE, FDA, and ISO13485 certifications.
