Orthopedic Tool Sports Medicine Orthopedic Instrument Set Suture Anchor

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

🔹 Basic Information

Model NO.

TY-SA

Material

Steel / Titanium Alloy

Feature

Reusable

Certification

CE, ISO13485

Group

Adult

Instrument Class

Class II

Warranty

1 Year

Package

Sterile Package

Rated Voltage

100V-240V

HS Code

9021100000

📦 Product Description

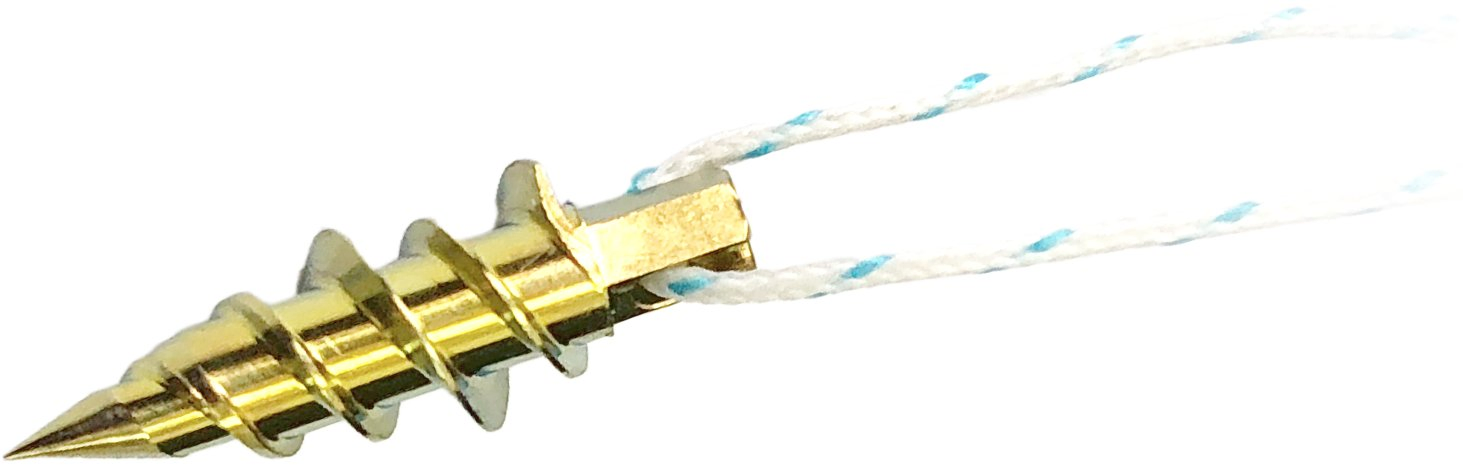

Suture Anchor For Joint Tendon Repair: A suture anchor is a precision-engineered small implant designed to fix sutures into the bone, effectively reconnecting soft tissue to bone structures. These fully threaded anchors feature suture holes through the center, providing exceptional flexibility for working sutures during surgical procedures.

Designed to reduce bone removal during the guide hole creation process without compromising pullout strength.

📊 Product Specifications

Model	Anchor Details (mm)			Suture
Model	External Diameter	Anchor Length	Total Length	Specification
T20-φ2.0x7.5	φ2.0	7.5	184.3	2 0# sutures
T12-φ2.8x11.5	φ2.8	11.5	251.4	1 2# suture
T22-φ3.5x12	φ3.5	12	255.2	2 2# sutures
T22-φ5.0x15.5	φ5.0	15.5	257.5	2 2# sutures
T22-φ6.5x16.3	φ6.5	16.3	260.7	2 2# sutures

💡 Product Advantages

Hexagon Drive Provides easy operation and multi-angle implantation. More flexible and allows for secondary implantation if needed during surgery.

Optimized Suture Hole The edge design of the suture hole on the anchor head reduces friction during surgery, protecting the integrity of the suture.

Advanced Material Constructed from high-grade Titanium alloy for excellent biocompatibility and long-term stability.

Sharp Head Design Engineered for easier implantation without the absolute necessity of pre-drilling in many clinical scenarios.

Double Thread Design High and low double thread configuration ensures stronger torsional strength and superior pull-out resistance.

🩺 Medical & Technical Tips

Scope of Use: Suture Anchors are vital surgical implants used for attaching soft tissues to bone, specifically for ruptured tendons and ligaments. They consist of the anchor body, the suture material, and the eyelet interface.

Suture Composition: The sutures are crafted from ultra-high molecular weight polyethylene and polyester composite braid. This combination offers superior mechanical properties, a better tactile feel, and more convenient handling for the surgeon.

❓ Frequently Asked Questions

1. What are the warranty terms for these medical instruments? We offer a comprehensive 1-year warranty. Within the first month, we guarantee exchange or return for quality issues. After one year, we provide maintenance at cost for parts and shipping.

2. Is pre-drilling required for the anchor implantation? Due to the sharp anchor head design, it is designed for easier implantation and may reduce the need for pre-drilling compared to traditional anchors.

3. What makes the double thread design superior? The high and low double thread design provides stronger torsional strength and significantly higher pull-out resistance while shortening the screw-in time during surgery.

4. Are the materials used biocompatible? Yes, the anchors are made from Titanium alloy, which is renowned for its excellent biocompatibility in orthopedic and sports medicine applications.

5. What is the composition of the suture material? The suture is made of an ultra-high molecular weight polyethylene and polyester composite braid, providing high mechanical strength and excellent handling properties.

6. How is the product priced compared to major brands? Our pricing reflects a balance between high-quality manufacturing and market competitiveness. We focus on providing a win-win solution where product quality matches the investment.
