Grai Orthopedic Implants
Grai Orthopedic Implants

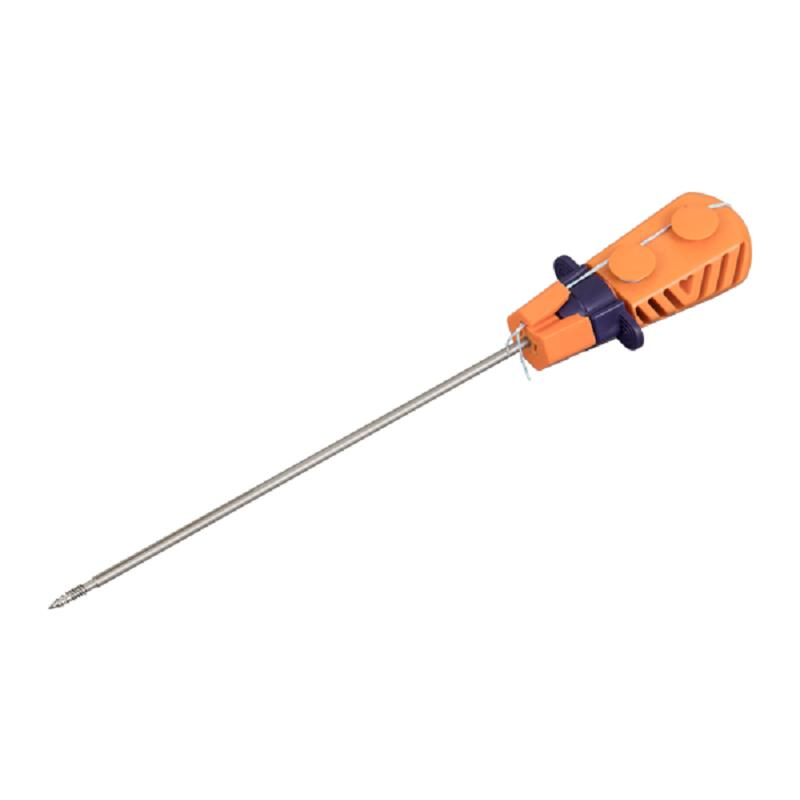

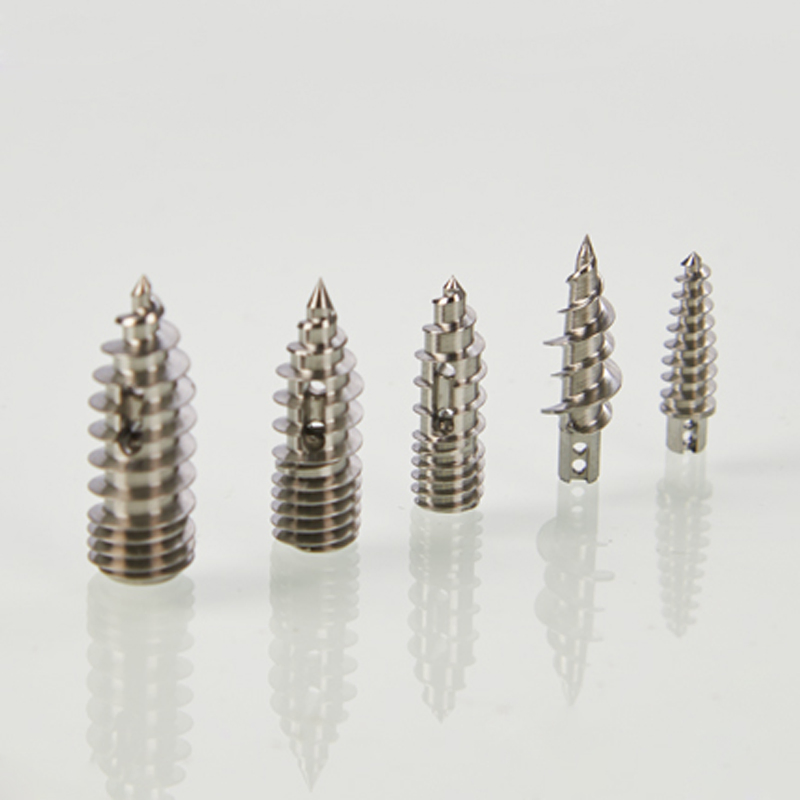

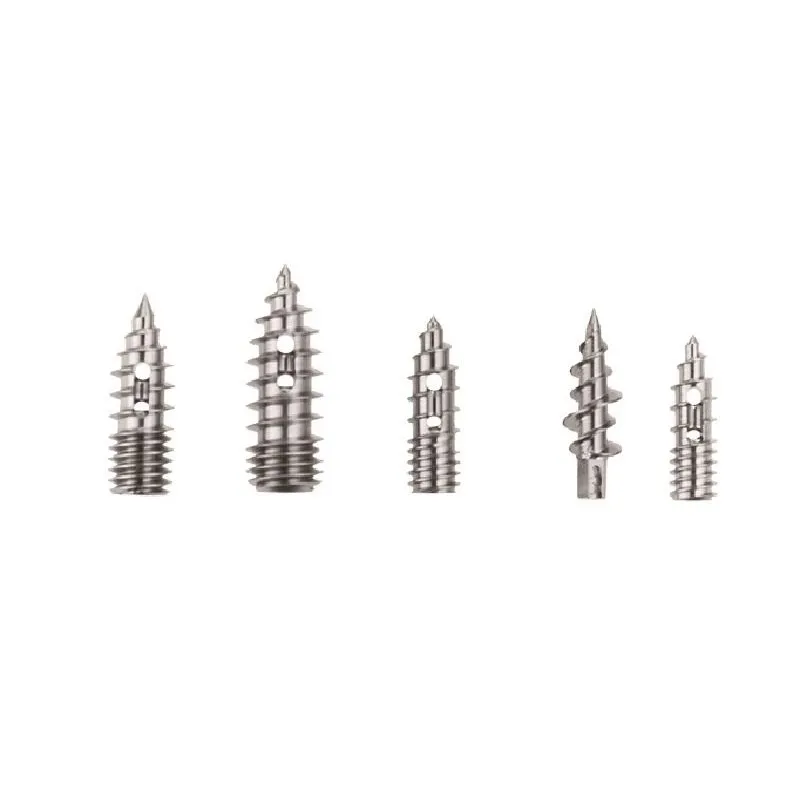

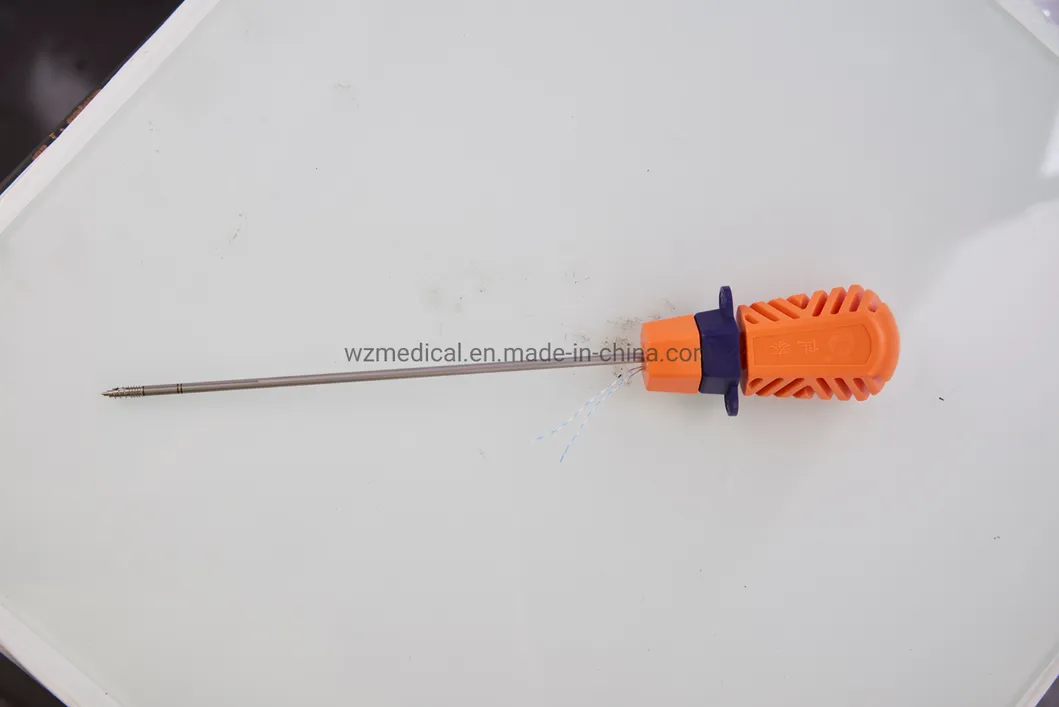

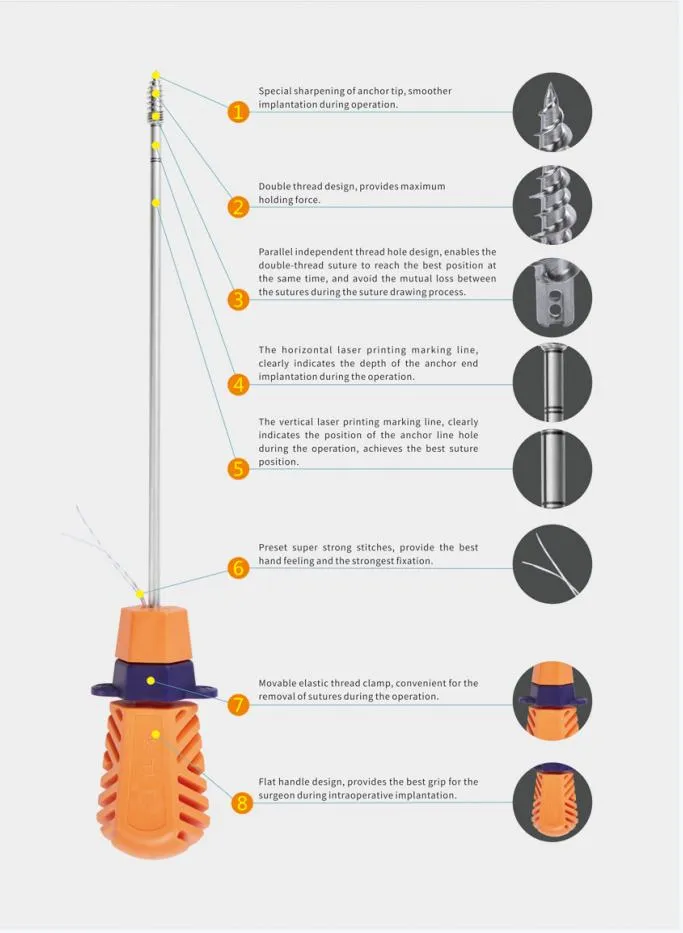

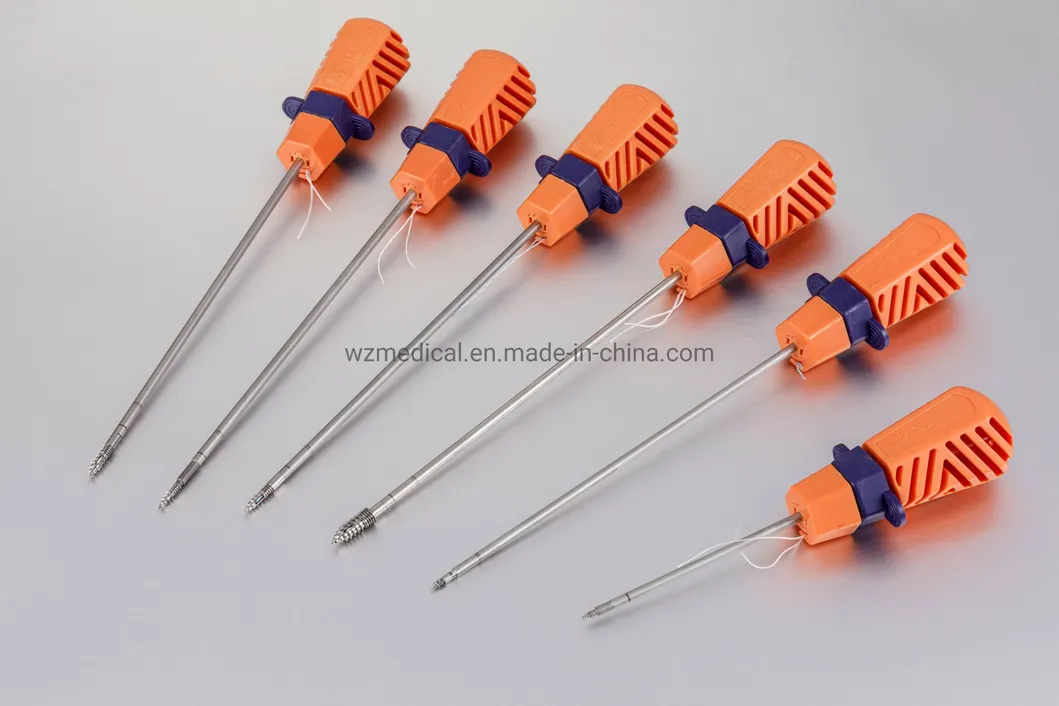

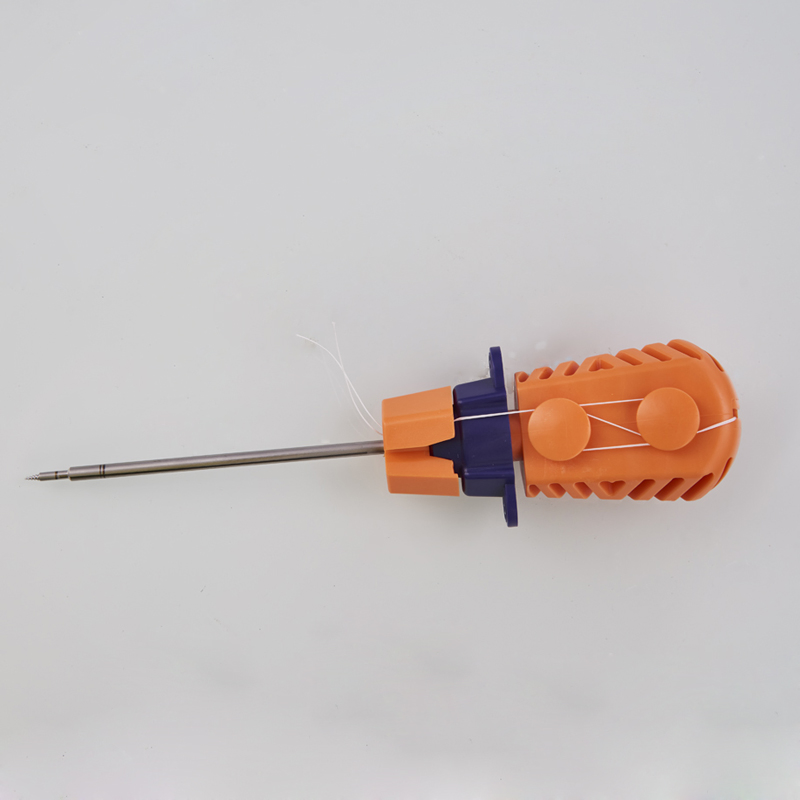

Suture Anchor System consists of an anchor, nonabsorbable suture, and inserter. The anchor is manufactured from Ti6Al4V alloy, meeting ISO5832-3:2016 standards. The suture is crafted from ultra-high molecular weight polyethylene (UHMWPE) material without coating, woven from multiple UHMWPE yarns to meet ASTM F2848-17 requirements.

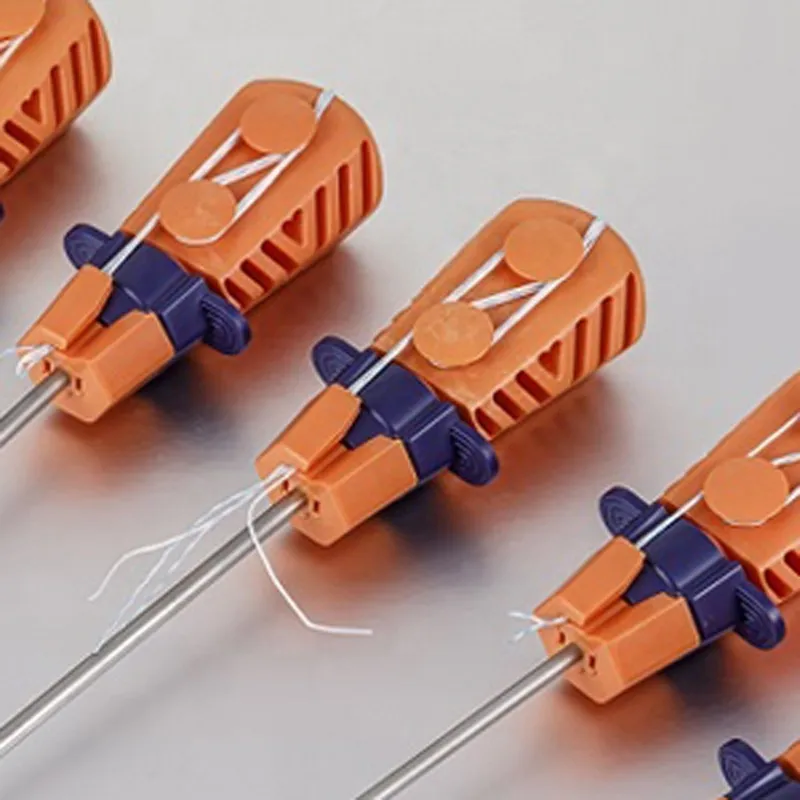

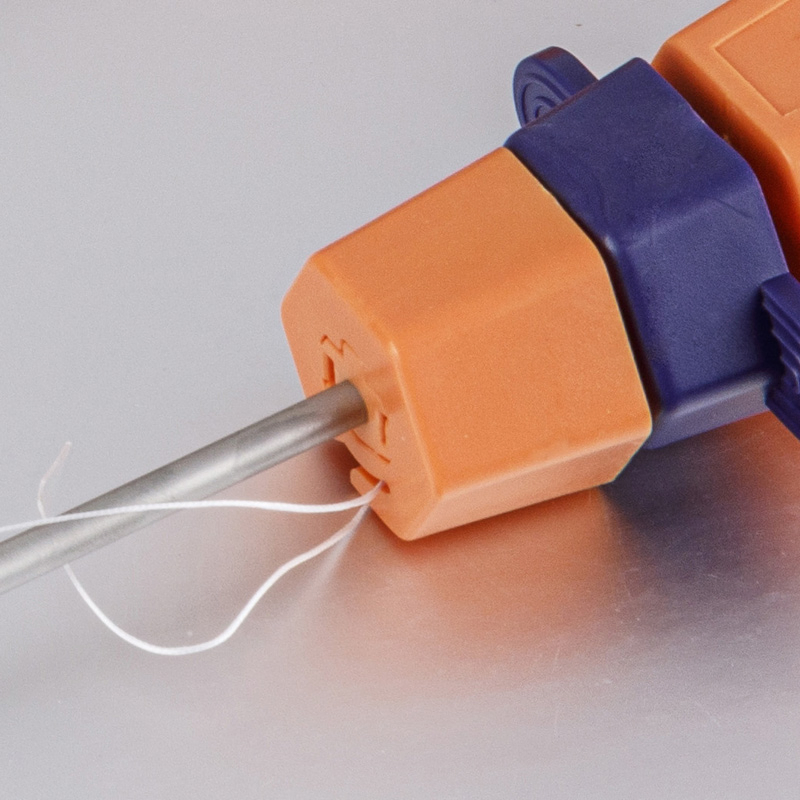

The blue suture is derived from white UHMWPE dyed with FDA-approved blue material (code 73.1015). The portion of the inserter in contact with the human body is made of stainless steel conforming to ASTM F899-12b, while the handle is constructed from polycarbonate and ABS material.
| Property Item | Technical Value |
|---|---|
| Properties | Implant Materials & Artificial Organs |
| Model Number | WZ-MDT-S-01 |
| Instrument Classification | Class II |
| Warranty | 1 Year (Technical) / 3 Years (Shelf life) |
| Product Name | Suture Anchor System |
| Material | Titanium Alloy |
| Color | Silver + Orange |
| Specification | Diameter 1.8 x 6mm |
| Certificate | CE |

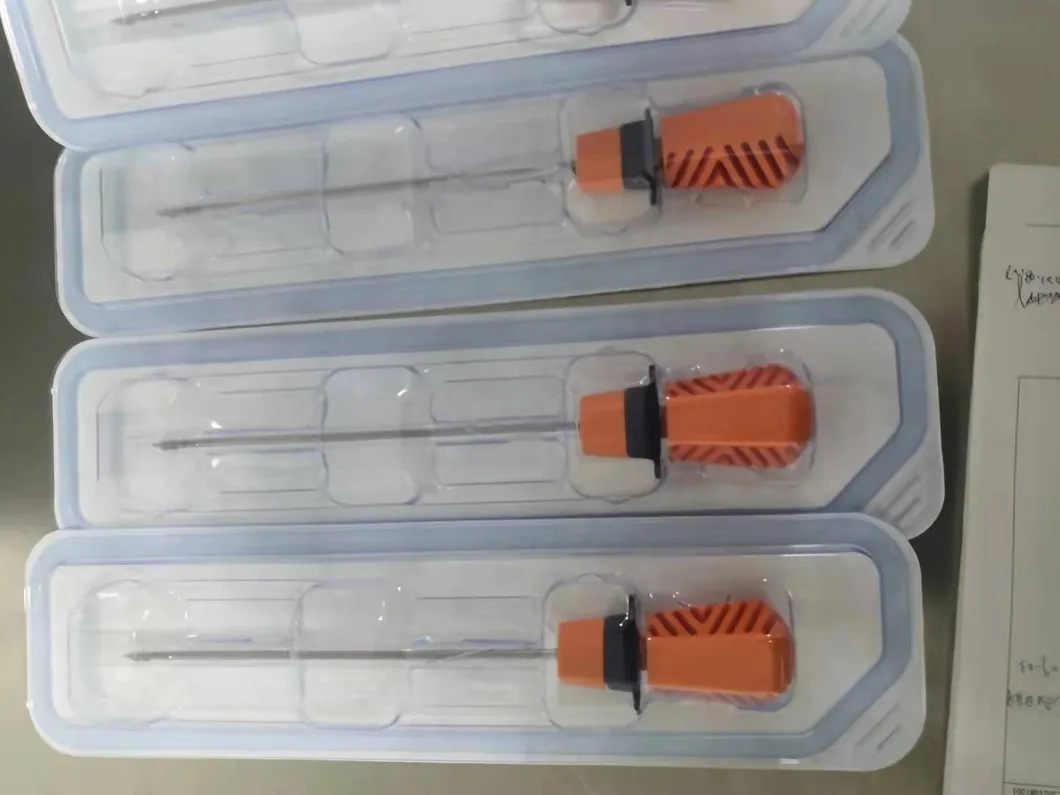

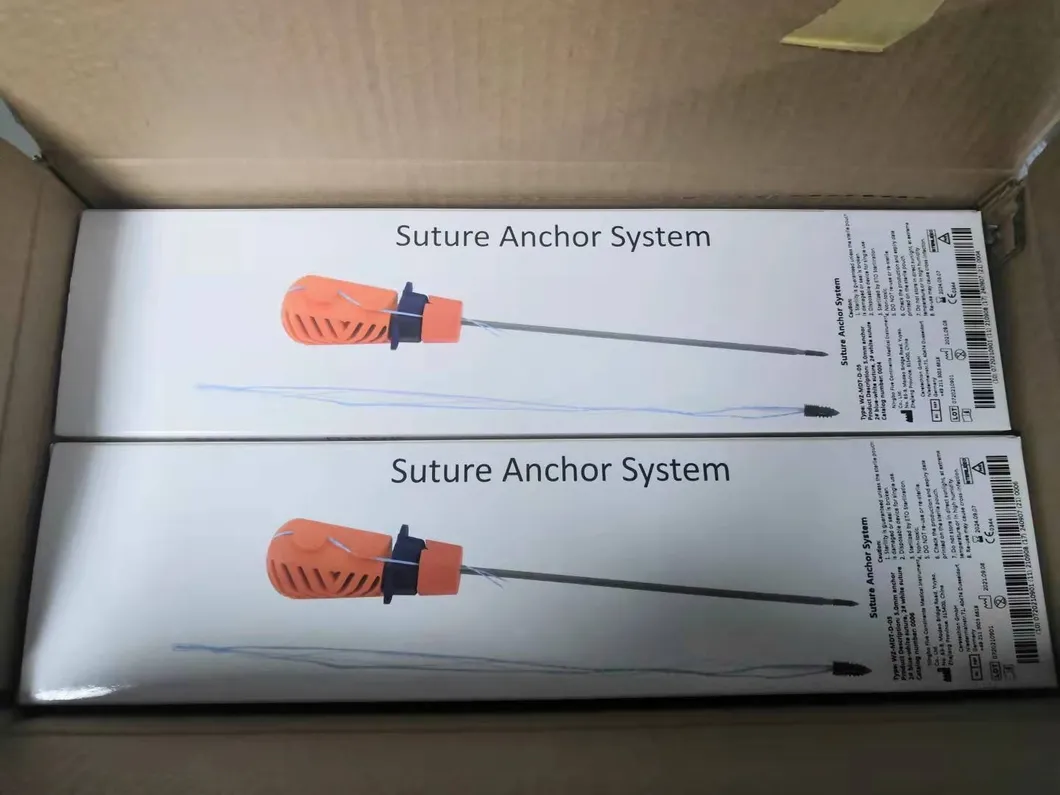

| Package | Sterile Packaging 1pc/package |
| Usage | Orthopedic Surgery |

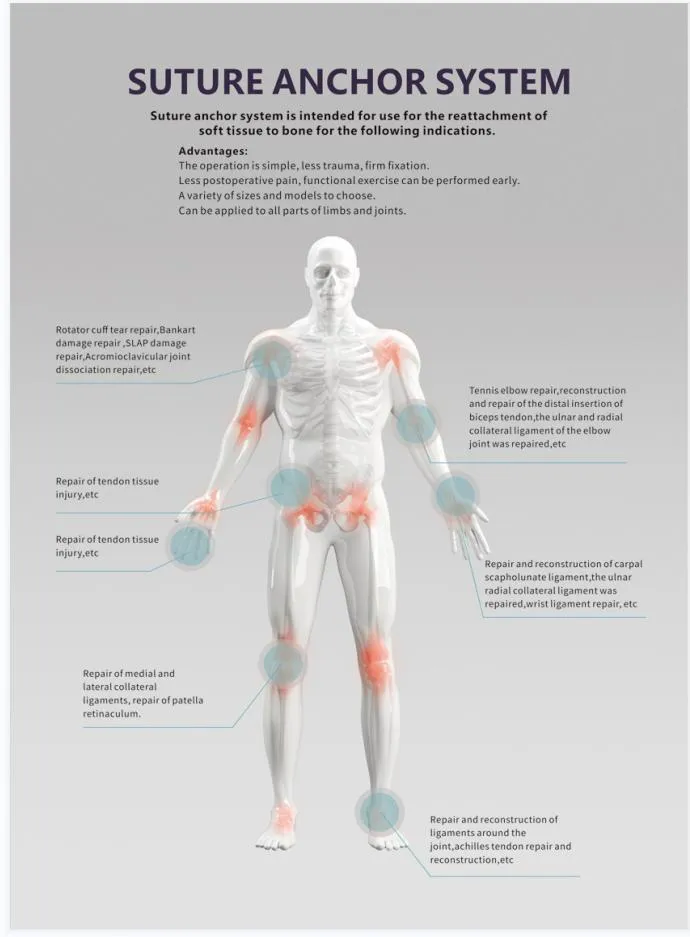

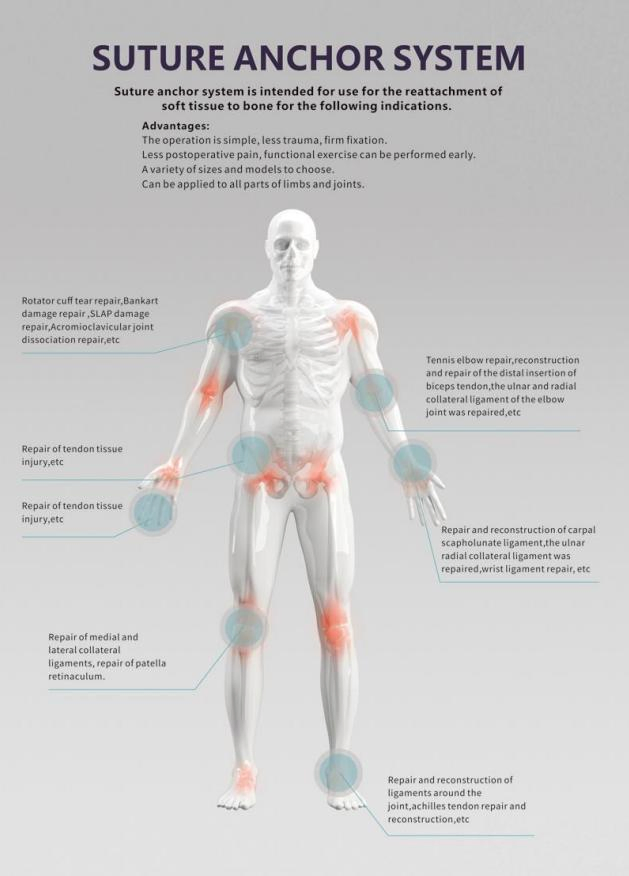

| Application | Implantology / Sports Medicine |
