Stainless Steel Bone Fixator for Orthopedic Surgery

1 / 5

Stainless Steel Bone Fixator for Orthopedic Surgery

Customization:	Available
Application:	Orthopedic, Neurosurgery, Microsurgery
Material:	Steel

Send Inquiry

Product Description

Basic Specifications

Model NO.

External Fixation

Feature

Reusable

Certification

CE, ISO13485

Color

White & Black

Usage

Bone Fixation

Material Type

Titanium Alloy & Stainless Steel

Name

External Fixator

Transport Package

Box

Specification

50*50*50CM

Origin

China

HS Code

90211000

Production Capacity

500,000 Pieces/Year

Product Overview

External Fixator-- Modular Fixation External Fixation System

◈Engineered with cutting-edge technology for unparalleled ease of use.

◈Allows independent arrangement of bone screws for both proximal and distal fractures.

◈Snap-fit design for streamlined operation, significantly reducing time and effort.

◈Utilize medical-grade aluminum carbon fiber to enhance the clarity of fracture vision.

◈Provides optimal stability and flexibility for superior performance.

◈Designed to address complex fractures and soft tissue loss.

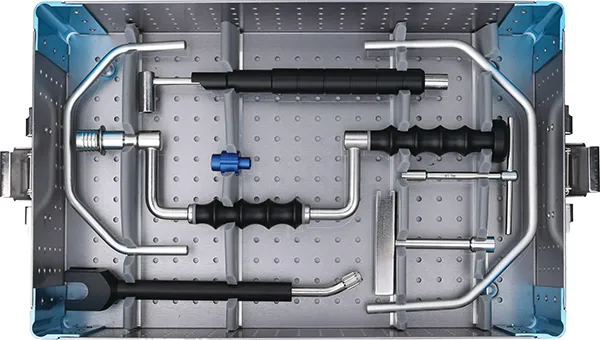

System Components & Instruments

Component Description	Specification	Qty

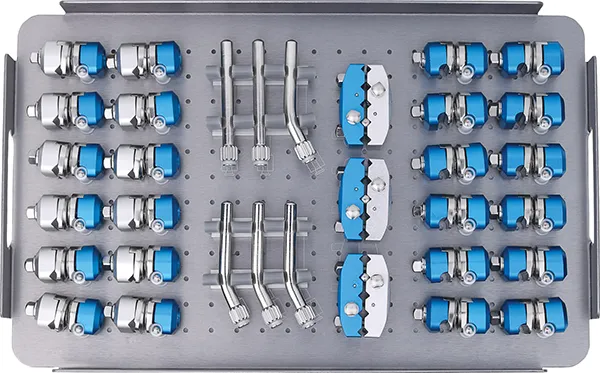

Pin To Rod Coupling	φ8/4-5	12
Rod To Rod Coupling	φ8/8	12
5-Hole Pin Clamp	φ8/5	3
Straight Post / 30° Post	φ8	2 / 4

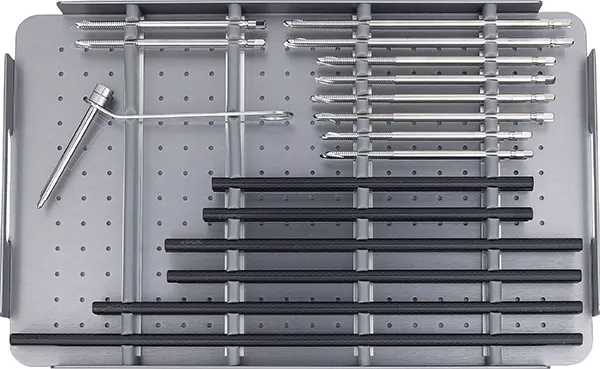

Self Drilling/Self Tapping Bone Screws	φ5*120/130/150/180	Various
Carbon Fibre Rod	φ8*200/250/300/350	Various
Semi-Circular Curved Connecting Rod	φ8*160/200	1
T-Wrench / Torque Wrench	#7	1
Stabilization/Reduction Wrench	#22	1

Application Configurations

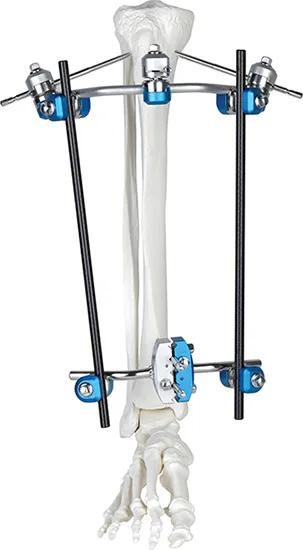

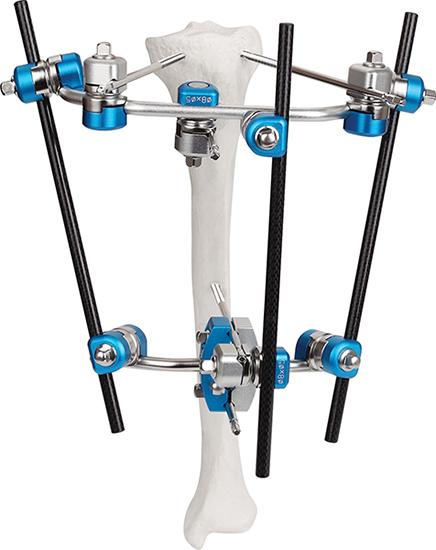

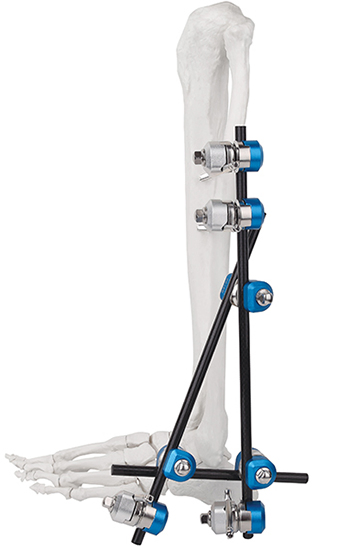

Proximal Tibia Configuration:

Rod to Rod Coupling φ8/8 (4 Pcs)
Pin To Rod Coupling φ8/4-5 (3 Pcs)
5-Hole Pin Clamp & 30° Post
Carbon Fibre Rods & Curved Rod

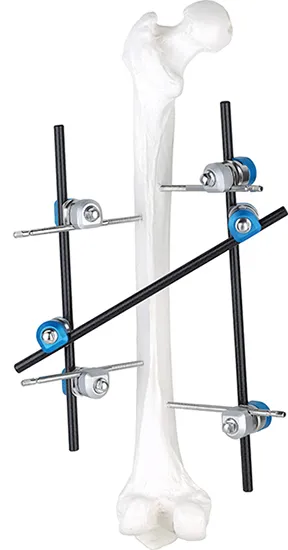

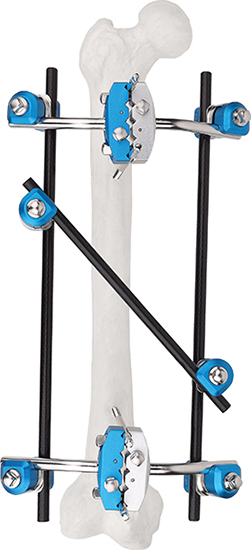

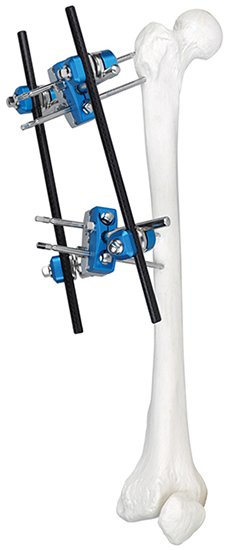

Femoral Shaft Fixator:

Pin To Rod Coupling φ8/4-5 (4 Pcs)
Carbon Fibre Rods 8*200/250mm
Bone Screws 5*150mm (4 Pcs)

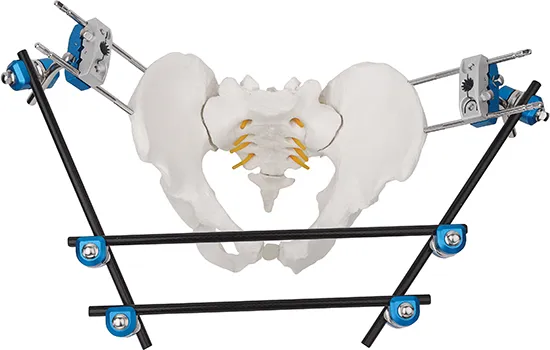

Pelvic Fixator Configuration:

Rod To Rod Coupling (6 Pcs)
5-Hole Pin Clamp & 30° Post (2 Pcs each)
Specifically used for Pelvic reduction

Frequently Asked Questions

Q1: What materials are used in the External Fixation system? The system utilizes medical-grade Titanium Alloy and Stainless Steel for primary components, with Carbon Fibre rods to ensure strength, durability, and radiolucency.

Q2: Is the external fixator system reusable? Yes, the system is designed to be reusable after proper sterilization and inspection according to medical standards.

Q3: How does the snap-fit design benefit the surgical process? The snap-fit design allows for a more streamlined and intuitive operation, significantly reducing the time required for assembly and adjustment during surgery.

Q4: Can bone screws be placed independently? Yes, the modular system allows for the independent arrangement of bone screws, providing surgeons with the flexibility to address specific proximal and distal fracture patterns.

Q5: Does the system provide clear visibility under X-ray? By utilizing medical-grade aluminum and carbon fiber rods, the system minimizes interference, providing enhanced clarity for fracture vision and monitoring.

Q6: What certifications does this medical device hold? The product is fully certified with CE and ISO13485 standards, ensuring it meets international quality and safety requirements for orthopedic surgery.
