Product Description

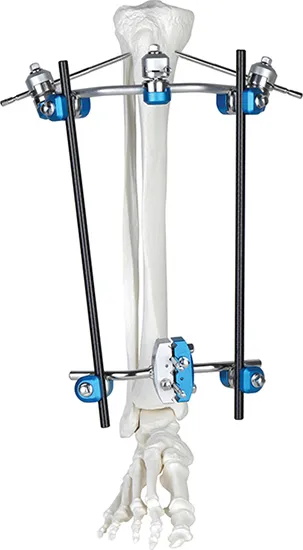

External Fixator -- Modular Fixation External Fixation System
Product Features
- Characterized by cutting-edge technology, ensuring ease of use and efficiency.
- Allows for the independent placement of bone screws in both proximal and distal fractures.
- Incorporates a snap-fit design, facilitating smoother operations and reducing time requirements.
- Enhances fracture visibility using high-quality medical aluminum carbon fiber.
- Provides exceptional stability and optimal elasticity.
- Ensures a compact and streamlined frame construction.
- Designed to address the complexity of fractures and soft tissue loss.
- Offers simplicity and effective functionality.
Technical Specifications

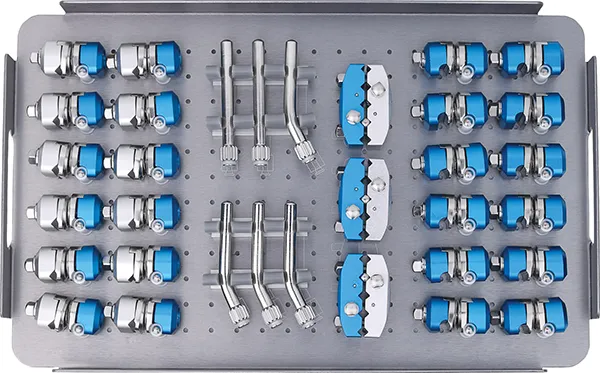

| Component Name |
Size/Specification |
Quantity |
| Pin To Rod Coupling | φ8/4-5 | 12 |
| Rod To Rod Coupling | φ8/8 | 12 |
| 5-Hole Pin Clamp | φ8/5 | 3 |
| Straight Post | φ8 | 2 |
| 30° Post | φ8 | 4 |
| Self Drilling/Self Tapping Bone Screws | φ5*180 / 150 / 130 / 120 | 20 Total |
| Guides | φ4/5 | 1 |
| Carbon Fibre Rod | φ8*350 / 300 / 250 / 200 | 12 Total |
| Semi-Circular Curved Connecting Rod | φ8*160 / 200 | 2 |

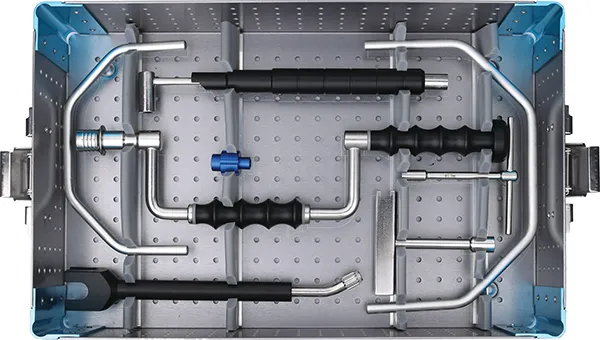

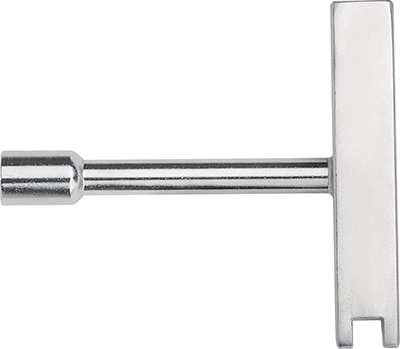

| Wrench Set (T-Wrench, Reduction, Torque) | #7 / #22 | 3 |
| Manual Tools (Hand Drill, Screw Driver) | φ5 | 2 |

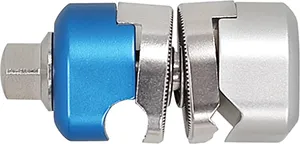

Anti Pin To Rod Coupling
Size: φ8/4-5
Material: Stainless Steel, Aluminum

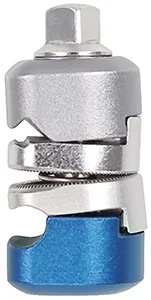

Pin To Rod Coupling
Size: φ8/4-5
Material: Stainless Steel, Aluminum

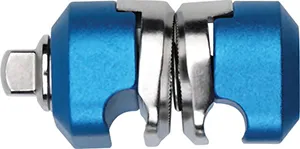

Rod To Rod Coupling
Size: φ8/8
Material: Stainless Steel, Aluminum

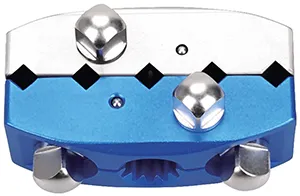

5-Hole Pin Clamp
Size: φ8/5
Material: Stainless Steel, Aluminum
Straight Post
Size: φ8
Material: Stainless Steel

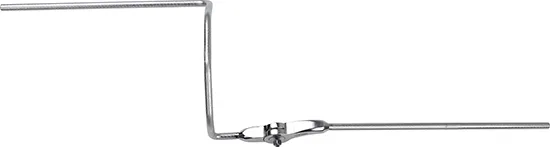

Knee Joint Mobilizer
Size: φ8
Material: Stainless Steel
Frequently Asked Questions
Q1: What are the primary applications of this External Fixator?
A1: It is primarily used for bone fixation in complex fractures, modular fixation for proximal and distal fractures, and cases involving soft tissue loss.
Q2: What materials are used in the construction of this system?
A2: The system utilizes high-quality medical aluminum, carbon fiber for the rods, and titanium alloy or stainless steel for the pins and couplings.
Q3: How does the snap-fit design benefit the surgical process?
A3: The snap-fit design allows for quicker assembly and adjustments during surgery, reducing the overall operation time and improving efficiency.
Q4: Are the components of the external fixation system reusable?
A4: Yes, the feature list specifies that the modular fixation system components are designed to be reusable after proper sterilization.
Q5: What certifications does this orthopedic instrument set carry?
A5: The product is fully certified with CE and ISO13485 standards, ensuring it meets international medical safety and quality requirements.
Q6: Why is carbon fiber used for the rods?
A6: Carbon fiber provides exceptional stability while remaining lightweight. It also offers better visibility under X-rays (radiolucency) compared to traditional metal rods.
