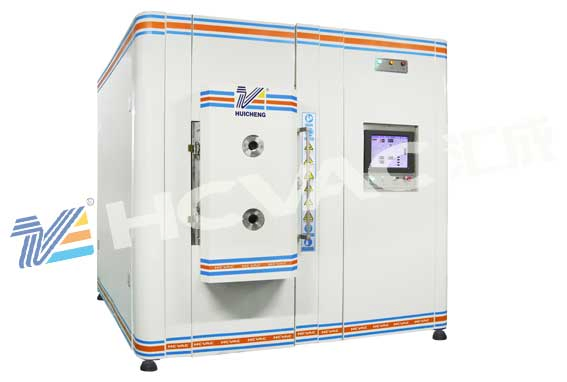

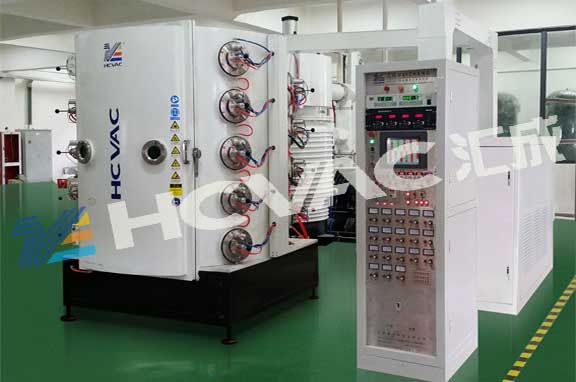

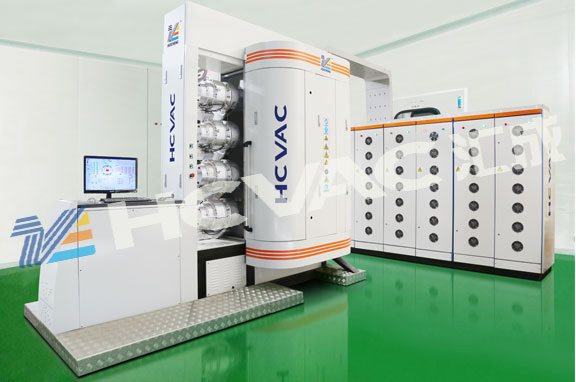

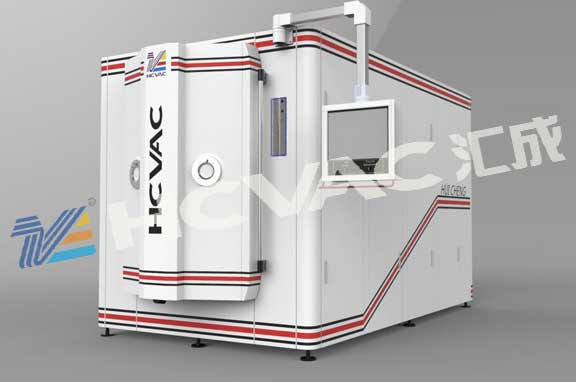

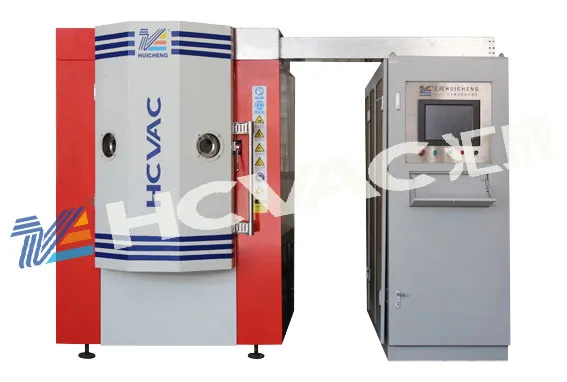

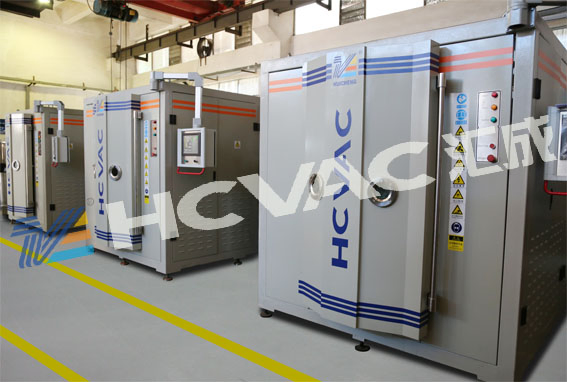

Titanium nitride gold PVD ion plating equipment, Vacuum gold plating system
PVD Ion plating equipment is a ion coating machine of efficiency, harmless and pollution-free. It has the features of fast deposition rate, great ionization rate, big ion energy, easy operation, low cost, and large productive capacity.
Characteristic: The principle of the electric arc integrates cold cathode arc discharge self-sustained light unite pulse technique and magnetron sputtering technology, thinning the particles to improve the properties of the film. It can coat on the surface of the metal as well as nonmetal.

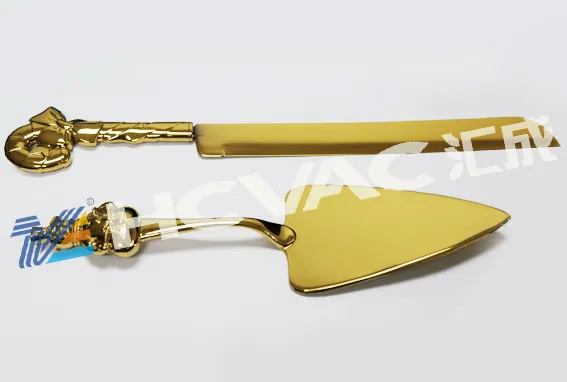

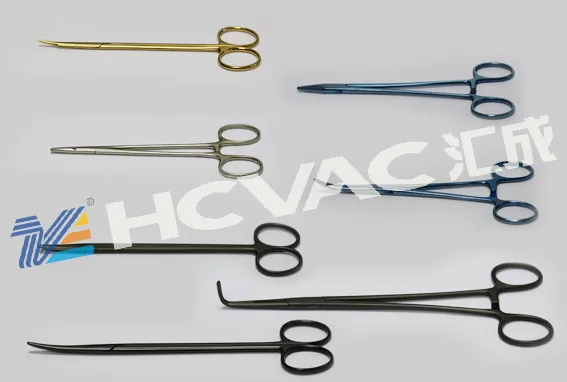

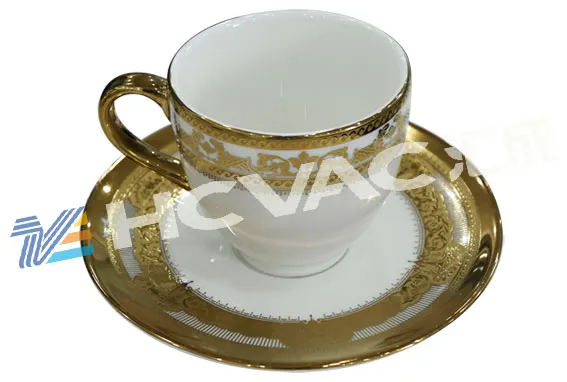

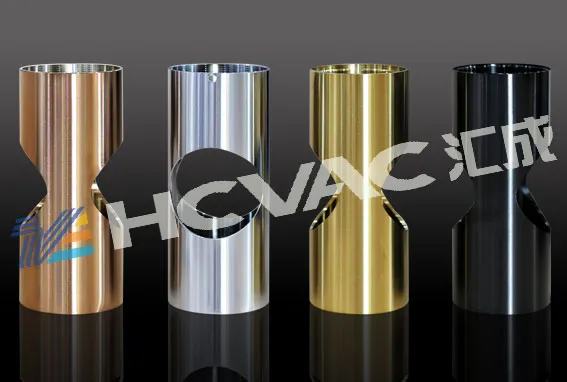

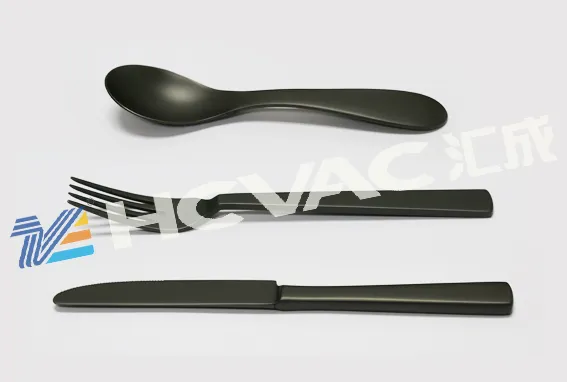

Applied Industry: This equipment is extensively used for ultra-hard coating on tools and moulds, decorative coating for car wheels, ceramics, golf equipment, watches, hotel products, sanitary ware, luminaires, optical frames, and hardware.
| Mode Dimension | LH-800 | LH-1250 | LH-1416 | LH-1618 |
|---|---|---|---|---|
| Chamber Size | 800*1000mm | 1200*1500mm | 1400*1600mm | 1600*1800mm |
| Main Configuration | Eight multi-arc targets | Twelve multi-arc targets | Fourteen multi-arc targets | Twenty multi-arc targets |
| Power Source | Electric-arc power, Filament power, Pulsed bias power supply | |||
| Process Gas Control | Mass flowmeter + Electromagnetic ceramic valve | |||
| Vacuum System | Molecule pump + Roots pump + Mechanical pump (5.0*10⁻⁵ Pa) / Diffusion pump options | |||
| Baking Temperature | Normal temperature to 350°C, PID control, radiation heating | |||
| Motion Mode | Public rotation Frequency control: 0-20 RPM | |||
