| Model NO. | SW-EG |
| Automatic Grade | Automatic |
| Warranty | 2 Years |
| Certification | CE, ISO |
| Key Selling Points | Competitive Price + Easy to Operate + Long Service Time |
| Weight (Kg) | 4500kg |
| Wire Diameter | 0.6mm-4.5mm |
| Zinc Coating Thickness | 10-30 G/M² |
| Number of Wires | 4-40 Wires or on Customer Needs |
| Annealing Method | On Line Annealing |

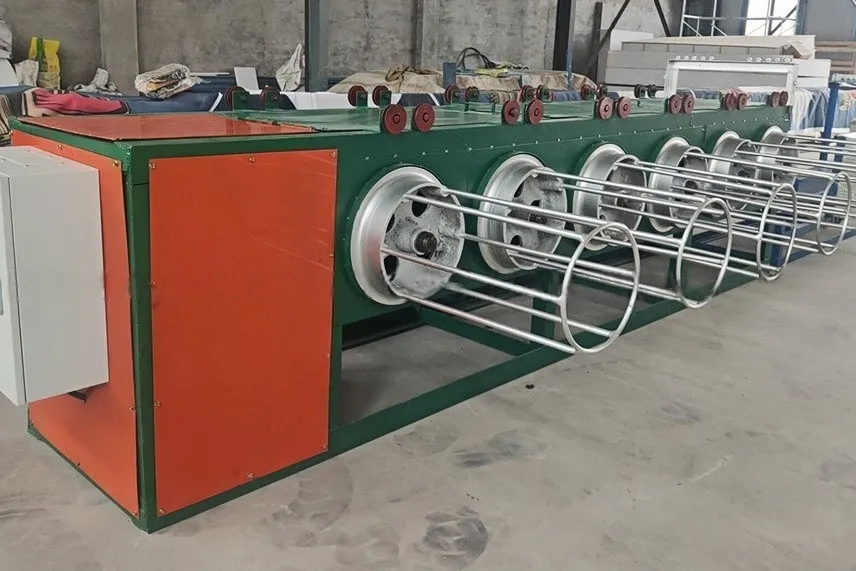

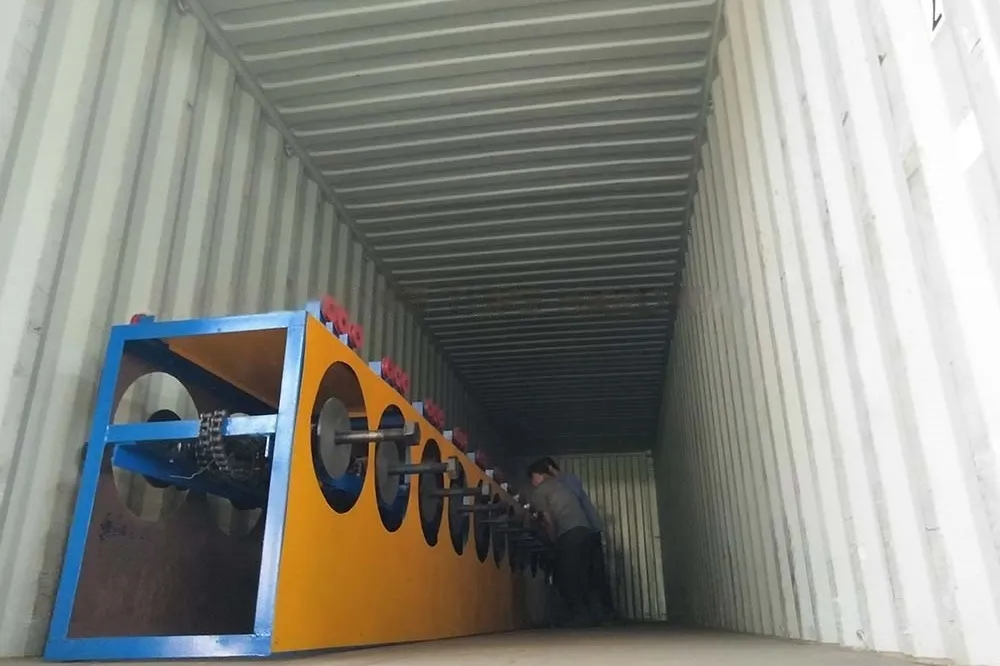

| Wire Take-up System | Trunk Coiler or Inverted Coils Type |
| Zinc Layer Control | Wipe System |
| Dry Wire System | Waste Heat Recovery |
| Pickling System | Smokeless Environmental Protection |

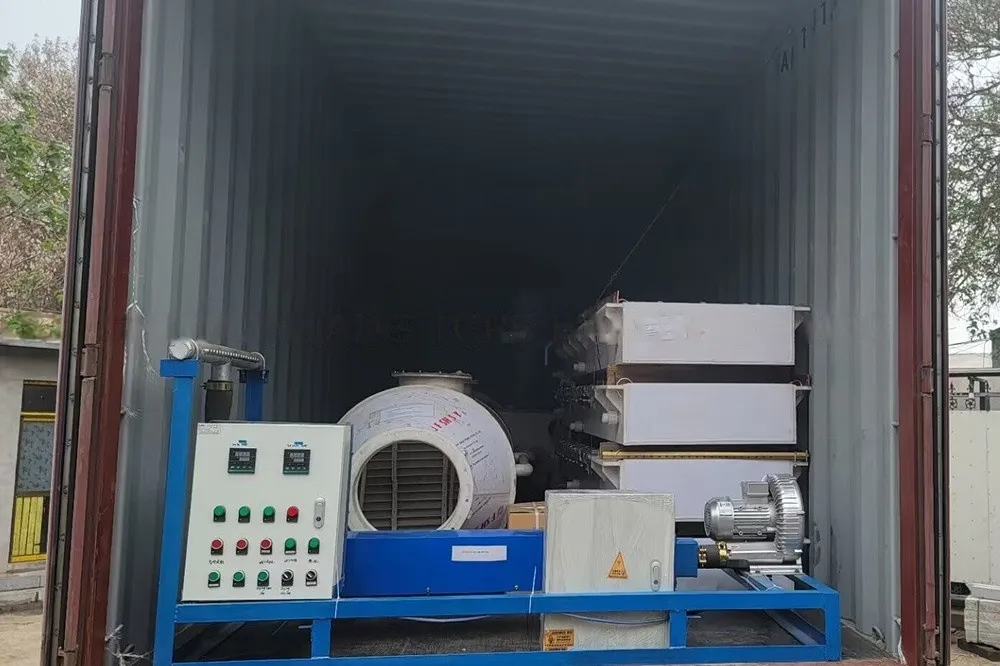

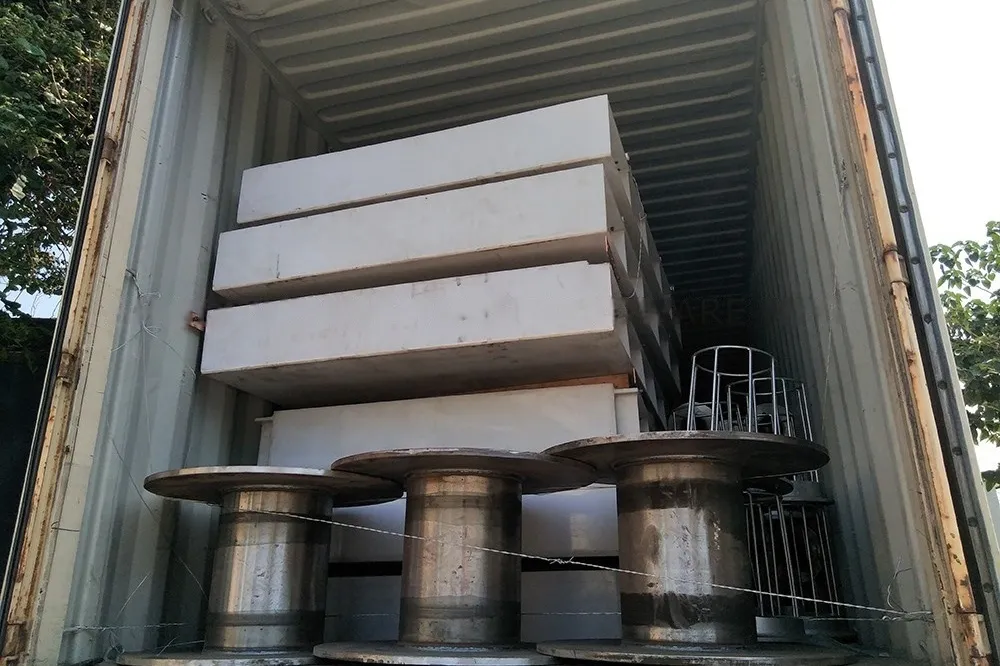

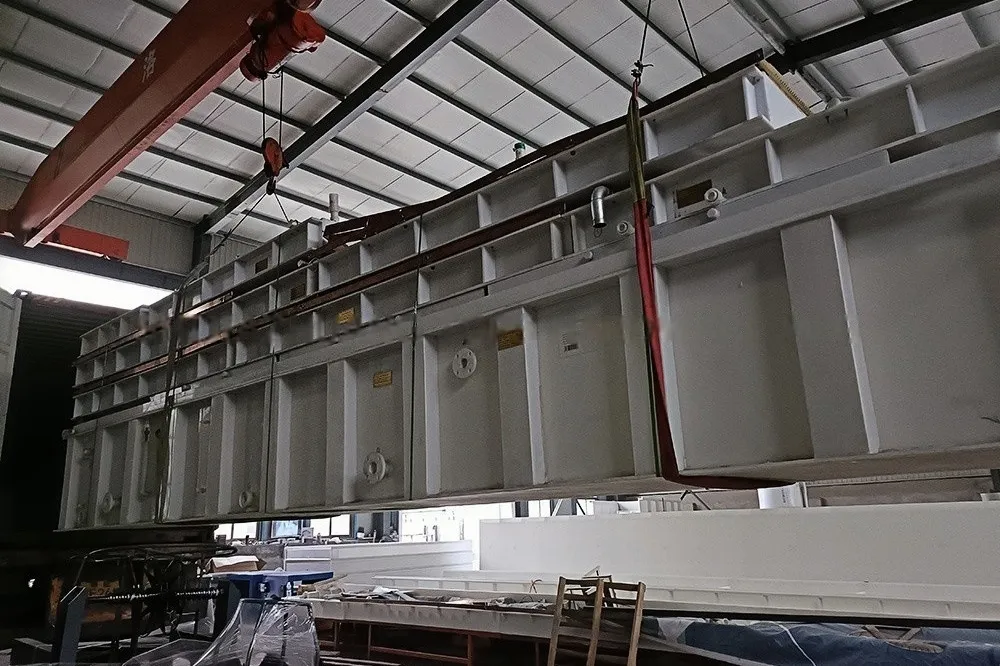

| Transport Package | Plastic Film & Wooden Box |

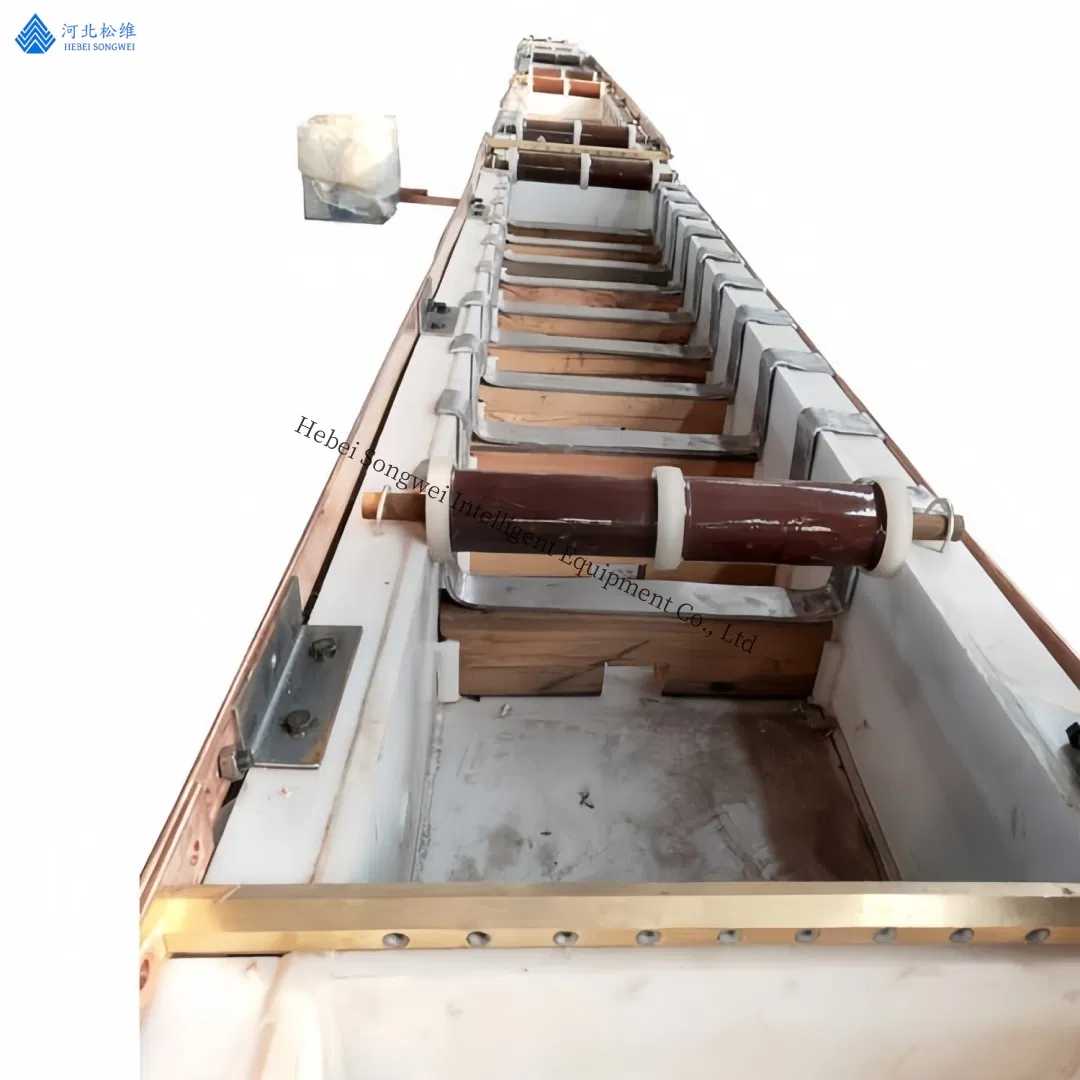

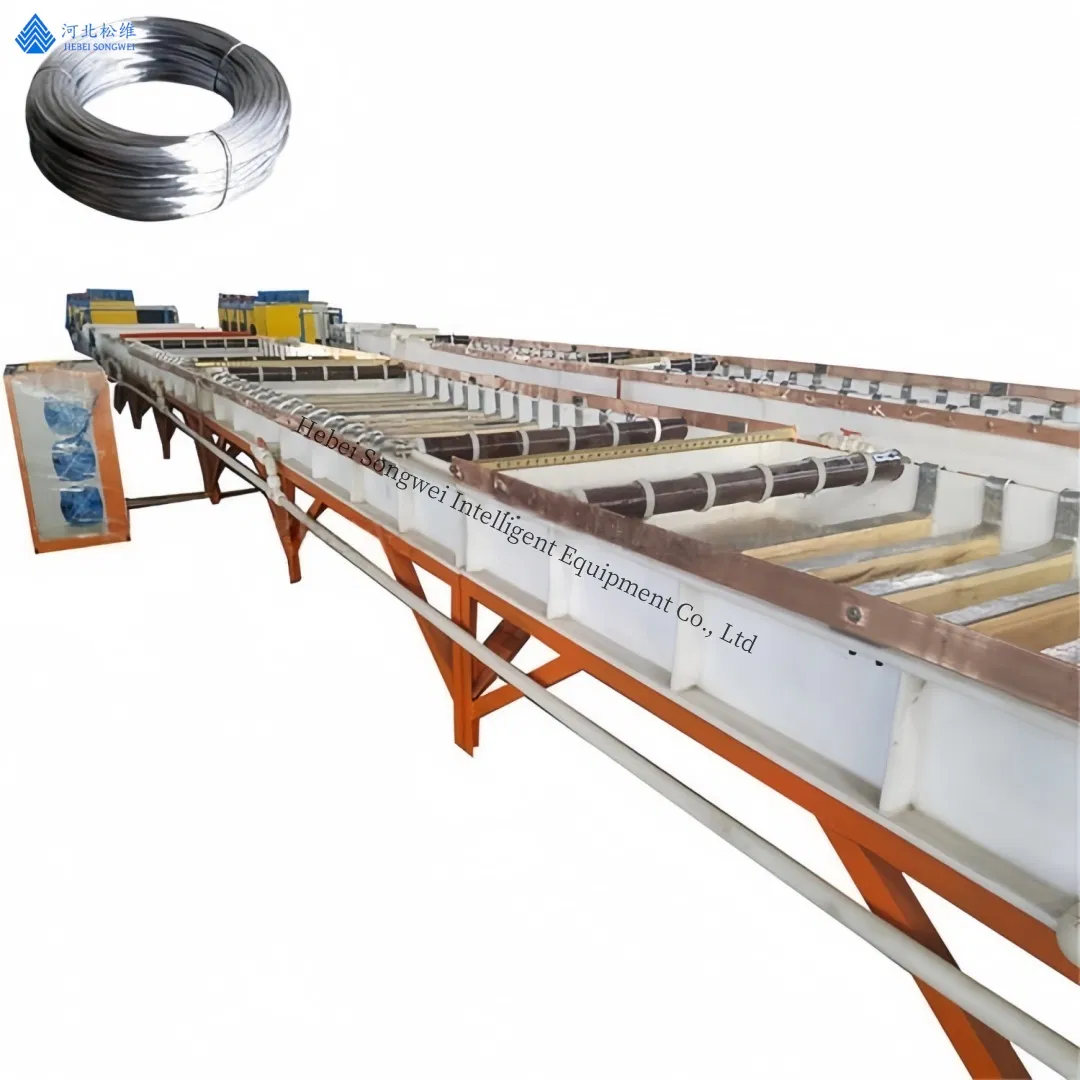

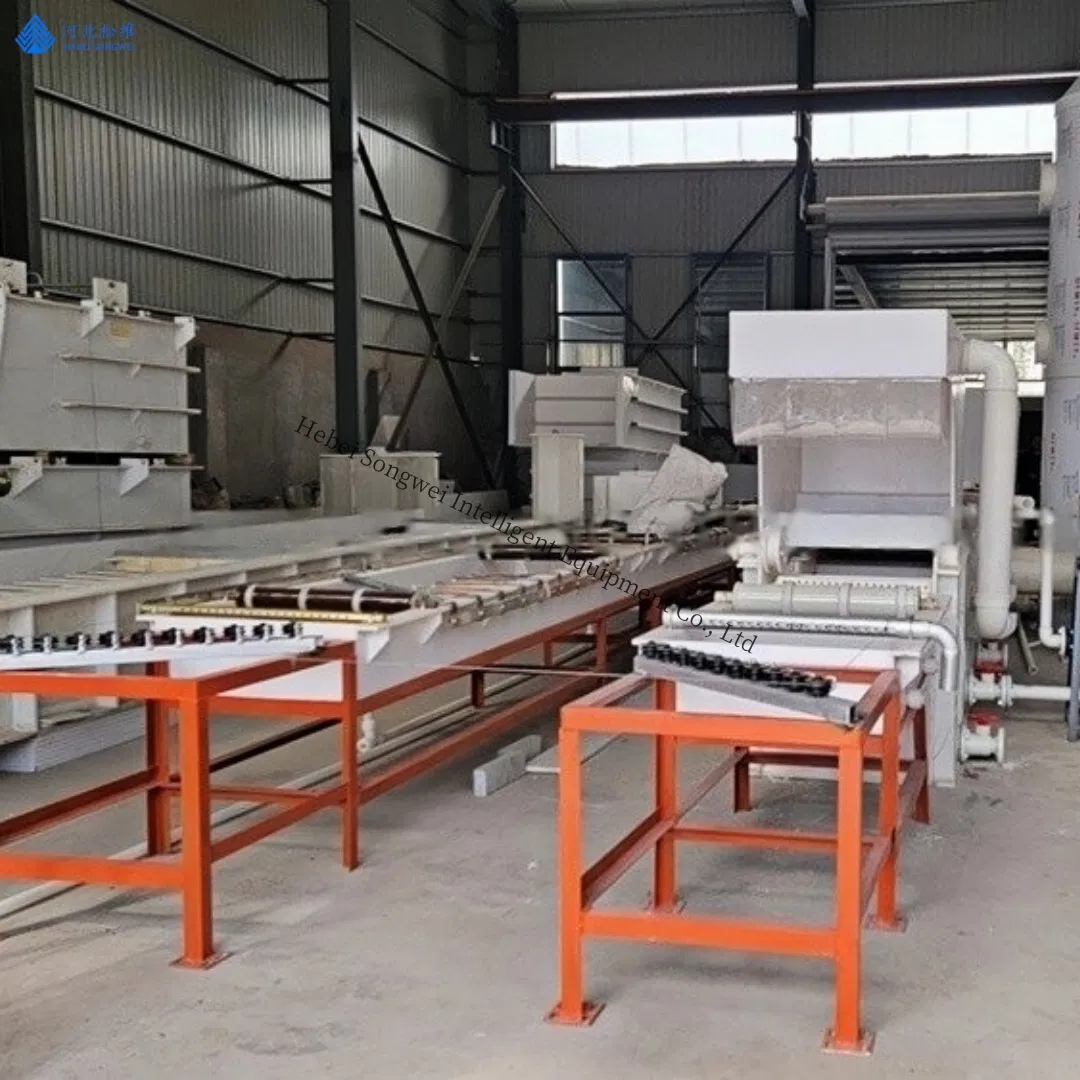

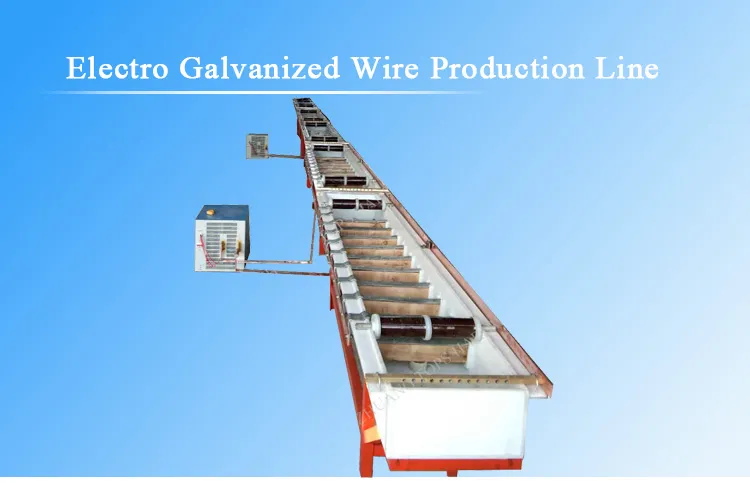

This production line is designed for zinc plating on black iron wire and black annealing wire. Utilizing advanced technology and a sealed acid pickling process, it ensures minimal acid odor and a high-quality finish. The resulting electro galvanized wire features a shining surface with no dezincification, ideal for construction, handicrafts, wire mesh, and highway fences.

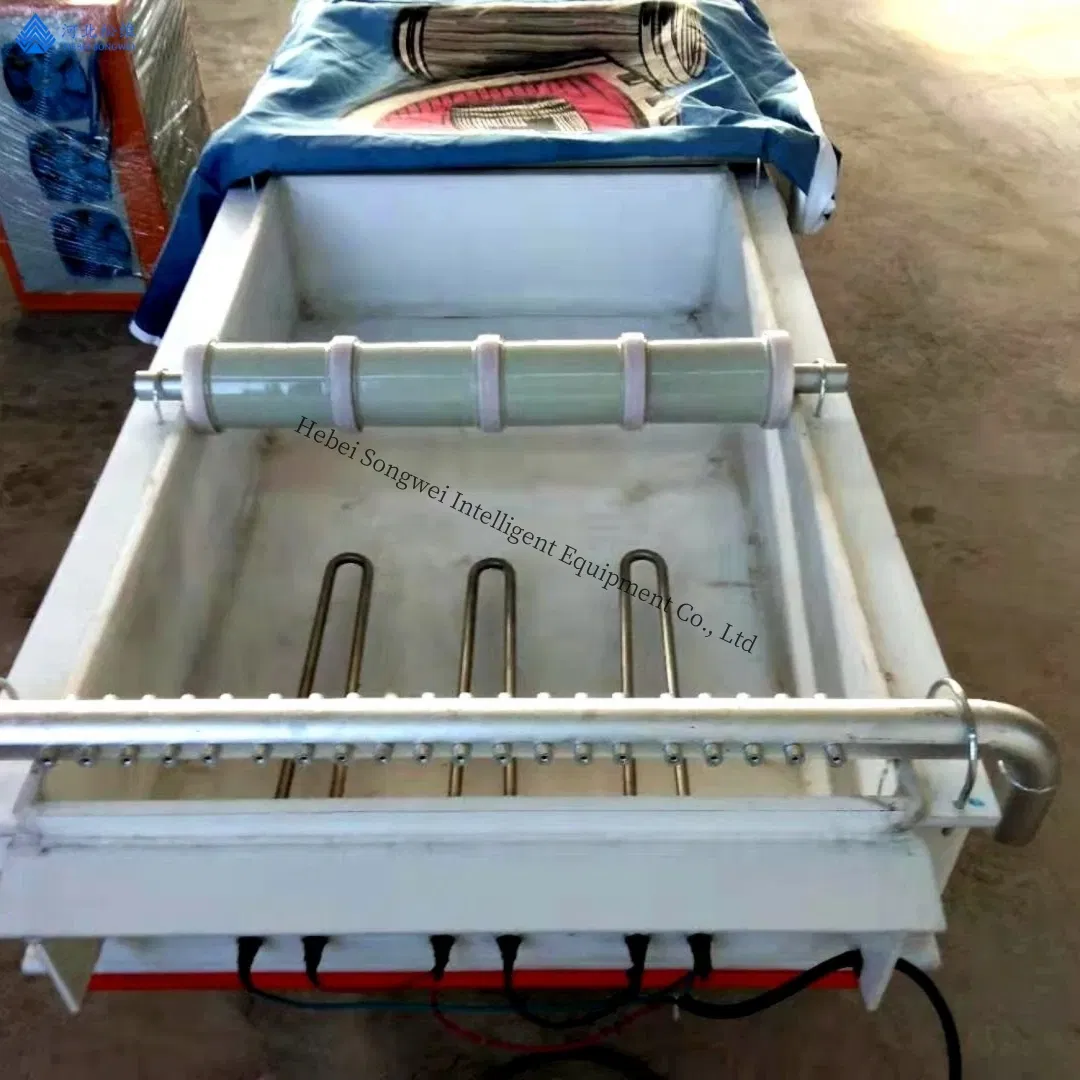

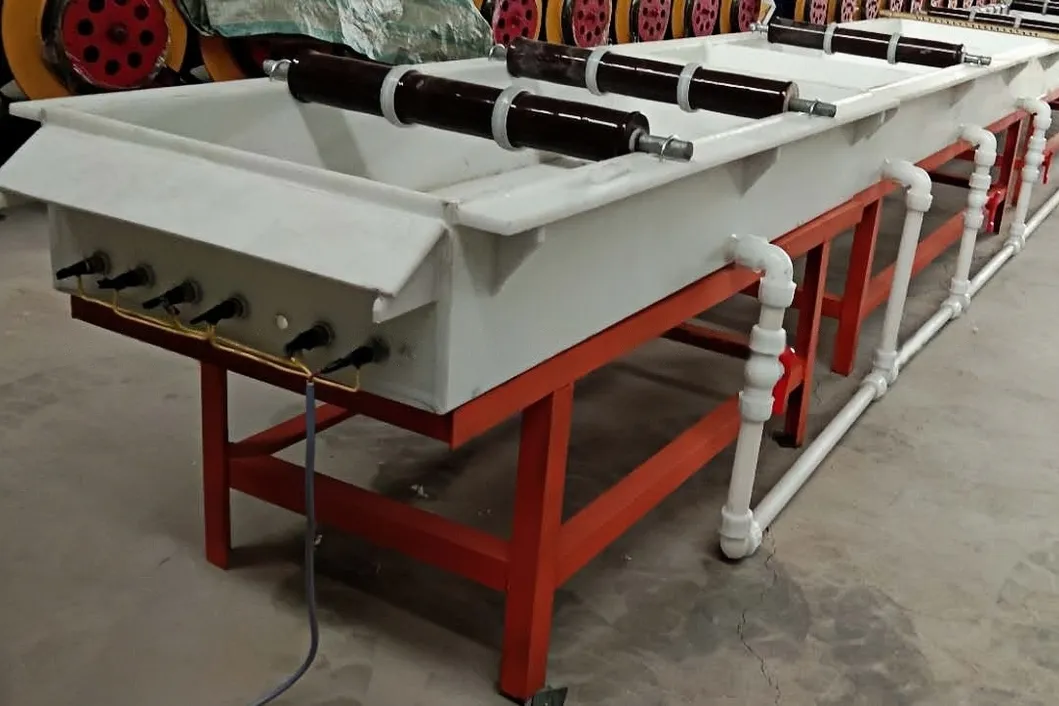

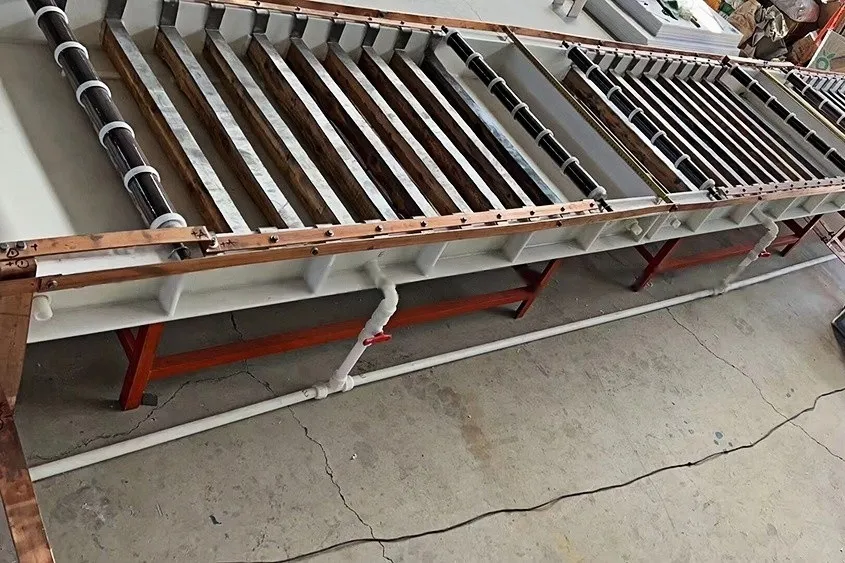

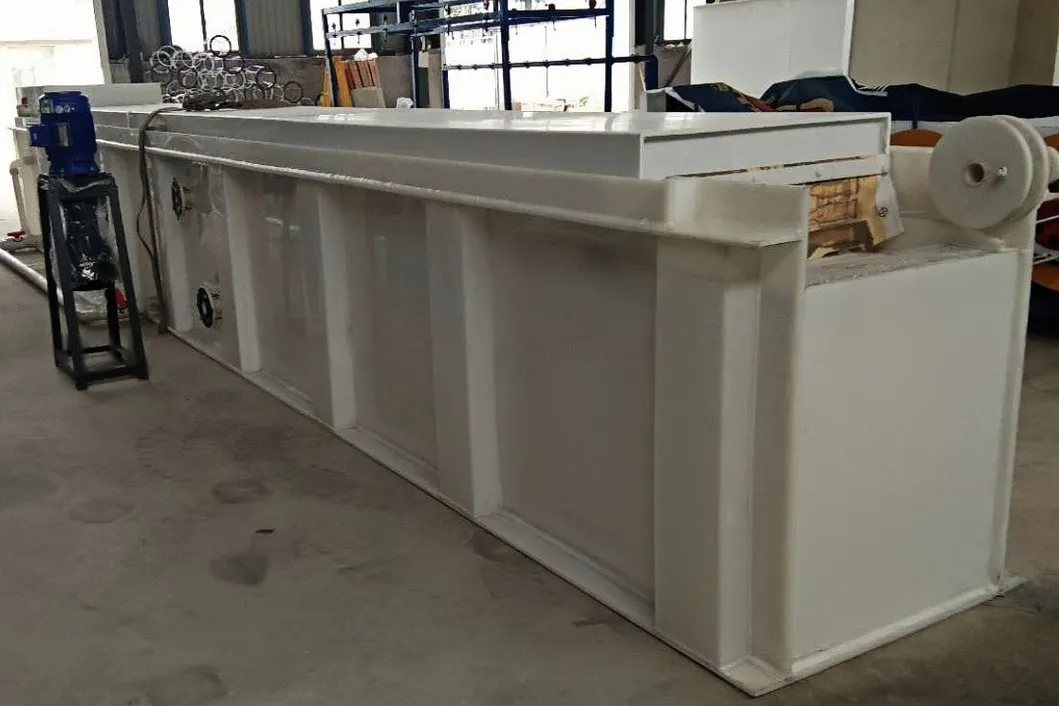

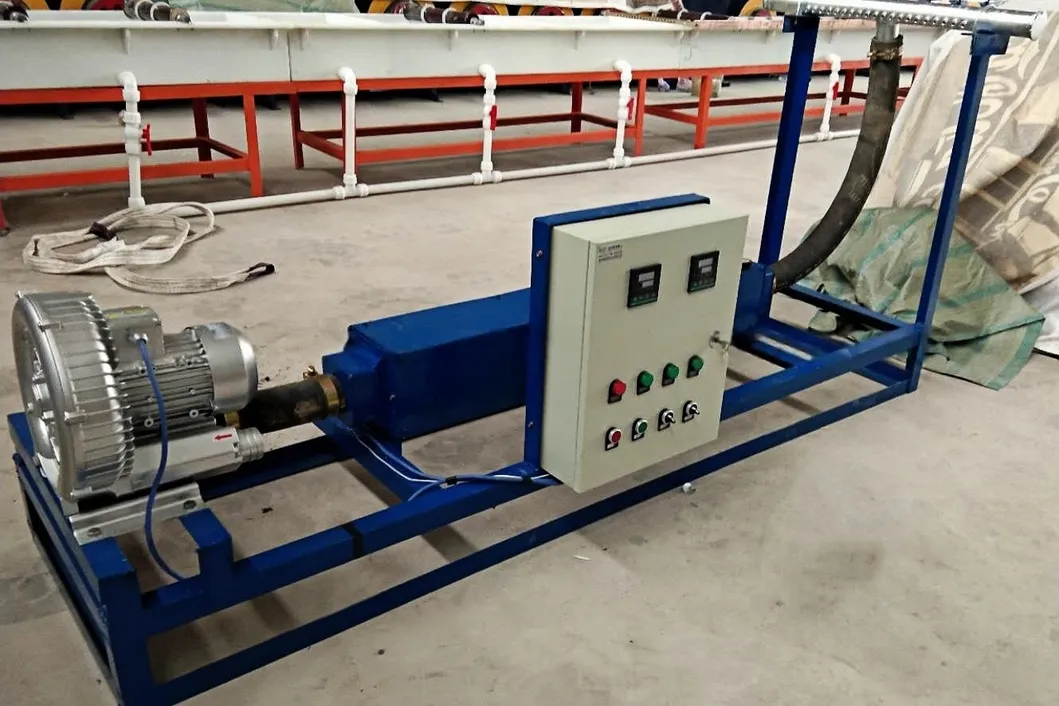

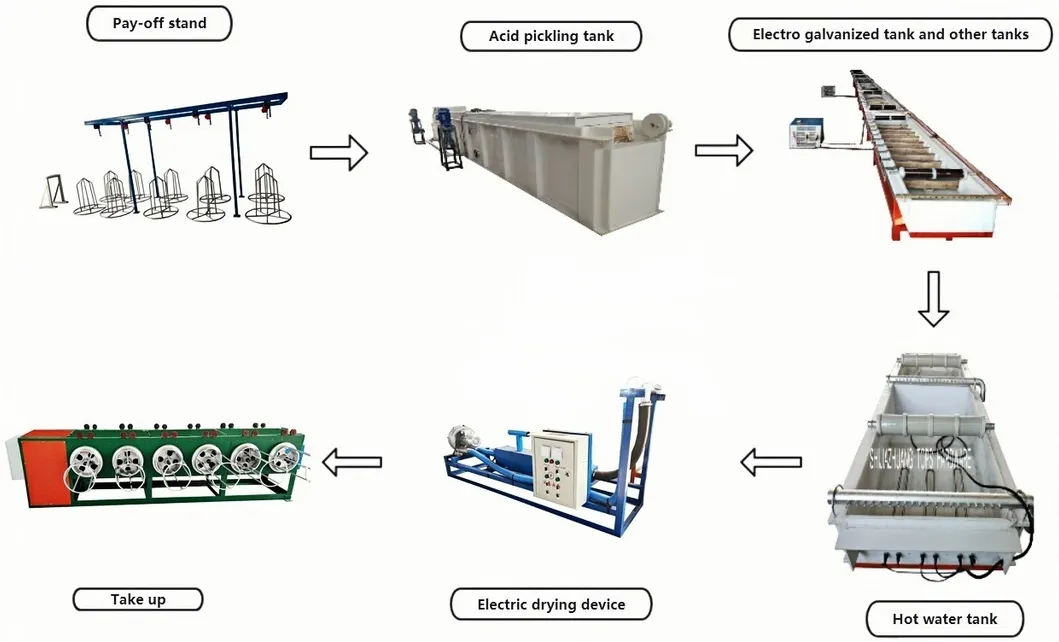

1. Acid pickling washing → 2. Water cleaning tank → 3. Electro galvanized tank → 4. Drain chemical liquid tank → 5. Cold water tank → 6. Hot water tank → 7. Air-blowing → 8. Electric drying → 9. Take up
| Wire diameter | 0.6mm-1.6mm and 1.6mm-4.5mm |
| Zinc coating thickness | 10--30 g/m² |
| Number of wires | 8 wires, 10 wires, 20 wires or customized |
| Raw Material | Carbon steel wire, iron wire |
| Tank Material | High anticorrosive PP material |
| Working Hours | 24 hours, automatic control |
| Output | 545kgs per hour for 2.0mm wire |

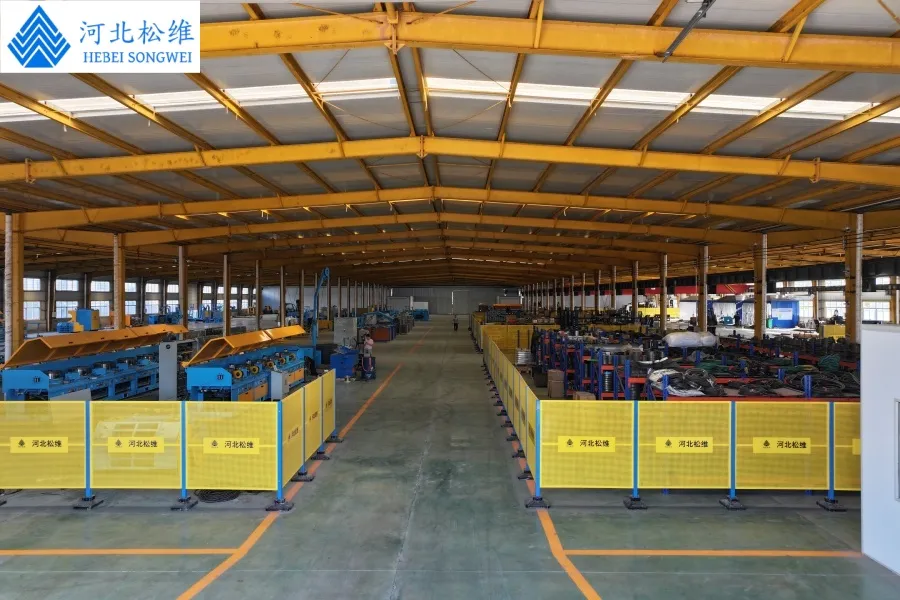

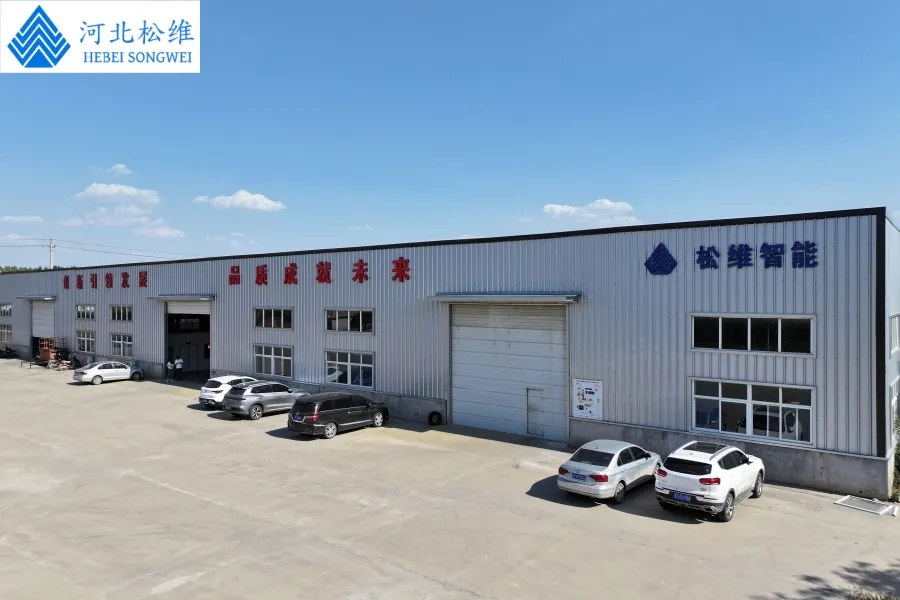

All key spare parts are independently produced to control processing accuracy and quality, extending machinery service life. The facilities include workshops for metal cutting, precision machining, and electrical assembly, covering approximately 30,000 square meters. Advanced processing equipment such as plasma welding and CNC lathes are utilized.
