Nickel Plated Joint and Pipe Racking System (H-60)
Nickel Plated Joint and Pipe Racking System (H-60)
Nickel Plated Joint and Pipe Racking System (H-60)
Nickel Plated Joint and Pipe Racking System (H-60)
Nickel Plated Joint and Pipe Racking System (H-60)
1 / 5
Nickel Plated Joint and Pipe Racking System (H-60)
Nickel Plated Joint and Pipe Racking System (H-60)
Nickel Plated Joint and Pipe Racking System (H-60)
Nickel Plated Joint and Pipe Racking System (H-60)
Nickel Plated Joint and Pipe Racking System (H-60)

Nickel Plated Joint and Pipe Racking System (H-60)

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Model NO.
H-60SPCC25NP-N
Connection Method
Fastener
Process
Stamp
Certification
GB
Surface Treatment
Nickel Plated
Wall Thickness
2.5mm
Diameter
28.0mm
Color
Black
Product Name
Metal Joint
Application
Worktable/Trolley/Rack/Production Lines
Transport Package
150 PCS / CTN
Specification
RoHS, SGS
Production Capacity
100,000 PCS/Day

Product Description

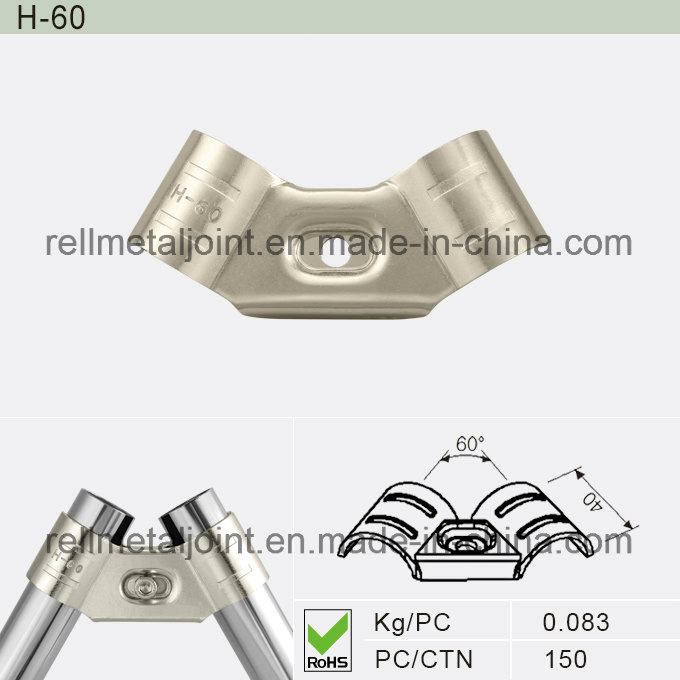

Nickel Plated Joint and Pipe Racking System

Our metal joints are engineered for high-performance pipe and joint racking systems. They provide a simple, easy-to-operate solution for lean production environments.

Reusable System
High Flexibility
Simple Operation
Modular Extensibility

Nickel plated joints are primarily used with Φ28mm SUS pipes or aluminum alloy pipes. They are also compatible with ABS/PE coated pipes, powder painted pipes, and galvanized pipes.

General Specifications Technical Data Logistics Info
DescriptionMetal joints MaterialSPCC (Q/TB201-2011) Net Weight0.083 Kg
ModelH-60SPCC25NP-N Tension Test≥80Kg Pieces/CTN150
Spec.H-60 SurfaceNickel Plated Package Size280*225*160 mm
UnitPiece RoHSCompliant CTN/Pallet100

Frequently Asked Questions

What materials are the metal joints made of?
The joints are manufactured from high-quality SPCC steel (Q/TB201-2011) with a durable nickel-plated surface treatment.
Are these metal joints compatible with different types of pipes?
Yes, they are designed for Φ28mm systems and work perfectly with SUS pipes, aluminum alloy pipes, ABS/PE coated pipes, and galvanized pipes.
What is the load-bearing capacity of the H-60 joint?
The joint has passed tension tests confirming a capacity of ≥80Kg (according to Q/RELL002-2012 standards).
Can these joints be reused if the rack structure is changed?
Absolutely. One of the primary benefits of this system is its complete reusability and flexibility for reconfiguring worktables or racks.
What are the standard packaging details for bulk orders?
Standard packaging includes 150 pieces per carton, with a carton size of 280*225*160 mm. We can accommodate large orders with a daily capacity of 100,000 pieces.
Is the product compliant with environmental standards?
Yes, the product is RoHS compliant and meets GB certification standards for safety and quality.
