| Model NO. | PD-GM-04 |
|---|---|
| Certification | CE |
| Application | Commercial & Residential |
| Material | High Strength Steel / Magnesium Aluminum Zinc |
| Type | Ground Mounting Bracket |
| Wind Speed | Up to 60m/s |
| Snow Load | 1.4kn/m² |
| Surface Treatment | Magnesium Aluminum Zinc Plating |
| Standard | AS/NZS1170 / Jisc8955:2017 / IBC 2009 |
The Magnesium Aluminum Zinc Ground Mounting System is strictly designed according to maximum wind speeds and snow loads. This solution balances structural strength with installation efficiency, significantly reducing labor costs. The system features high durability and long service life, suitable for foundations including ground screws and cement piers.

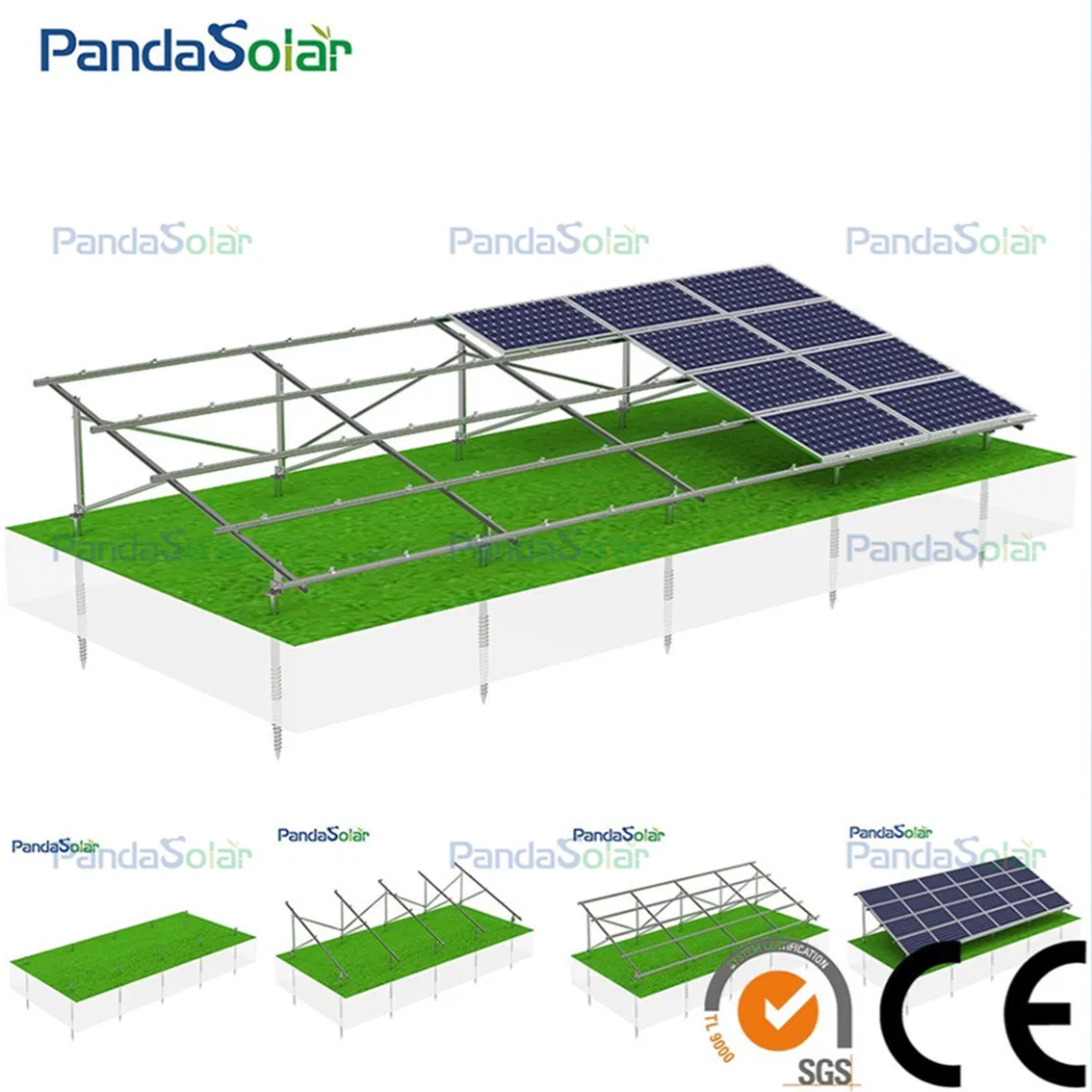

Structural Features:

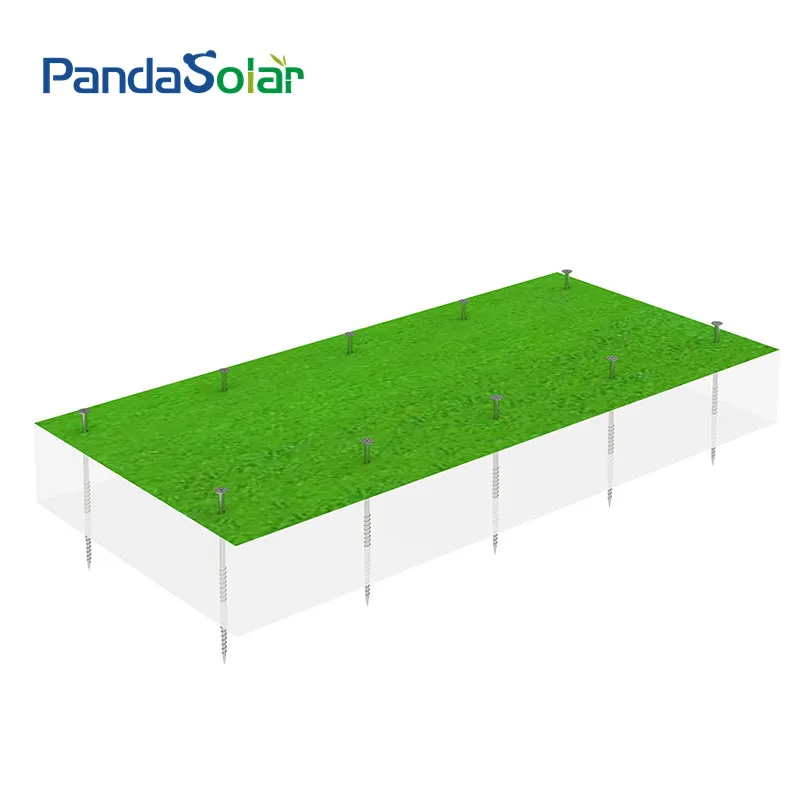

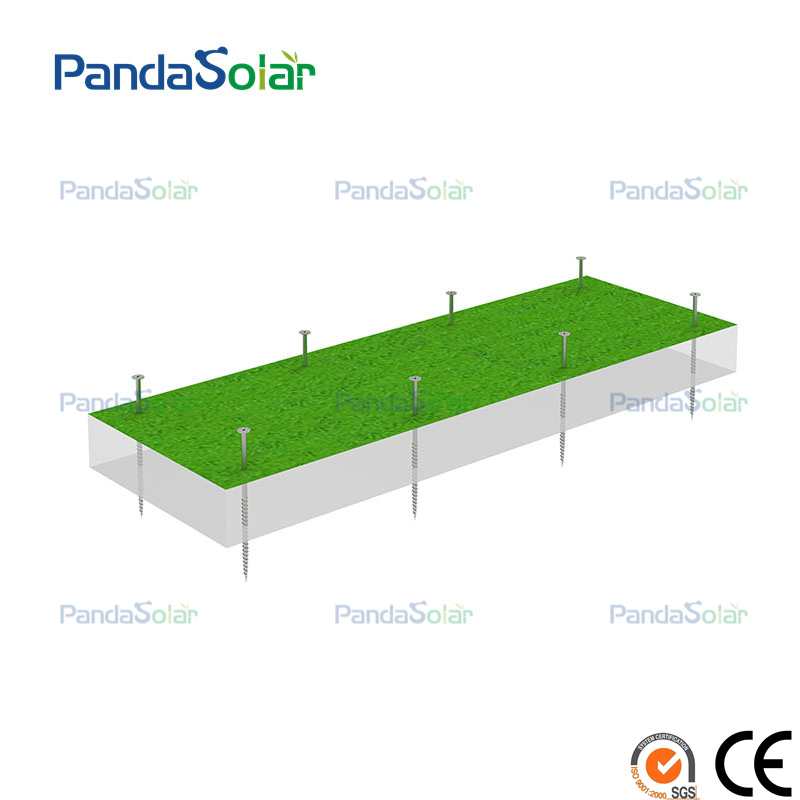

1. Foundation Setup: Installing ground screws or concrete anchors to secure the support structure.

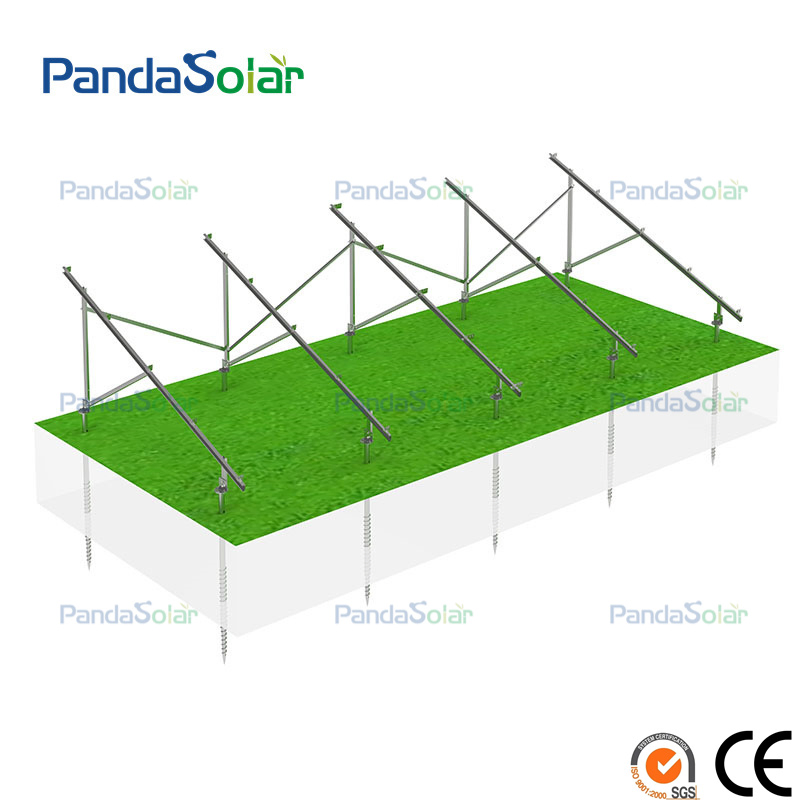

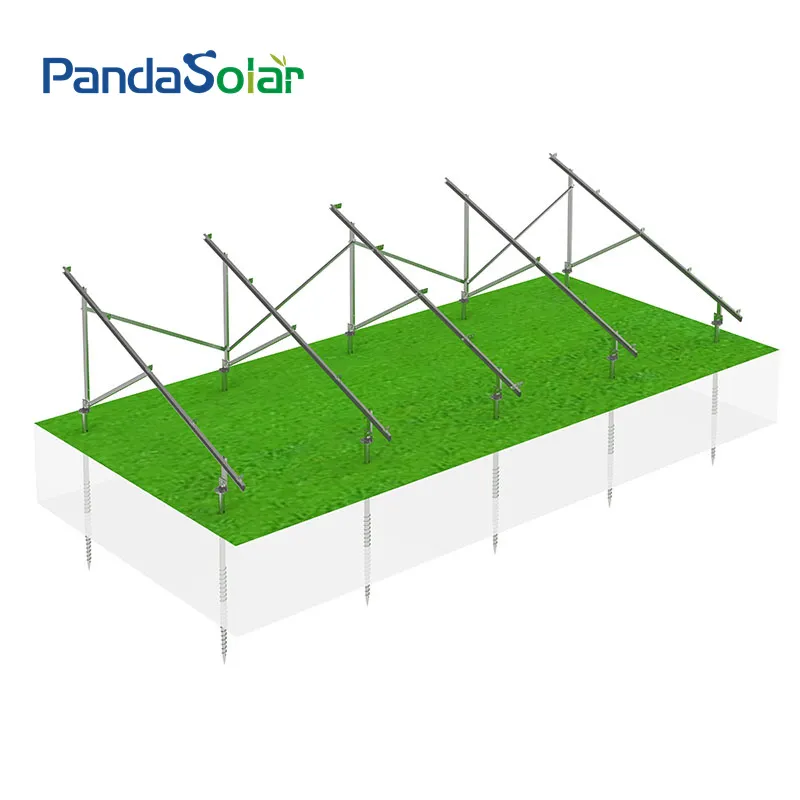

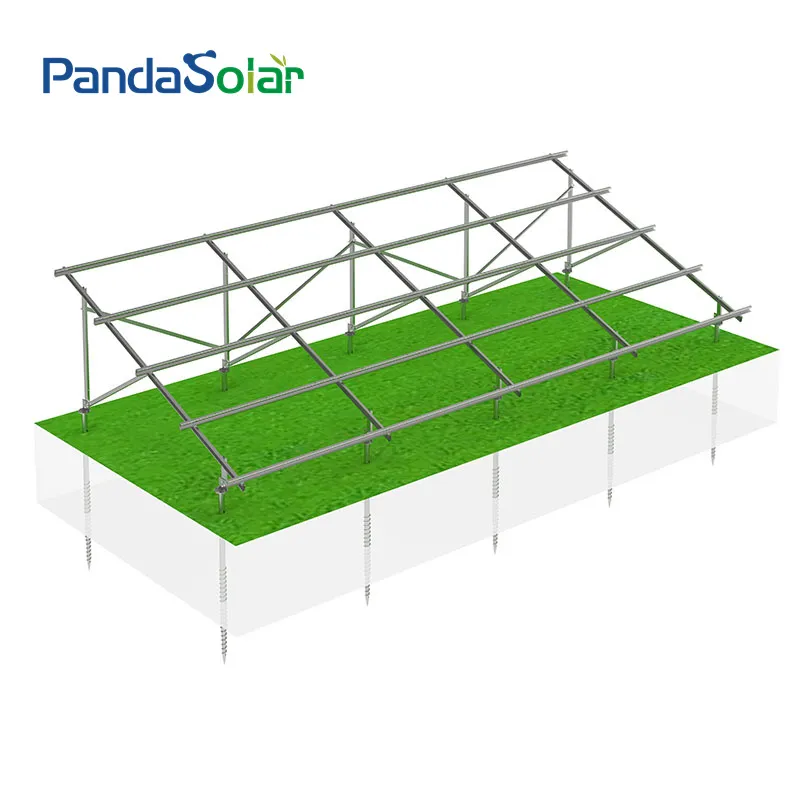

2. Install Beams: Connect diagonal support poles to the vertical posts using precision bolts.

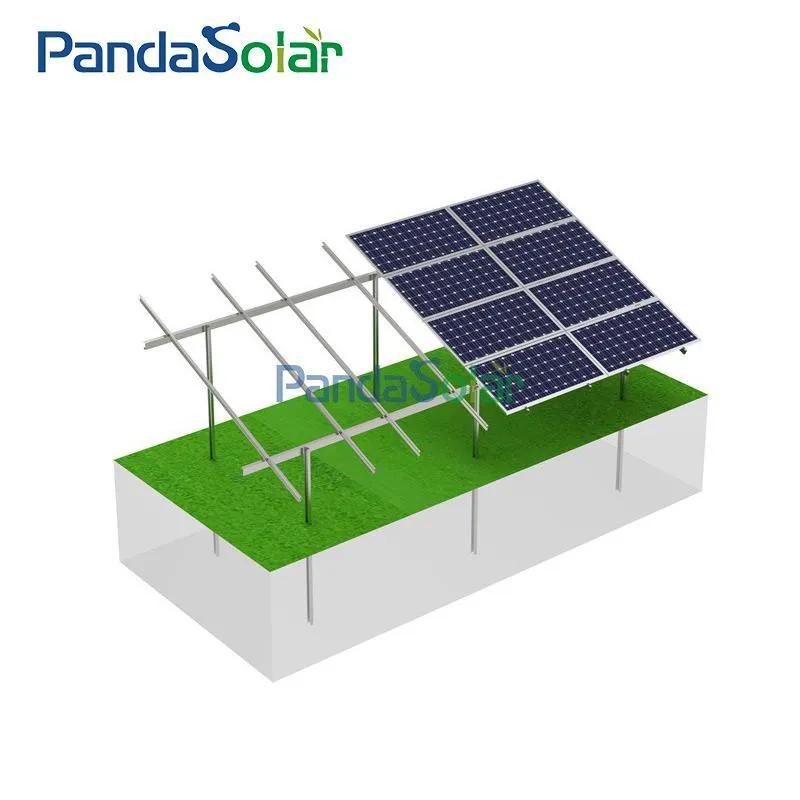

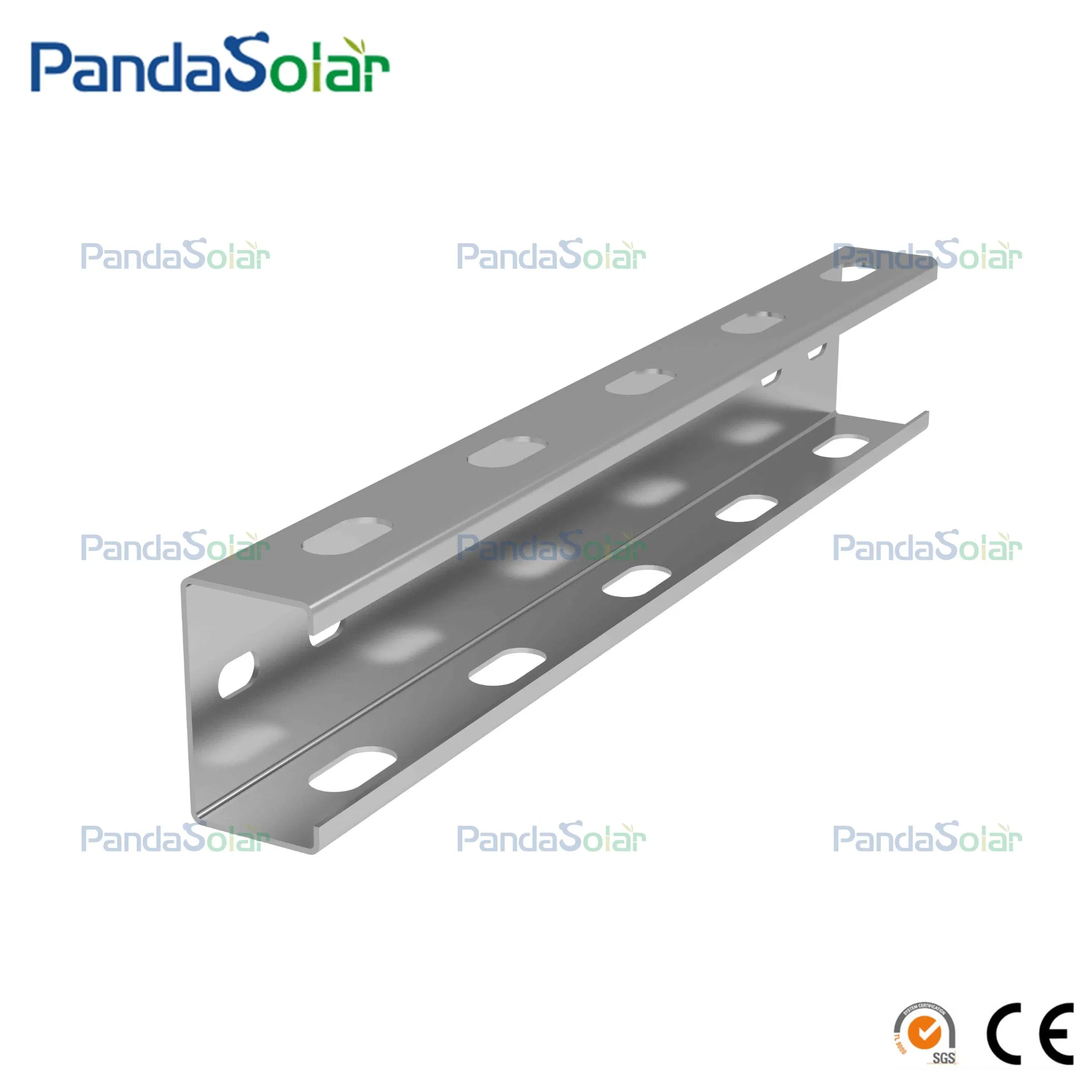

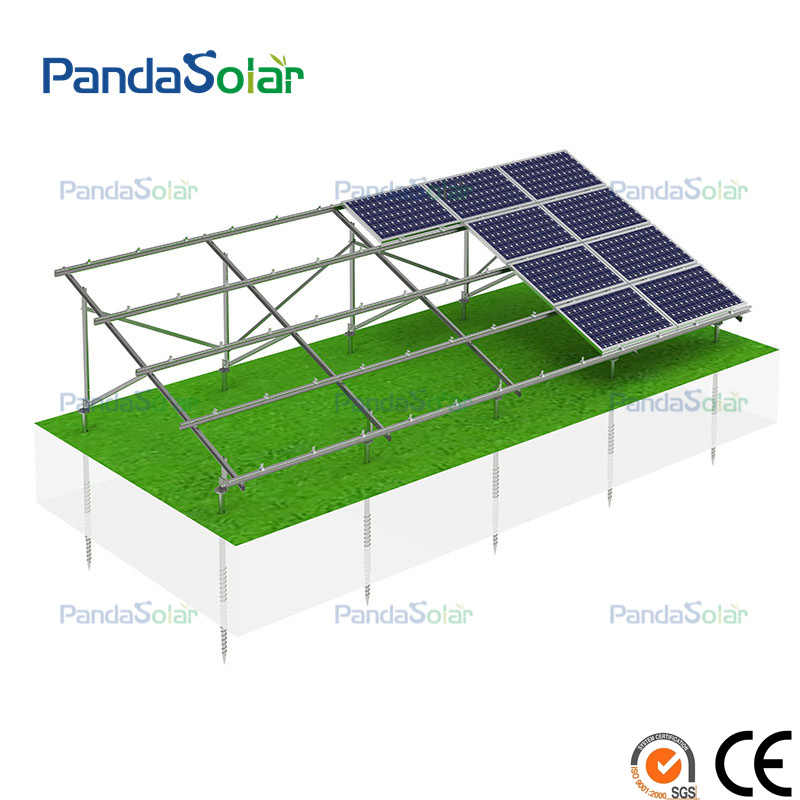

3. Rails & Panels: Attach supporting rails and securely fasten solar panels with mounting hardware.

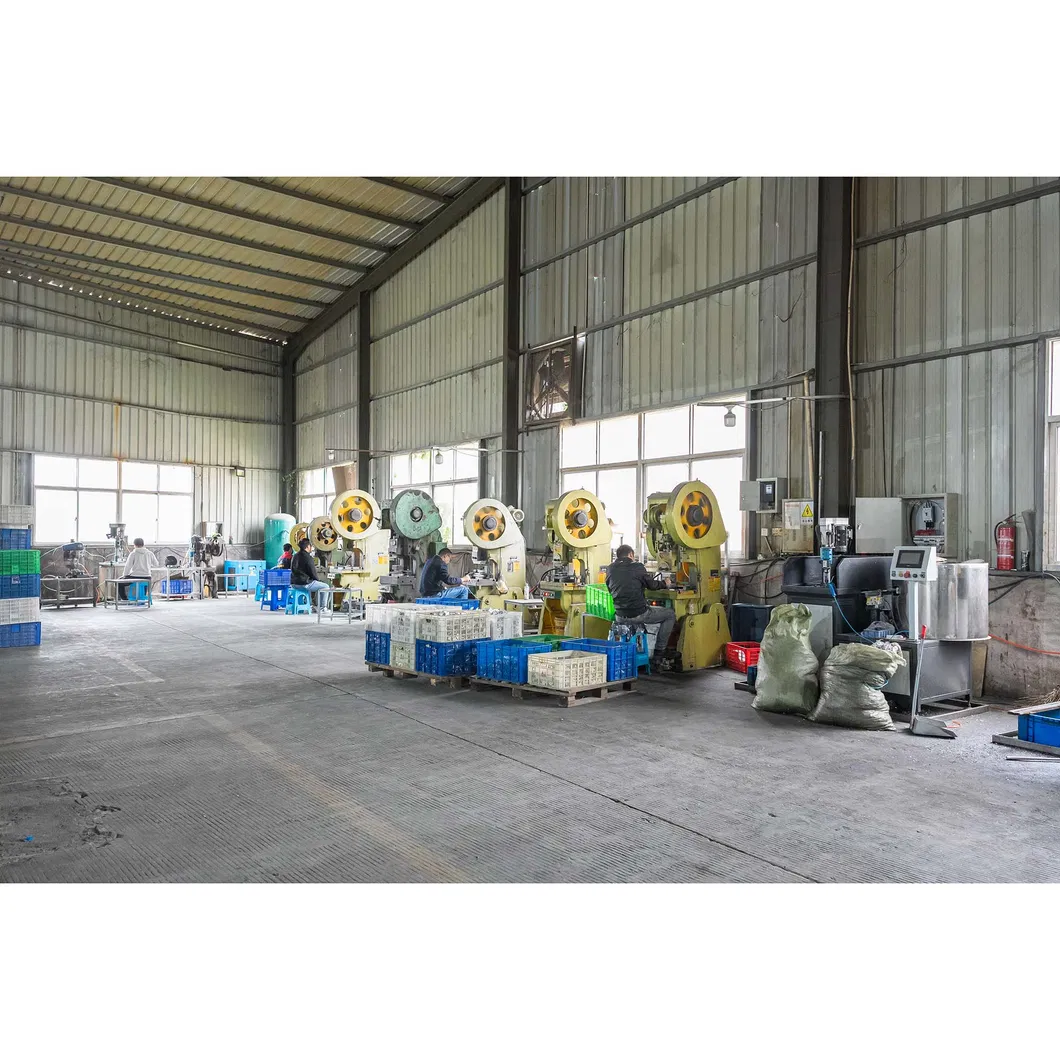

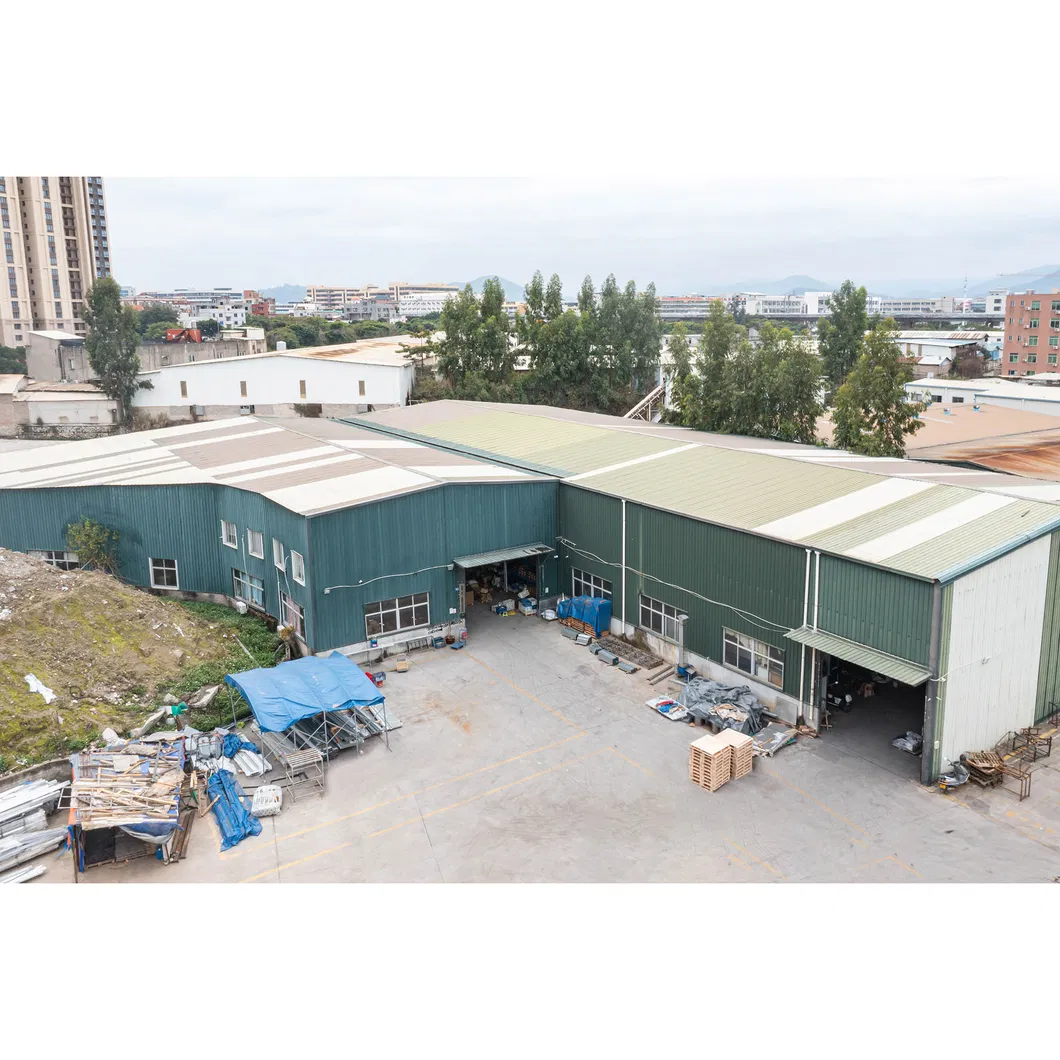

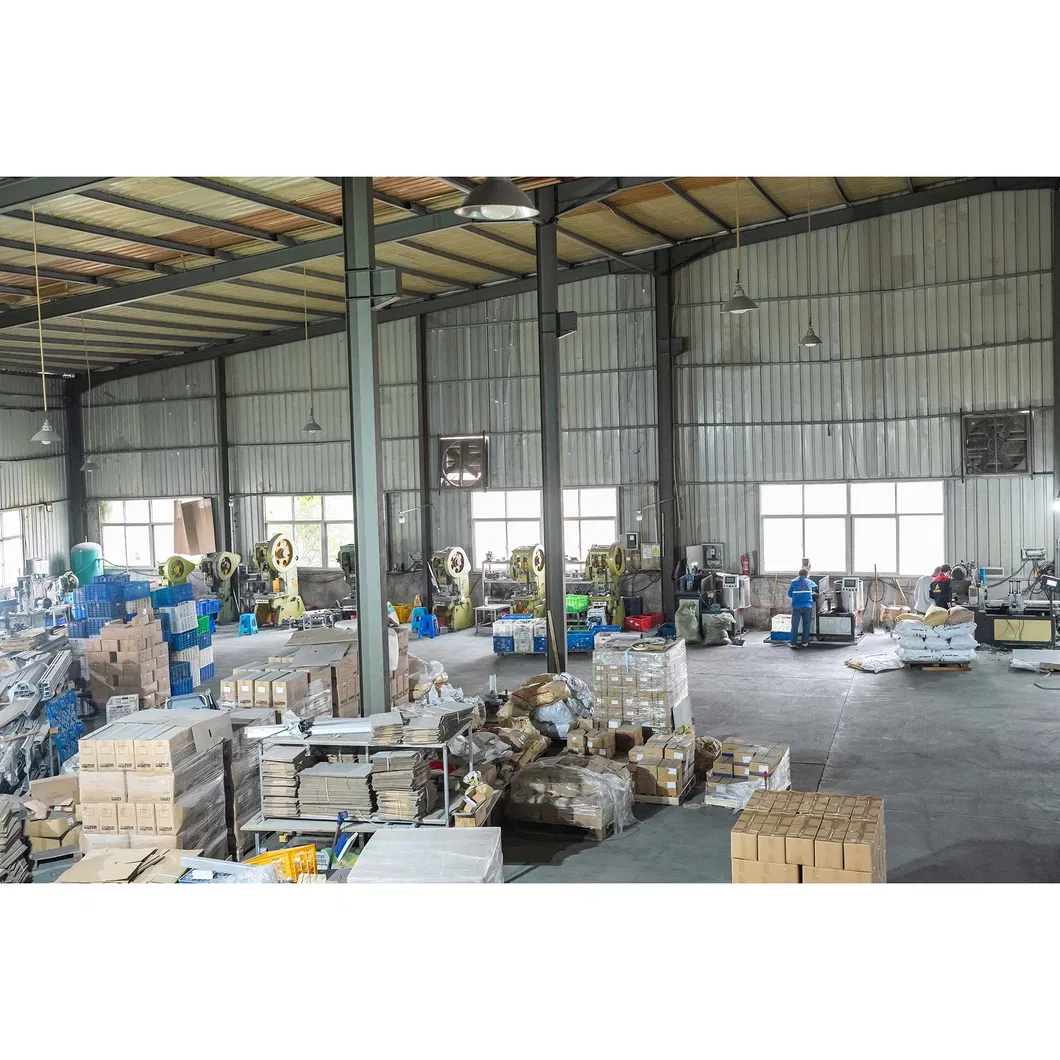

Equipped with professional processing workshops for both Aluminum and Steel materials. Capabilities include independent cutting, drilling, stamping, and forging. With 6 production lines, the facility maintains a high productivity of 40-50MW per month.
