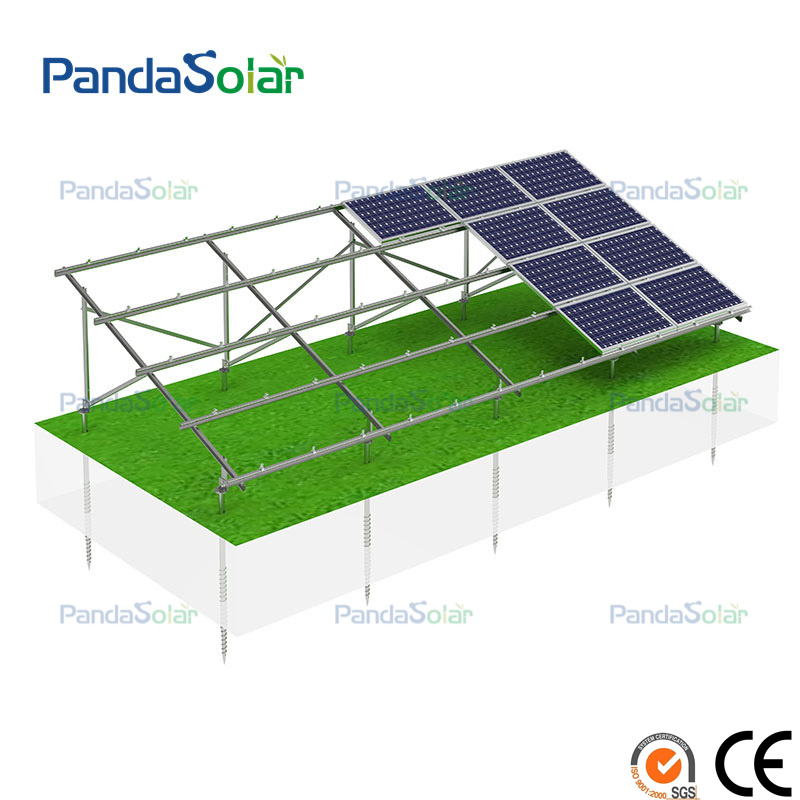

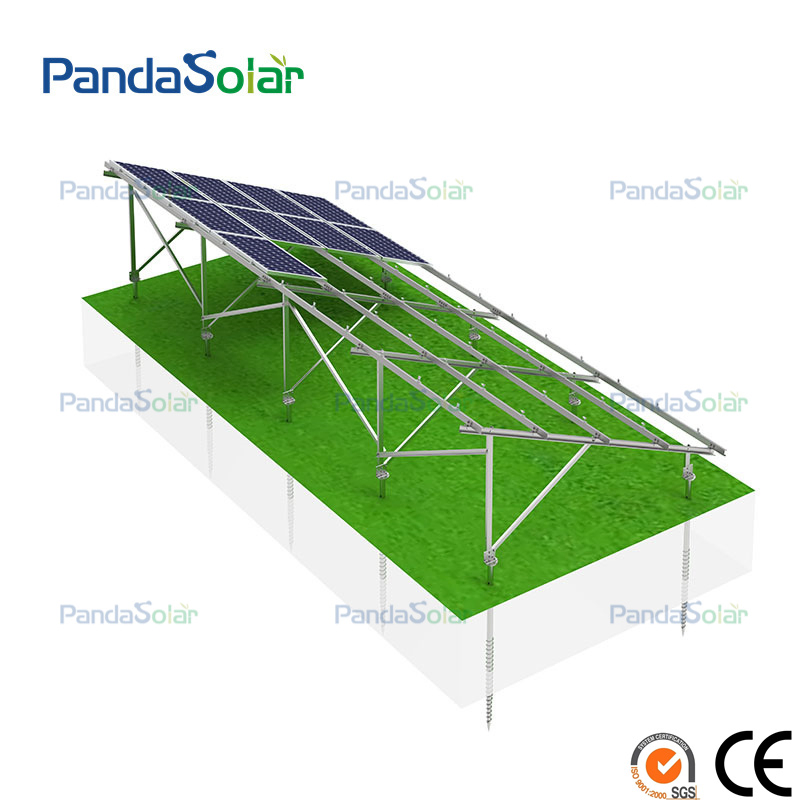

Pandasolar GM4 Mg-Al-Zn High Strength Plating Solar Panel Ground Mounting System Structure Exm Manufacturer

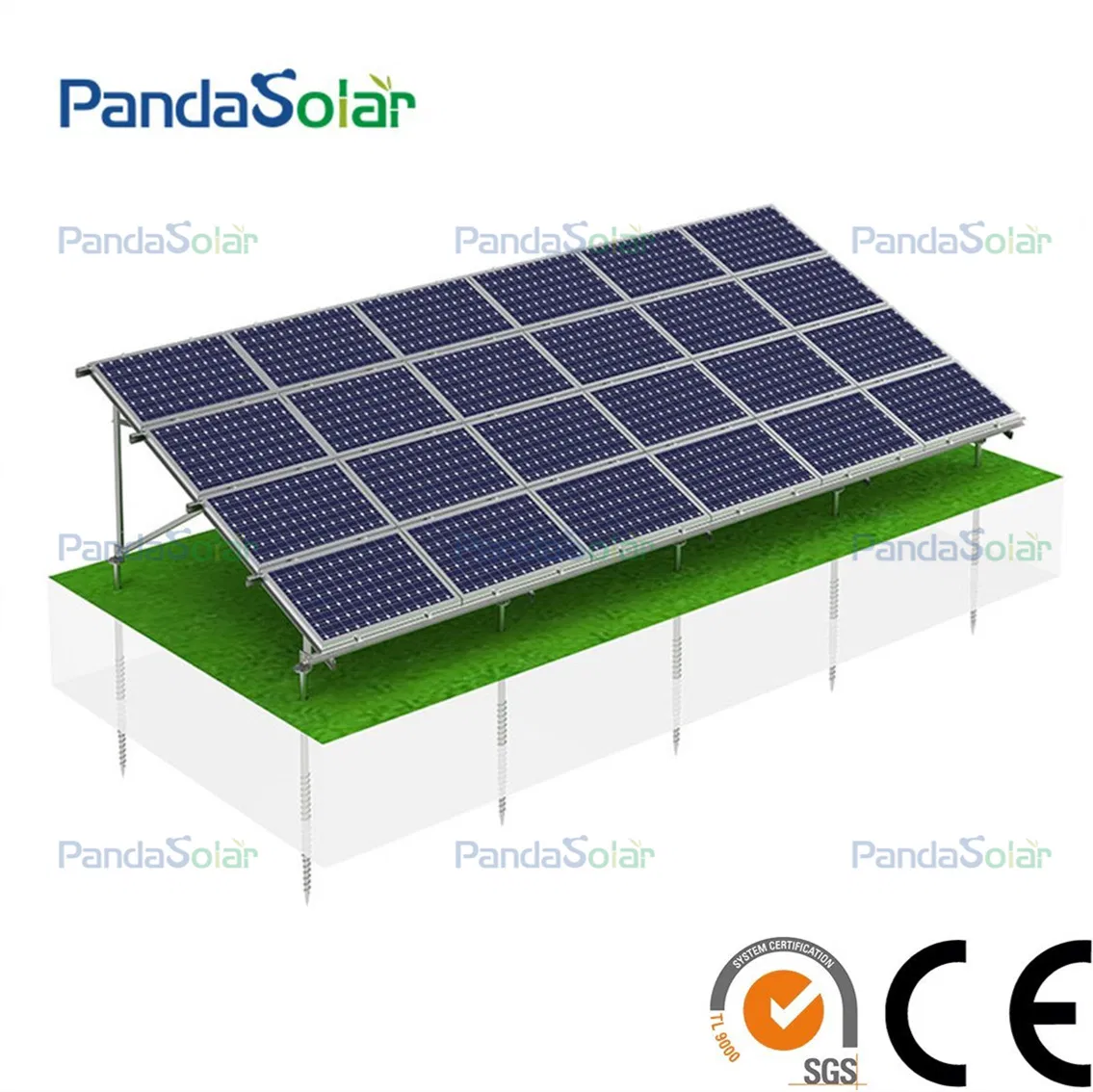

Magnesium Aluminum Zinc Ground Mounting Systems for Solar Panels:

This solar ground mounting bracket is strictly designed according to maximum wind speed, snow load, and specific solar panel requirements. While ensuring high strength, installation efficiency and labor costs are optimized to ensure long service life and quality. Support foundations include direct ground insertion, ground screws, and cement piers.

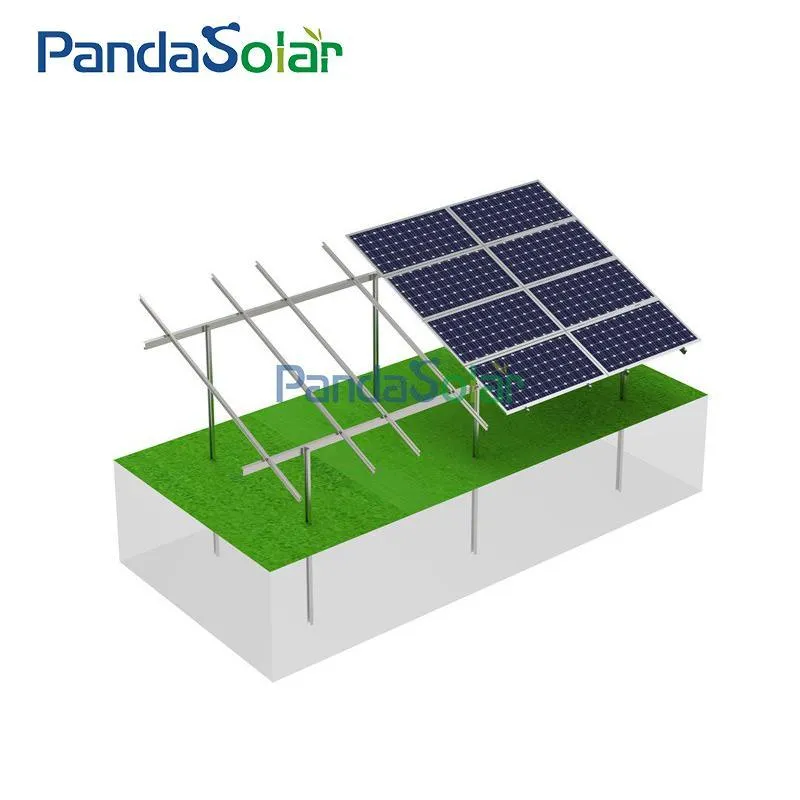

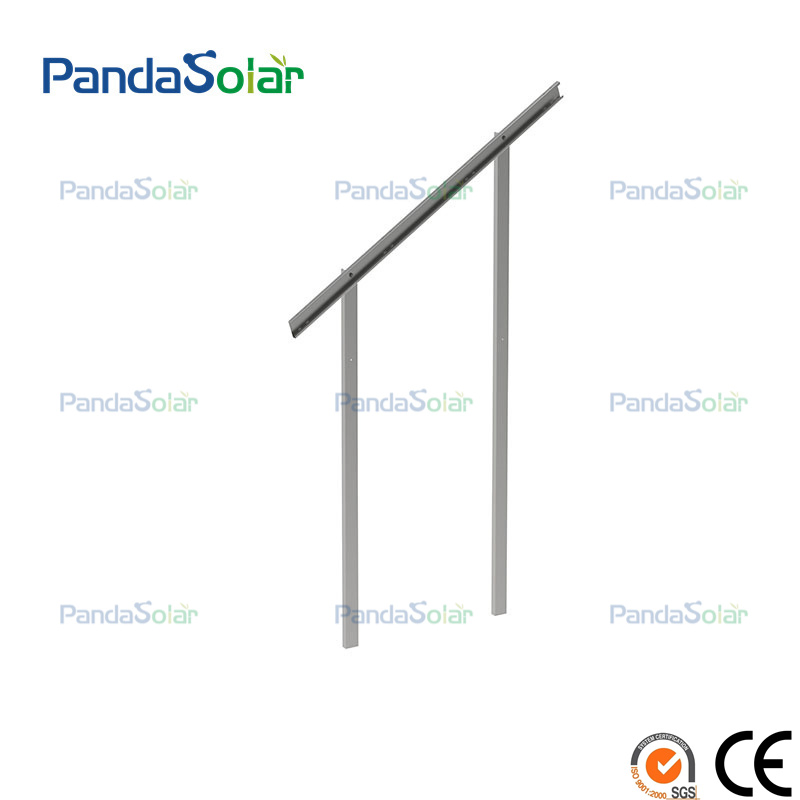

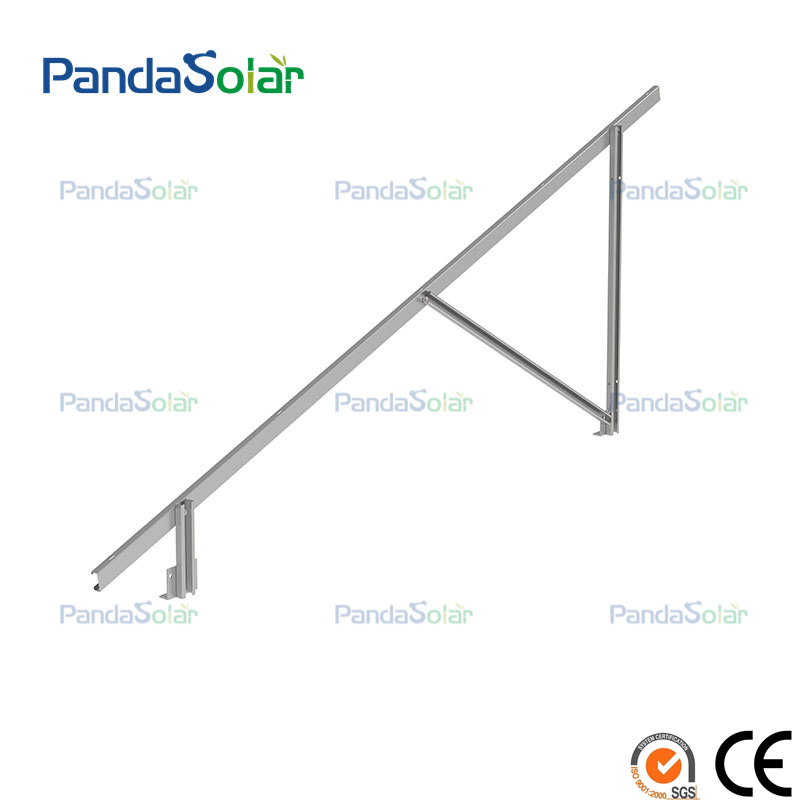

The GM4 double column system supports both ground bolt columns and piling columns. Ground screw posts allow for precise height adjustments, while piling columns offer higher strength for demanding installation accuracy.

Installation Diagram:

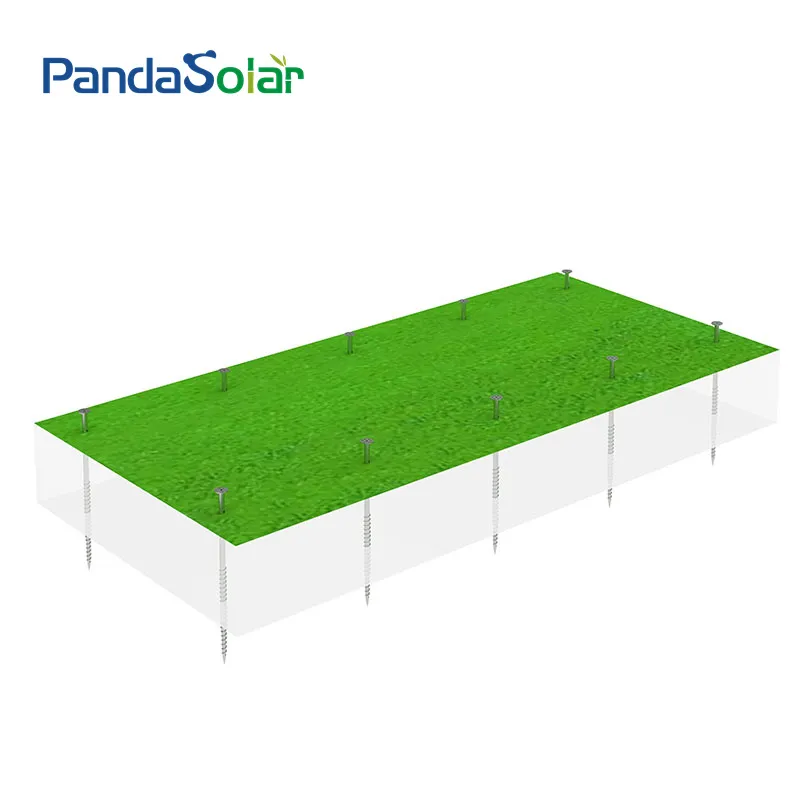

1. Installing Ground Screws: Anchors the support structure to the ground. Screws are drilled into the soil based on soil type and weight requirements.

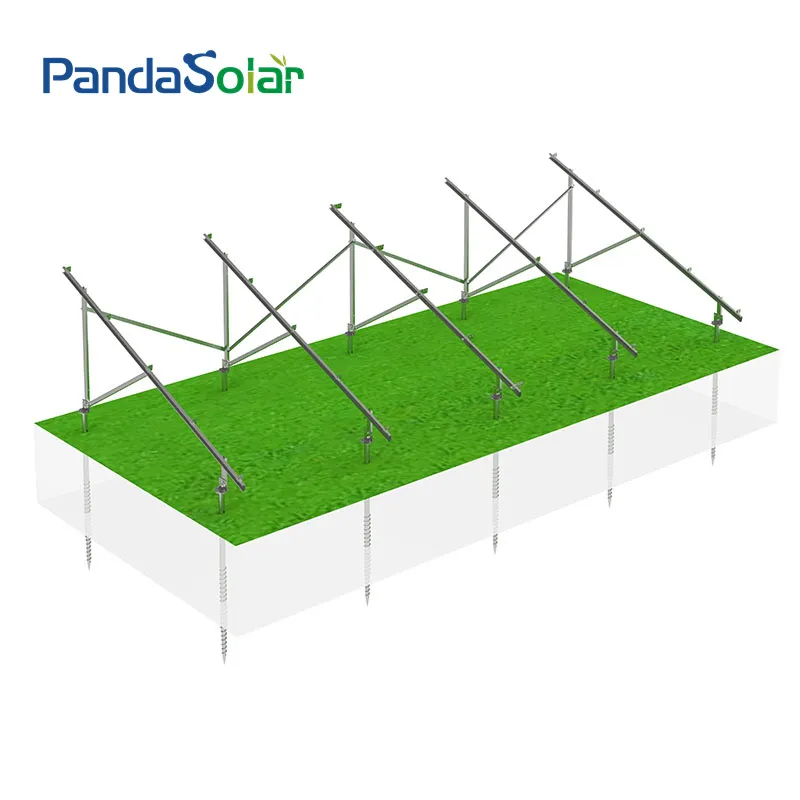

2. Install Beam & Support Pole: Connect the diagonal support pole to the top using bolts and nuts, then attach the main beam.

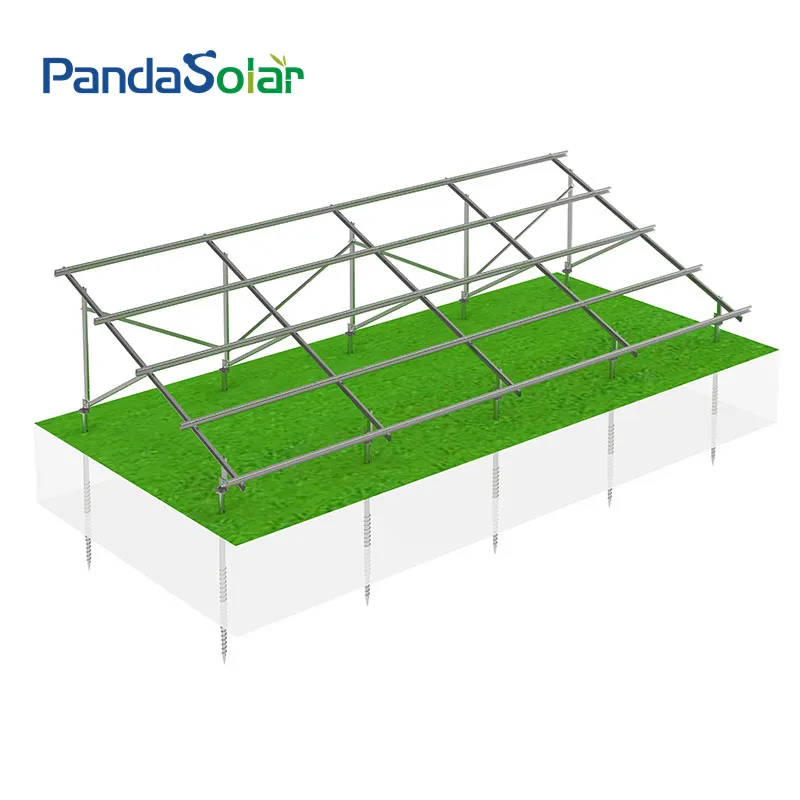

3. Installing Rails: Attach the supporting rails to the beam using brackets and bolts. Ensure the rail is perfectly level.

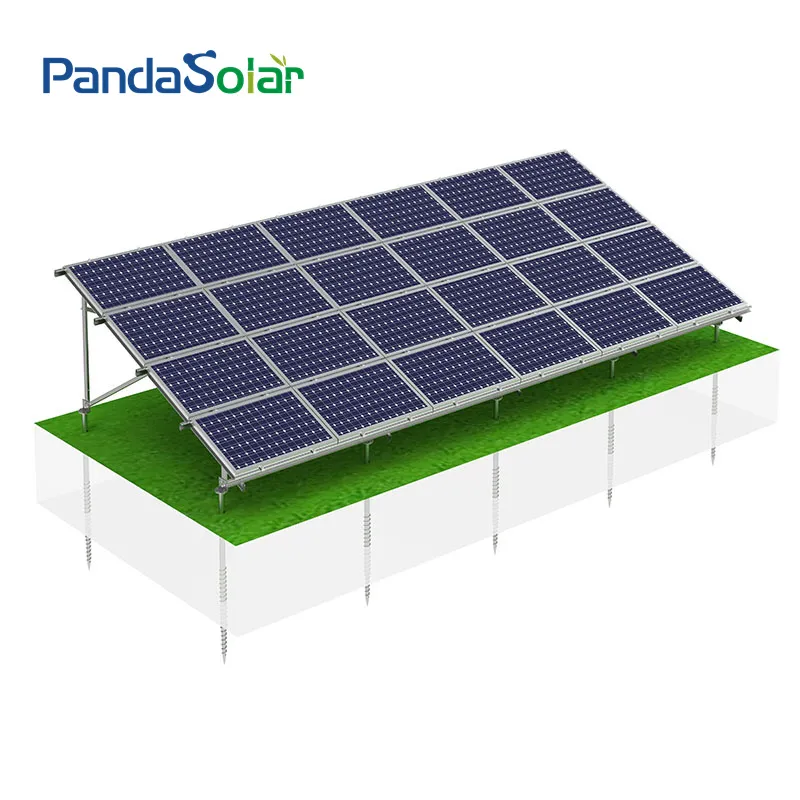

4. Installing Solar Panels: Secure the solar panels to the rails using mounting hardware, ensuring each panel is fastened tightly.

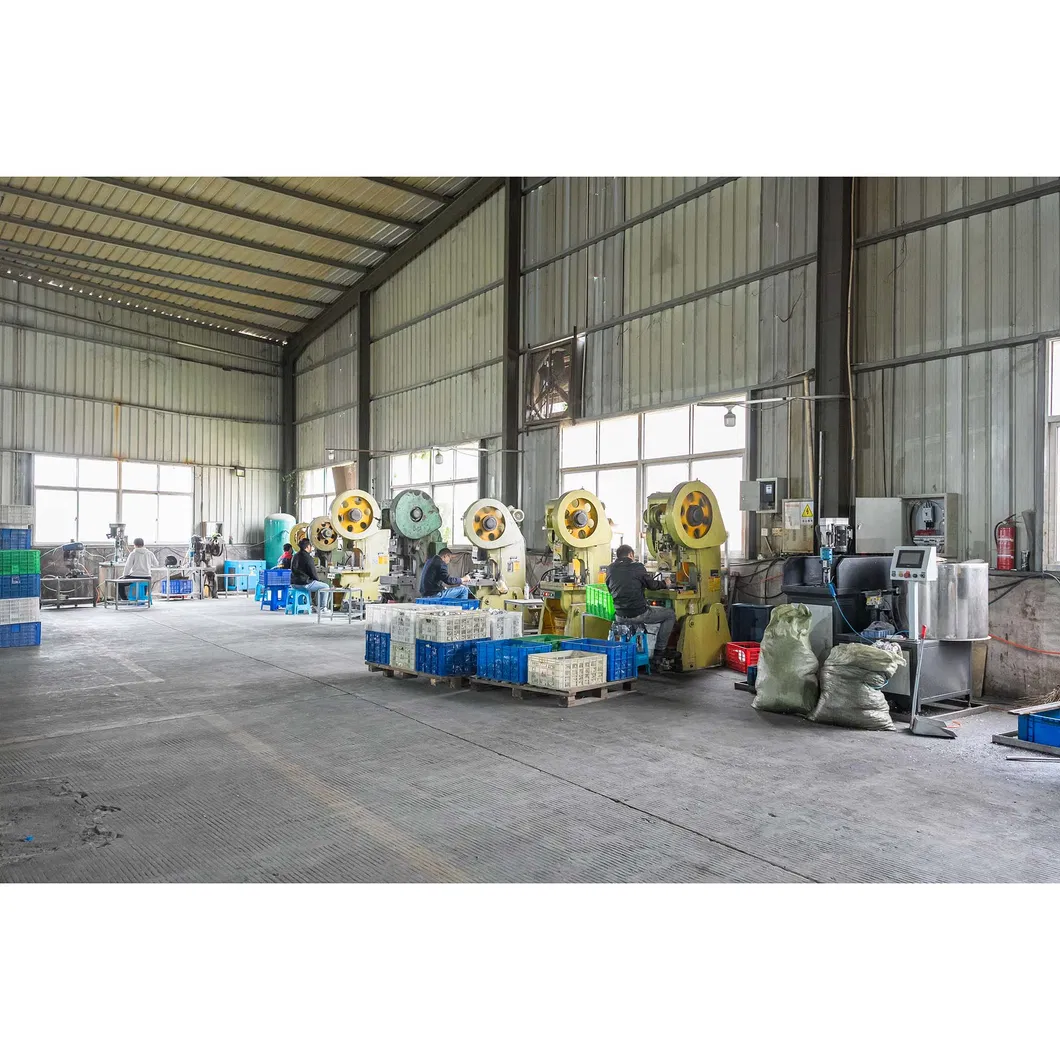

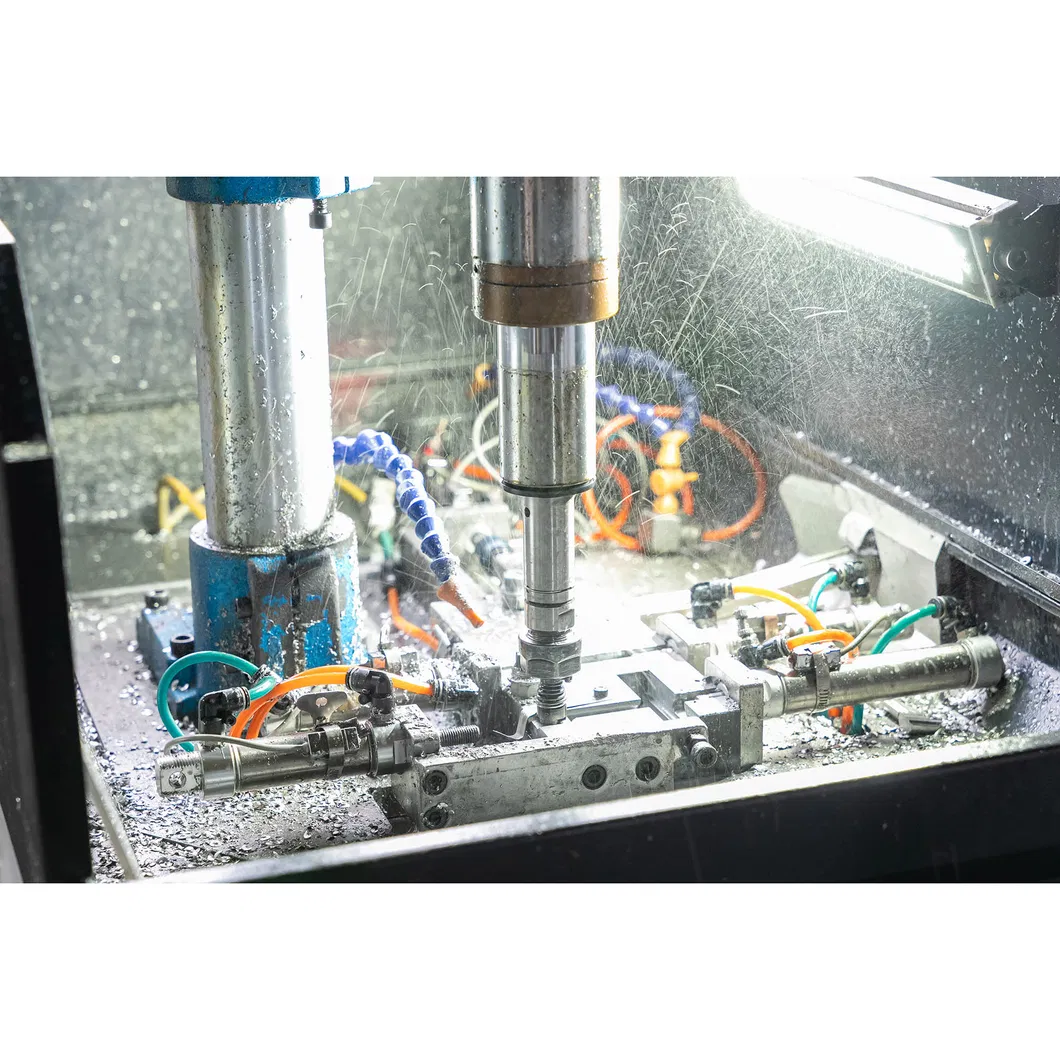

Aluminum Material Workshop: Features professional processing for cutting, drilling, stamping, and forging. The team handles high customization and precision requirements independently.

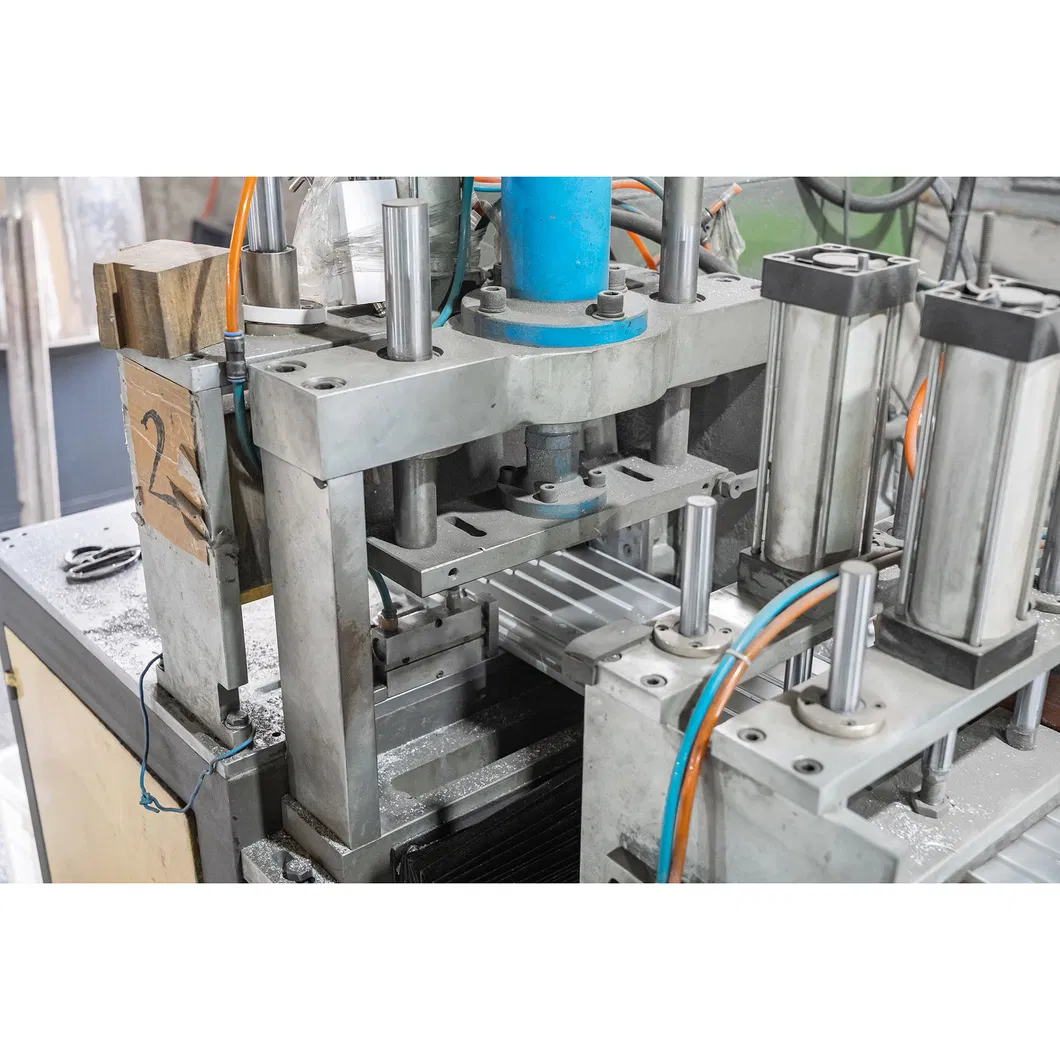

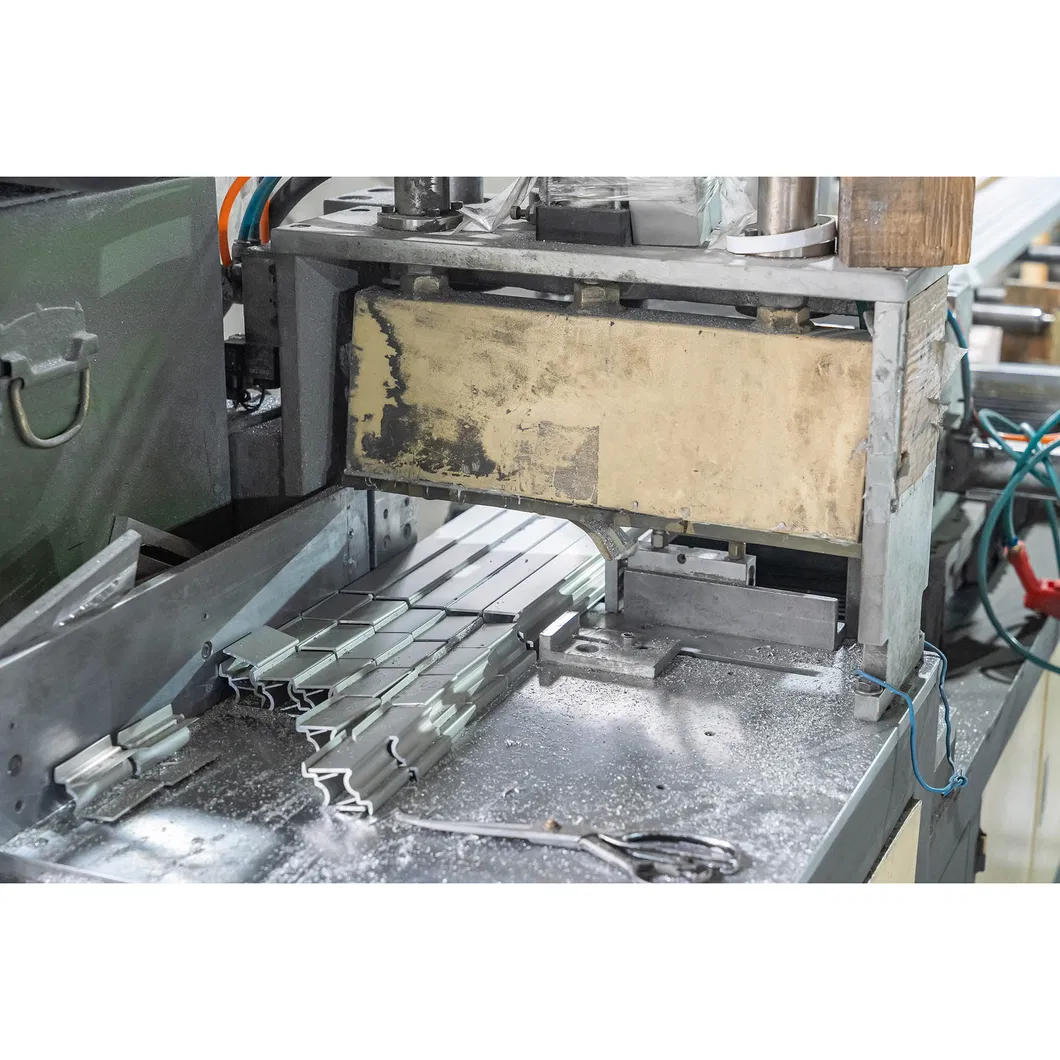

Steel Material Workshop: Specialized in Steel/Magnesium aluminum zinc (S350GD/S450GD) with 6 production lines. Monthly productivity reaches 40-50MW.
