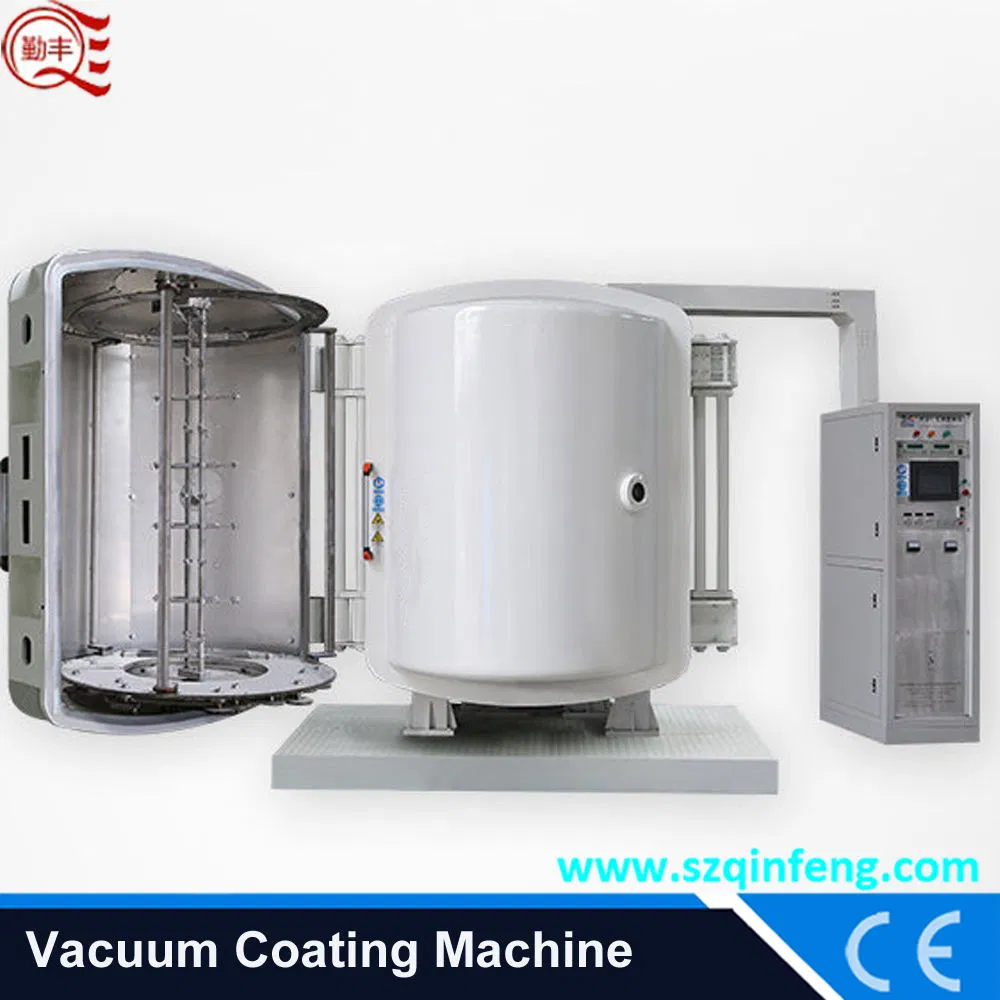

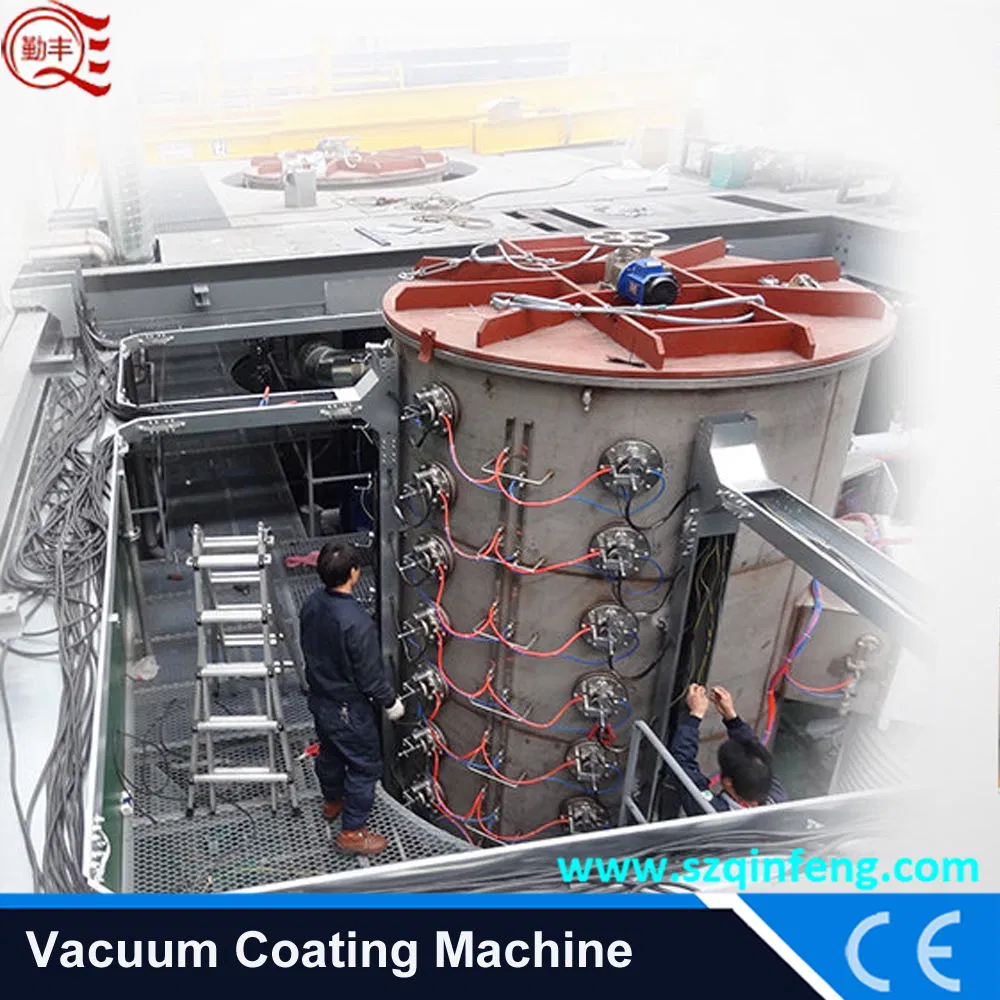

Multi Function PVD Titanium Vacuum Plasma Lon Chrome Spray Plating System Before UV Painting

1 / 5

Multi Function PVD Titanium Vacuum Plasma Lon Chrome Spray Plating System Before UV Painting

Customization:	Available
After-sales Service:	Online Service
Warranty:	One Year

Send Inquiry

Product Description

📋

Basic Information

Model NO.

QF-PVD2008

Type

Powder Coating Booth

Coating

Painting

Substrate

Steel

Certification

Condition

New

Single Gross Weight

68.000kg

Key Selling Points

High Productivity

PLC

Taiwan Fatek Brand

Weight (Kg)

10000

Voltage

Customers Local Voltage

Touch Screen

Beijing Mcgs Brand

Power(W)

80kw

📦

Packaging & Delivery

Package Size

200.00cm * 200.00cm * 200.00cm

Gross Weight

800.000kg

Lead Time

20 days (1 - 2 sets); To be negotiated (> 2 sets)

⚙️

Spray System for Bottle Caps with Spraying Booth

Production Features:

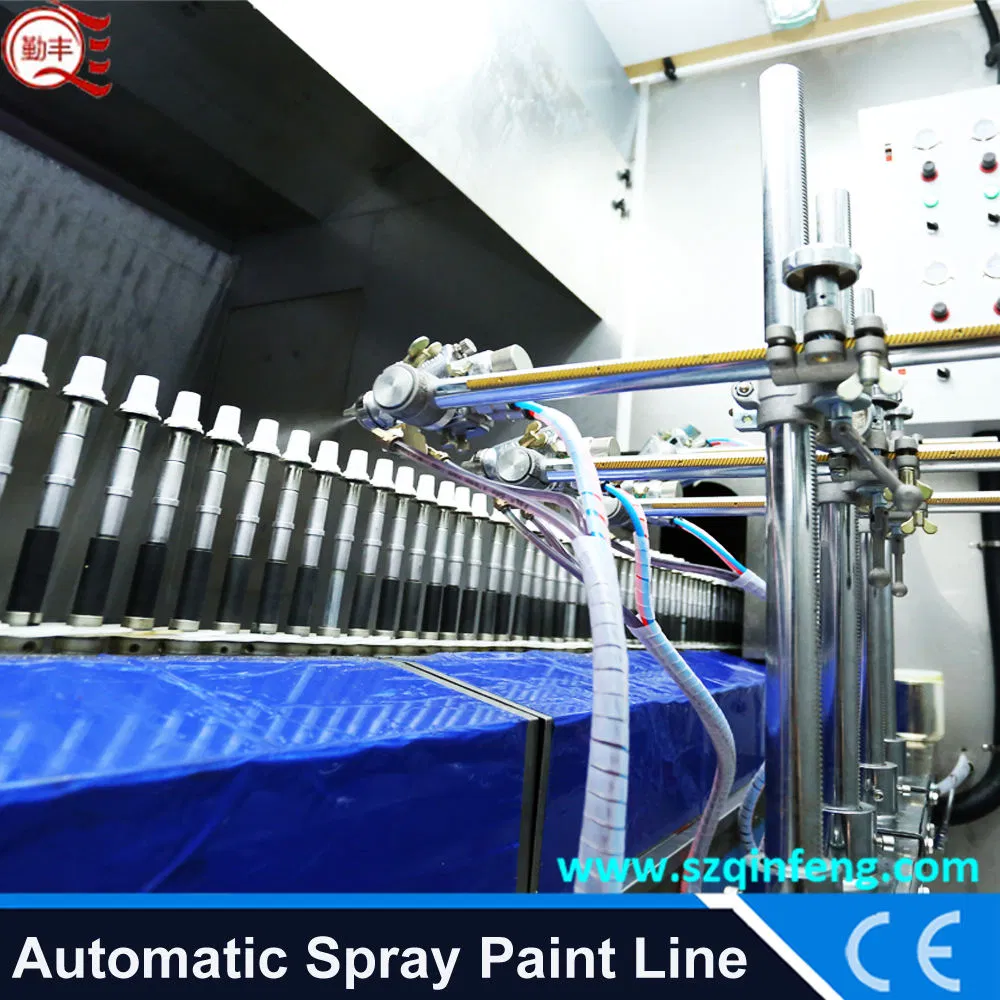

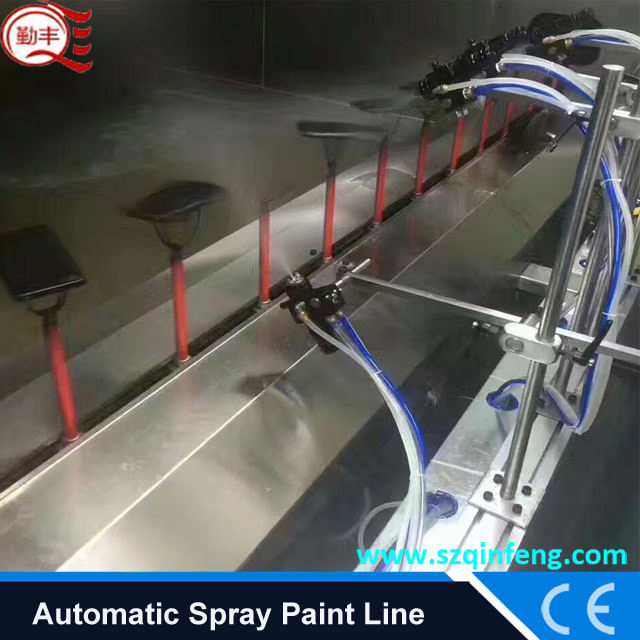

✔ Automatic spray paint line includes automatic dust removing, automatic spraying paint, automatic drying and automatic cooling. Saves labor and cost while improving efficiency.
✔ Spray evenly with high precision: running accuracy within 0.2mm, spraying accuracy within 0.2-1mm.
✔ Flexible spraying size can save up to 20% paint.
✔ High efficiency: can reach continuous work for 24 hours; output is 3-5 times higher than manual labor.
✔ Fully visual touch screen control, easy operation, with quick data save and read capabilities.
✔ Spraying debugging is simple and can be completed within ten minutes.

Process Flow of Spray Painting

Loading → Pretreatment → Electrostatic dedusting → Bottom painting → Surface drying → Finishing painting → Curving → Cooling → Unloading → Vacuum metallization

🖼️

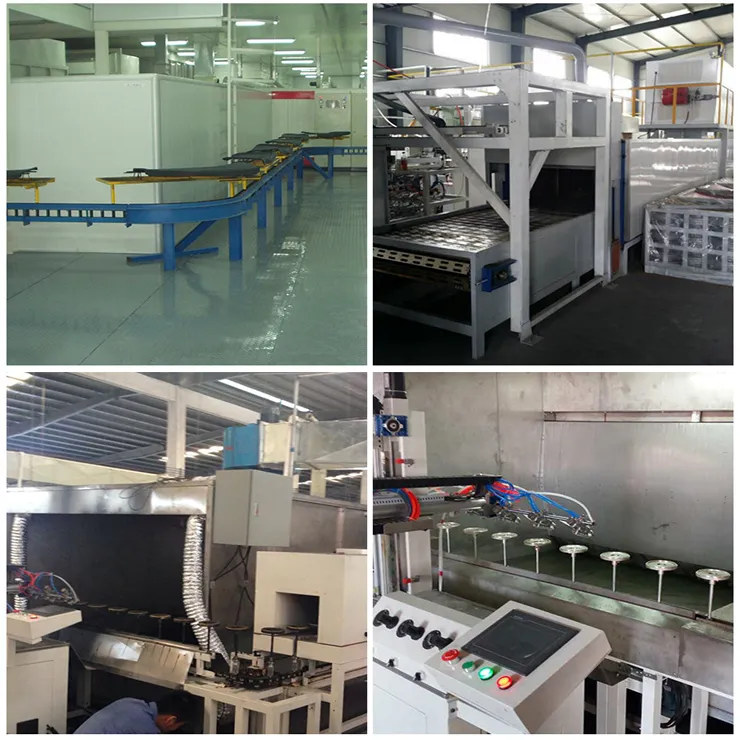

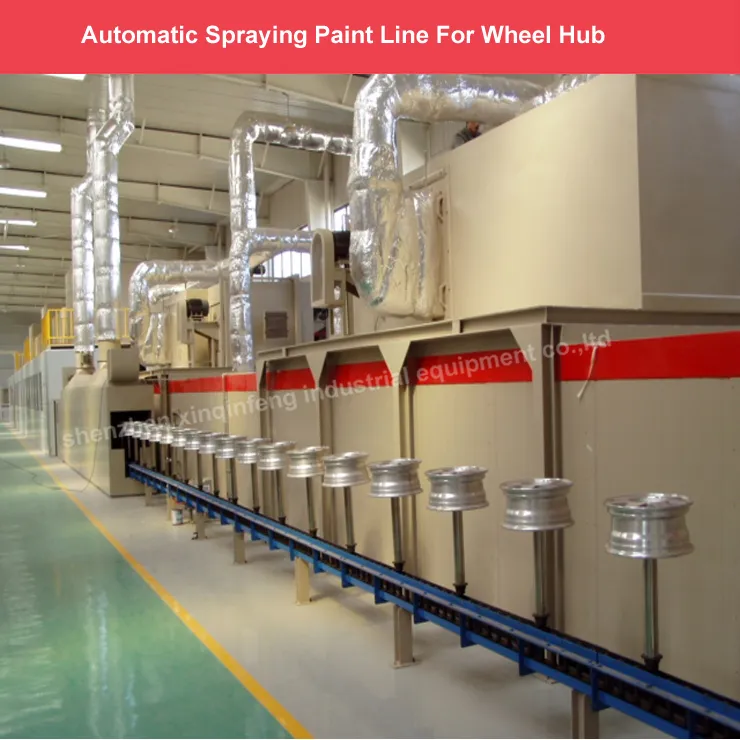

Product Gallery

🚀

Applications

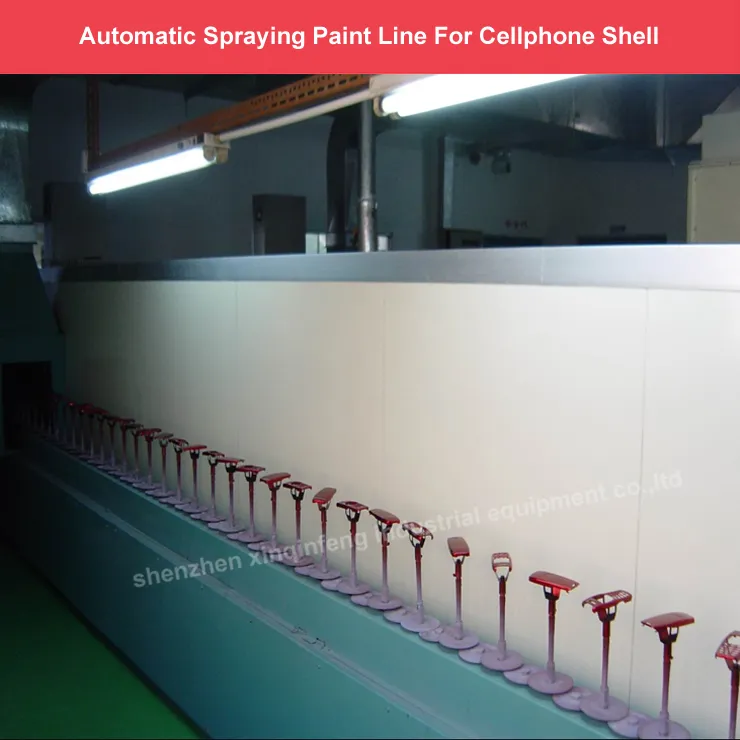

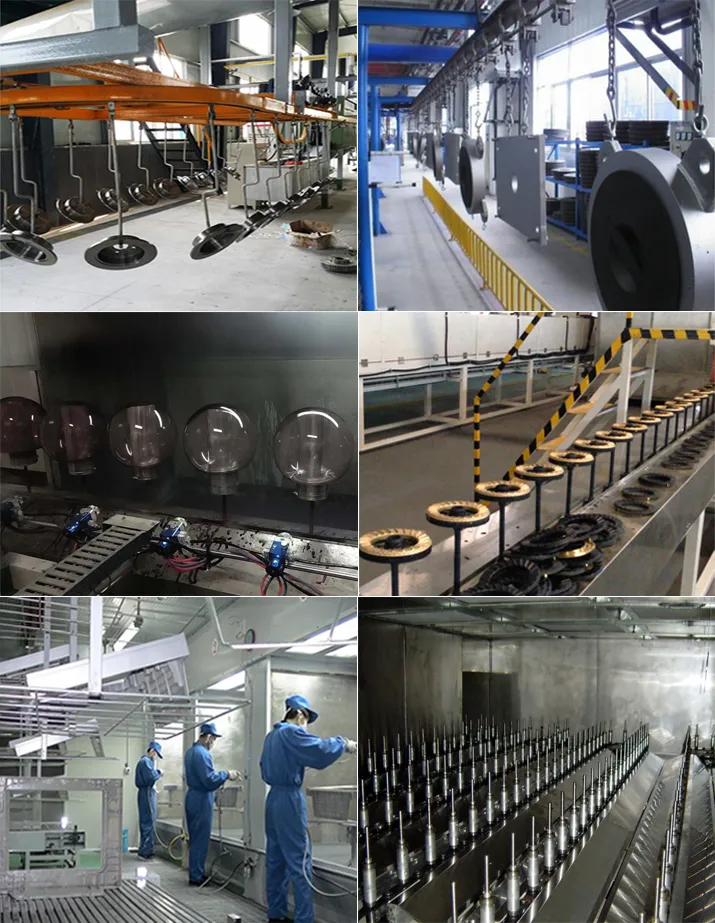

Automatic spray paint lines are widely used for workpieces requiring high efficiency and output. Suitable for:

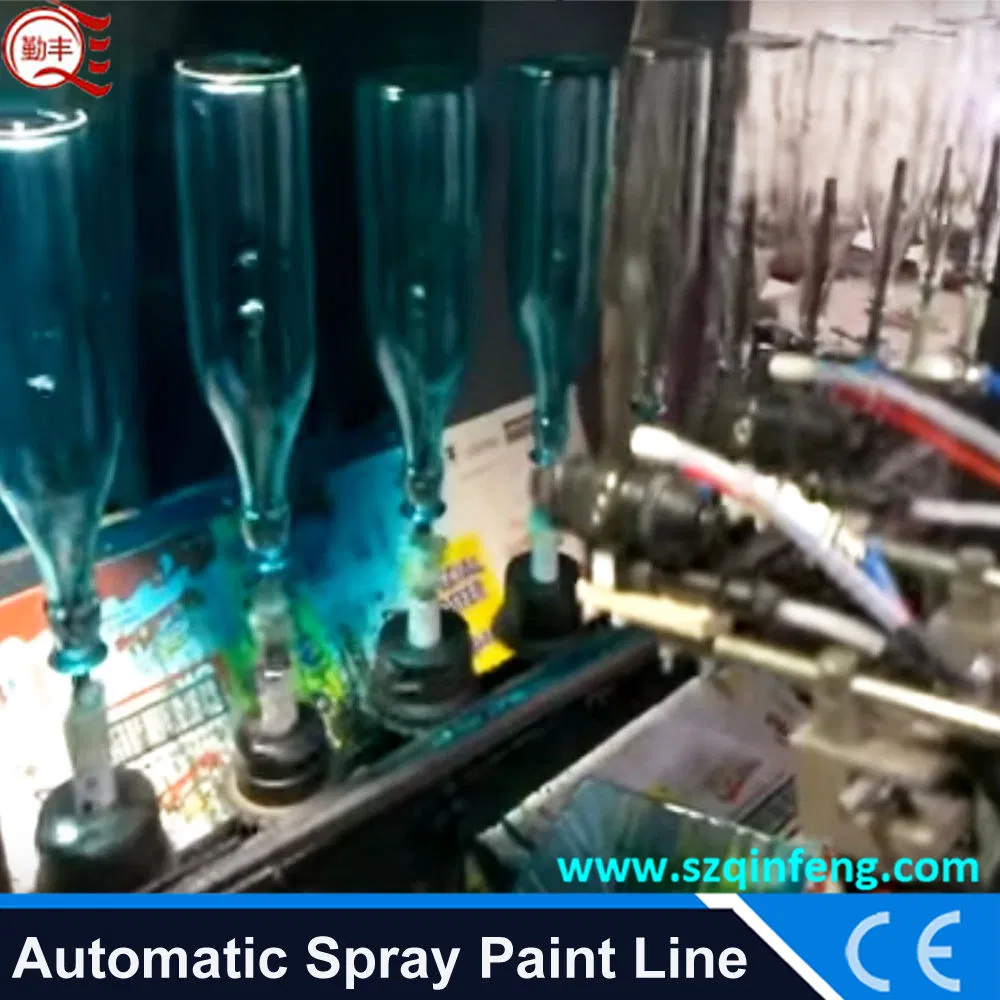

🔹 All kinds of bottles (wine bottles, cosmetics bottles, cosmetic lids)

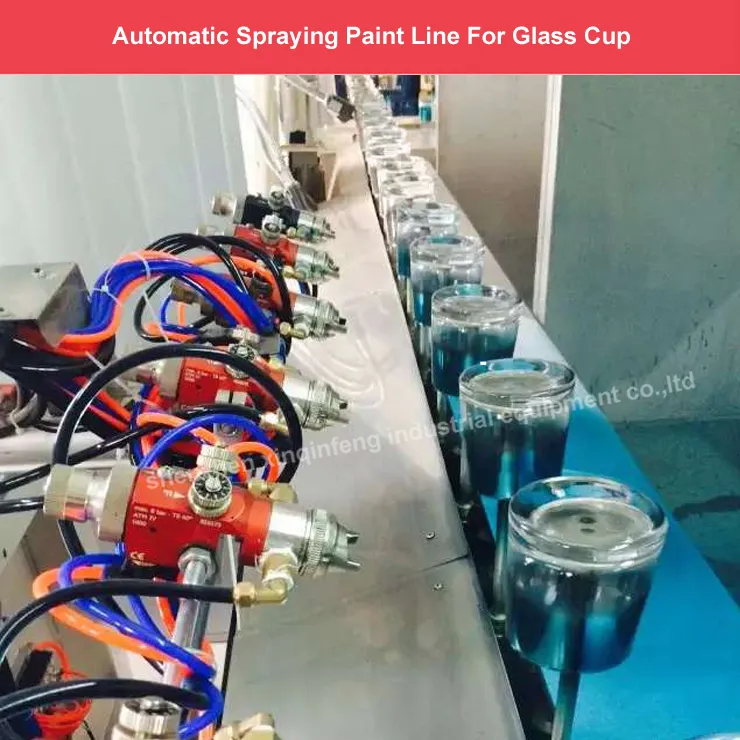

🔹 Glass cups, glass balls, and hardware
🔹 Plastic round disks and kitchenware
🔹 Helmets, rearview mirrors, and other irregular shapes

🛠️

Available Equipment Solutions

▪ Plastic parts dust coating equipment
▪ Metal products electrostatic coating
▪ Spraying robots & manipulators
▪ Automatic UV curing furnace lines
▪ DISK automatic electrostatic coating
▪ Water Curtain Booth equipment
▪ Waste water/gas recycling systems
▪ Electrophoresis coating equipment

🤝

Our Services

Pre-sales:

1. Offer professional advice and provide the best solution.
2. Custom drawings and solutions based on requirements.
3. Competitive pricing for selected solutions.

After-sales:

1. Onsite installation, commissioning, and training.
2. Lifetime warranty and fault handling service.
3. 1-year warranty for each machine.
4. Periodic machine condition follow-ups.

❓

Frequently Asked Questions

Q1: What is the precision of the automatic spraying system?

A1: The system features high precision with a running accuracy within 0.2mm and a spraying accuracy between 0.2-1mm.

Q2: How much paint can be saved using this equipment?

A2: Thanks to the flexible spraying size control, the system can save up to 20% of paint compared to traditional methods.

Q3: Is the system capable of 24-hour continuous operation?

A3: Yes, the equipment is designed for high efficiency and can reach continuous work for 24 hours, with an output 3-5 times higher than manual labor.

Q4: What are the main components used in the control system?

A4: The system utilizes a Taiwan Fatek Brand PLC and a Beijing Mcgs Brand touch screen for reliable and easy operation.

Q5: What is the standard lead time for ordering?

A5: For 1-2 sets, the standard lead time is 20 days. For larger orders (more than 2 sets), the timeline is negotiable.

Q6: What materials can the system spray on?

A6: It is compatible with various substrates including steel, plastic, glass, and hardware, and is used for items like wine bottles, helmets, and kitchenware.
