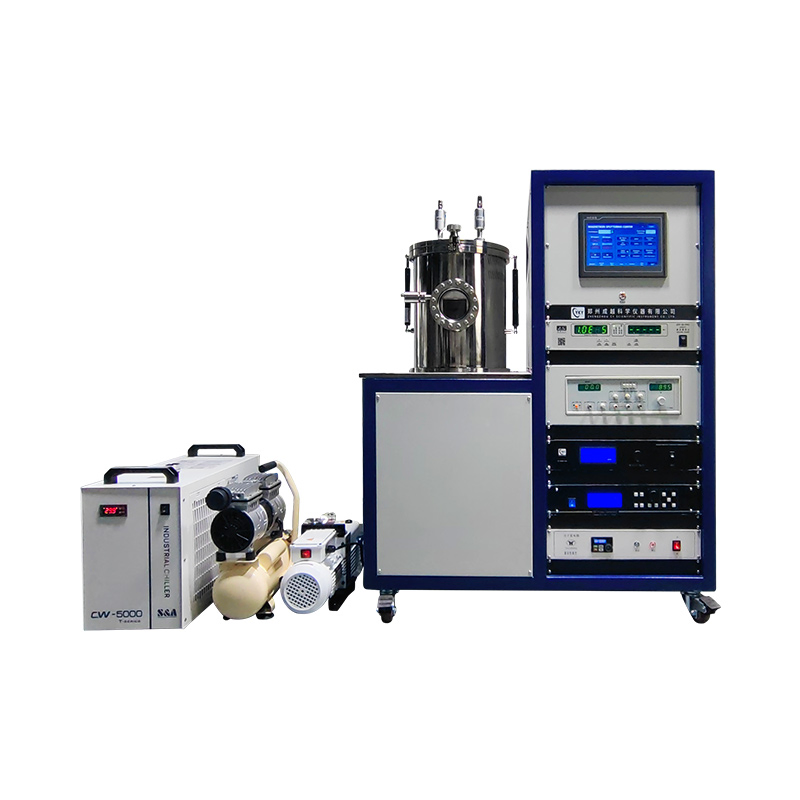

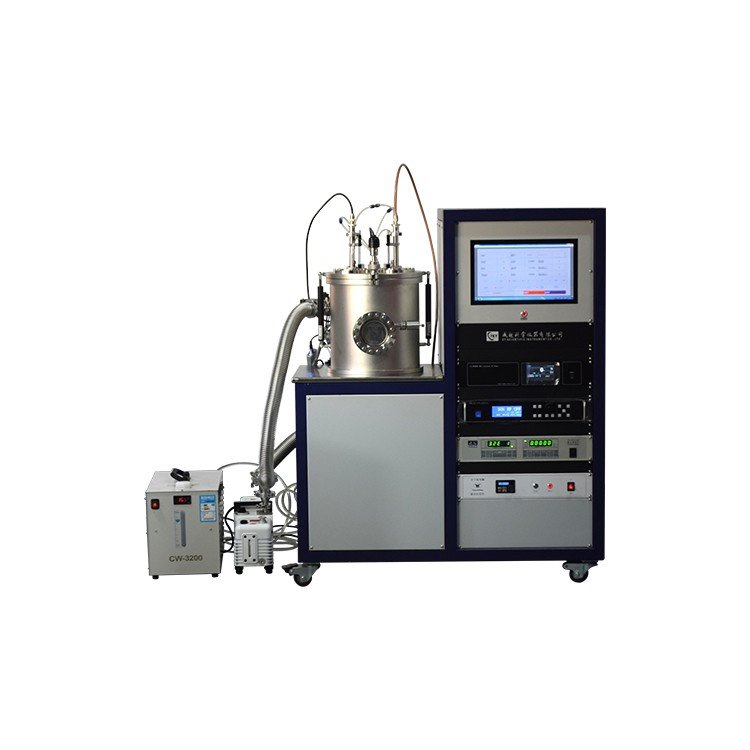

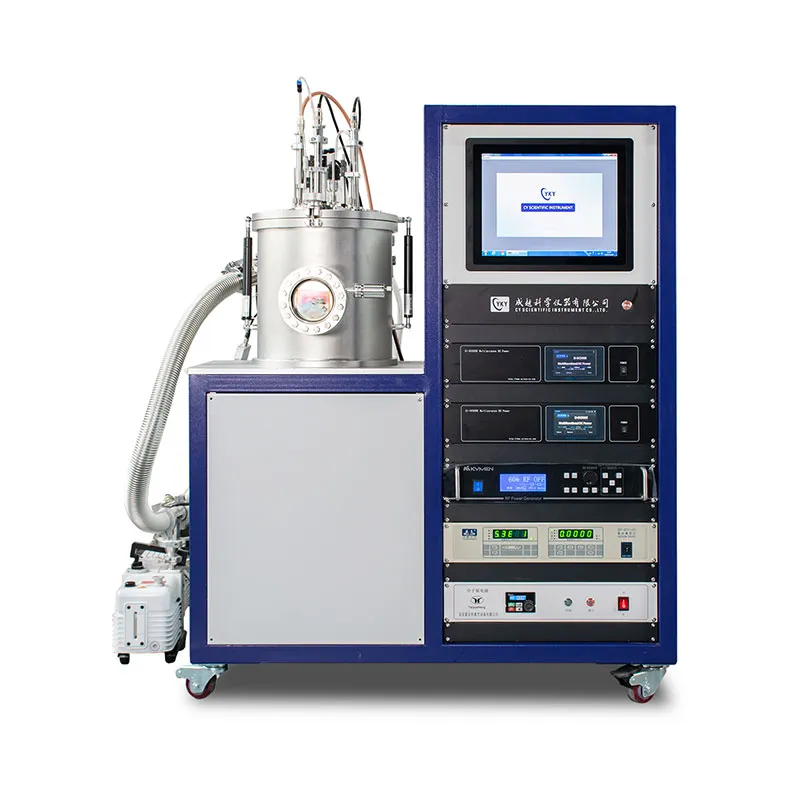

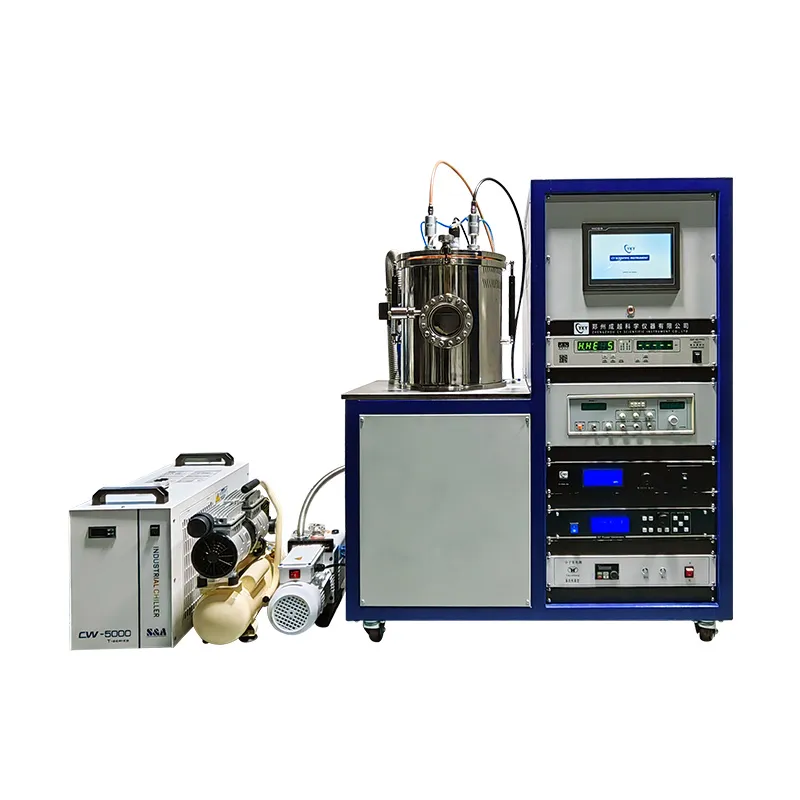

The Three targets RF magnetron sputtering coater is a cost-effective magnetron sputtering coating equipment. It is standardized, modular, and customizable. There are 1-inch or 2-inch magnetron targets for choice. Customers can choose the target according to the size of the substrate to be coated. The device is equipped with three 300W RF power supplies, suitable for the preparation of non-metal materials. Three targets meet the needs of multi-layer or multiple coatings. Various types of power supply are available from 300W to 1000W specifications.
Applications: Ideal for preparing single-layer or multi-layer ferroelectric thin films, conductive films, alloy films, semiconductor films, ceramic films, dielectric films, optical films, oxide films, and hard films. Its compact size and ease of operation make it ideal for laboratory research.
| Sample Stage | Size: φ185mm | Heating: Max 500ºC | Accuracy: ±1ºC | Rotation: 1-20rpm |
| Sputtering Targets | Quantity: 3 Heads (2" standard, 1" optional) | Cooling: Water Cooled | Flow: 10L/min |
| Vacuum Chamber | Size: φ300mm×300mm | Material: Stainless Steel | Window: φ100mm | Top Open |
| Gas Control | 2 Channels Mass Flowmeter (100sccm), customizable range |
| Vacuum System | Molecular Pump: 600L/S | Backing Pump: Rotary Vane | Ultimate Vacuum: 1.0E-5Pa |
| Power Supply | RF Power: 300W × 3 | Voltage: AC 220V 50/60Hz |
| Dimensions/Weight | Size: 600mm×650mm×1280mm | Total Weight: 300kg | Total Power: 2.5KW |
Specializing in the development and production of laboratory technology research equipment since 2005. Products include laboratory sintering equipment, coating equipment, and analytical instruments, exported to over 25 countries including the United States and Europe.
