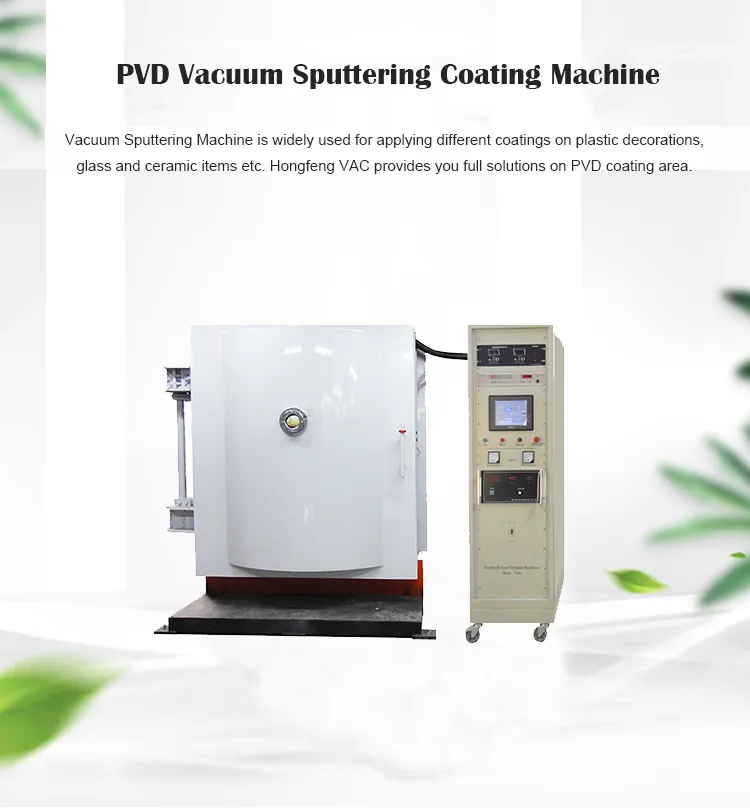

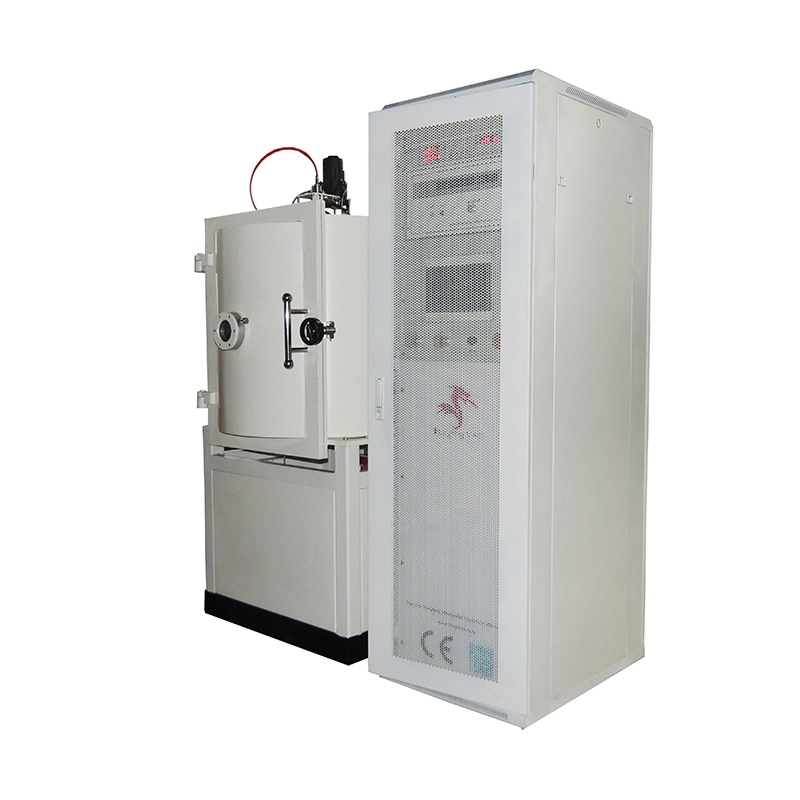

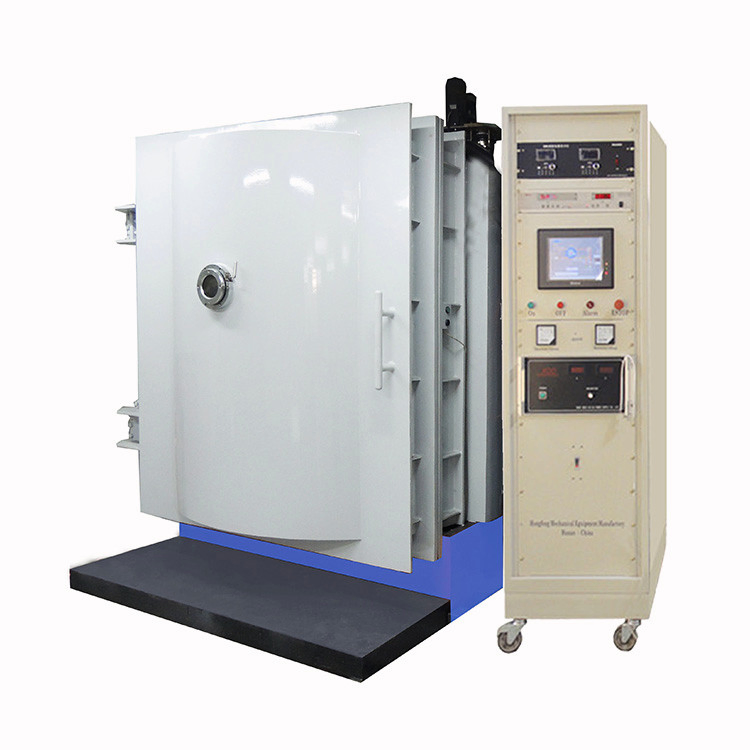

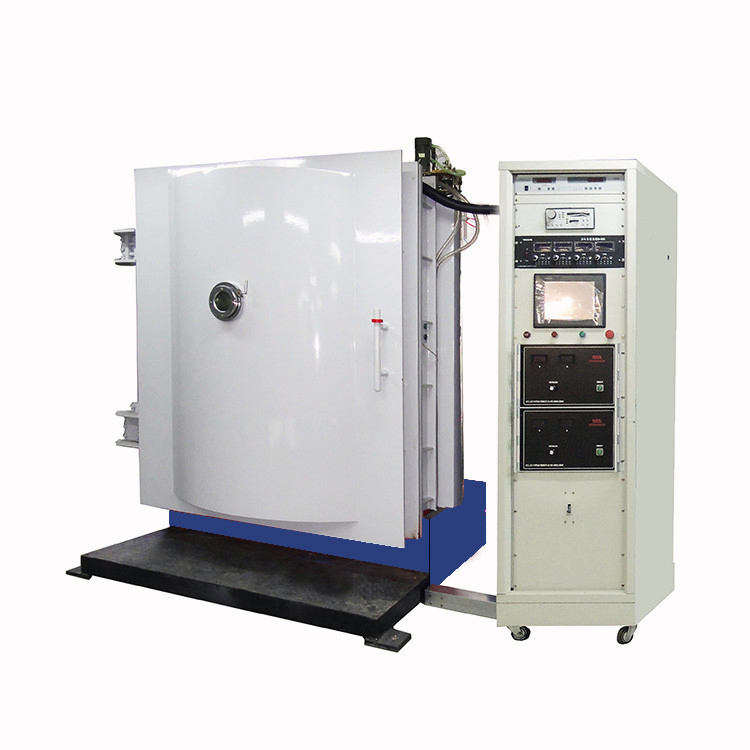

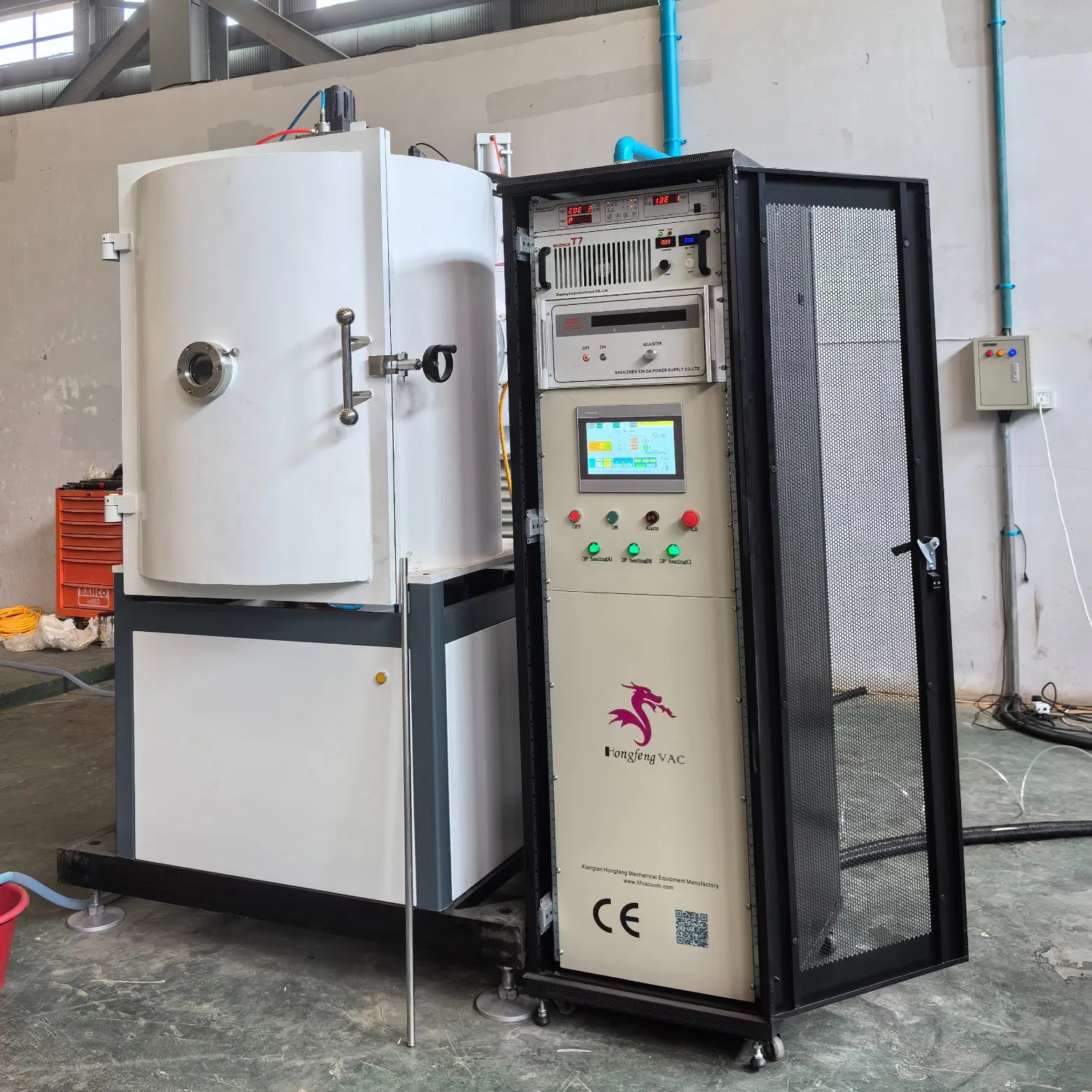

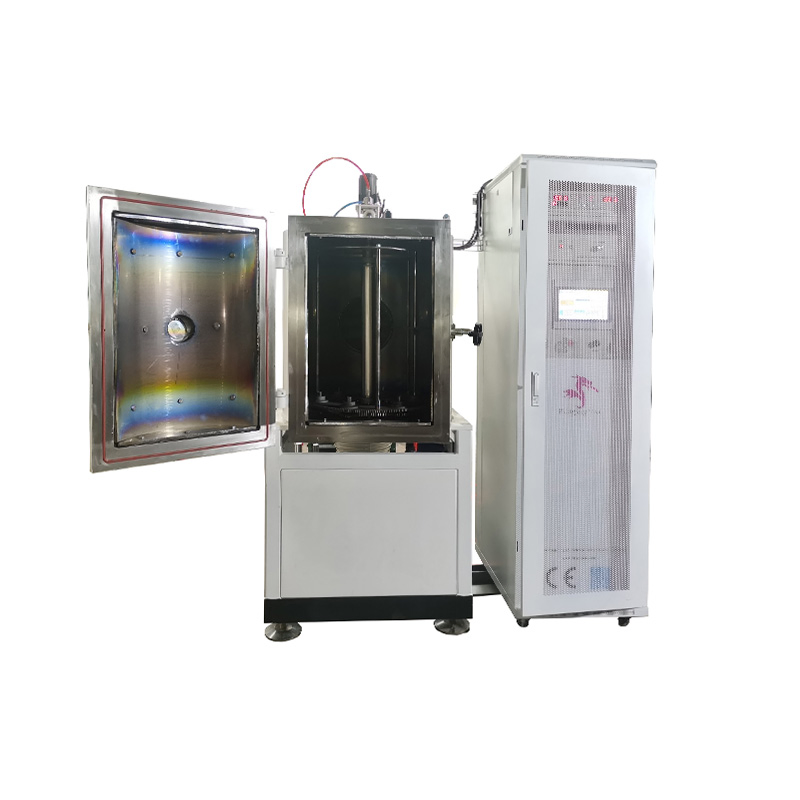

Vacuum Plating Silver Thin Film Deposition Magnetron Sputtering System

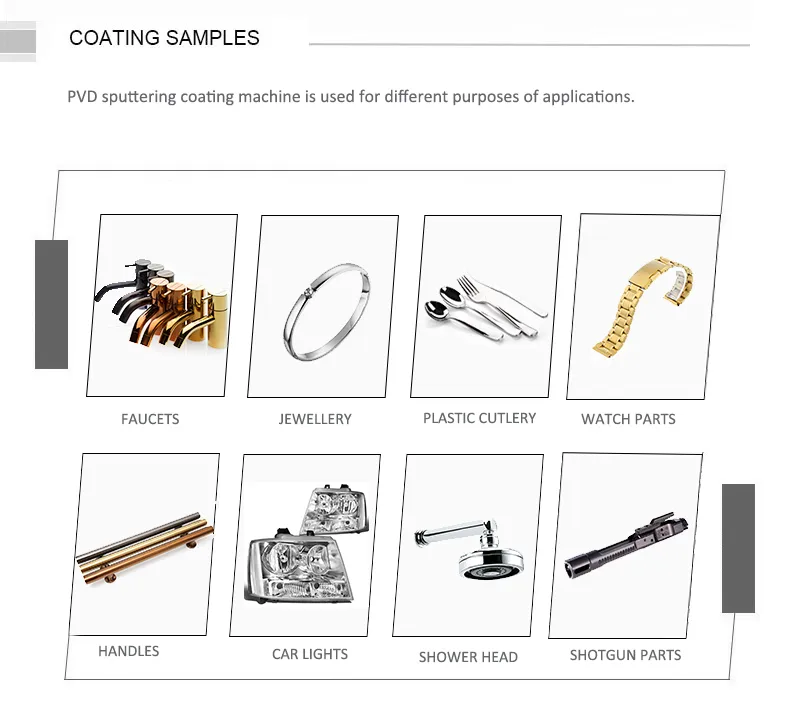

This equipment features a reasonable structure providing uniform coating quality, high pumping speed, short cycles, and high efficiency. It is designed for easy operation with low energy consumption and stable performance. Widely utilized in automotive, audio, small appliances, computers, watches, toys, mobile phones, reflective cups, and cosmetic industries.

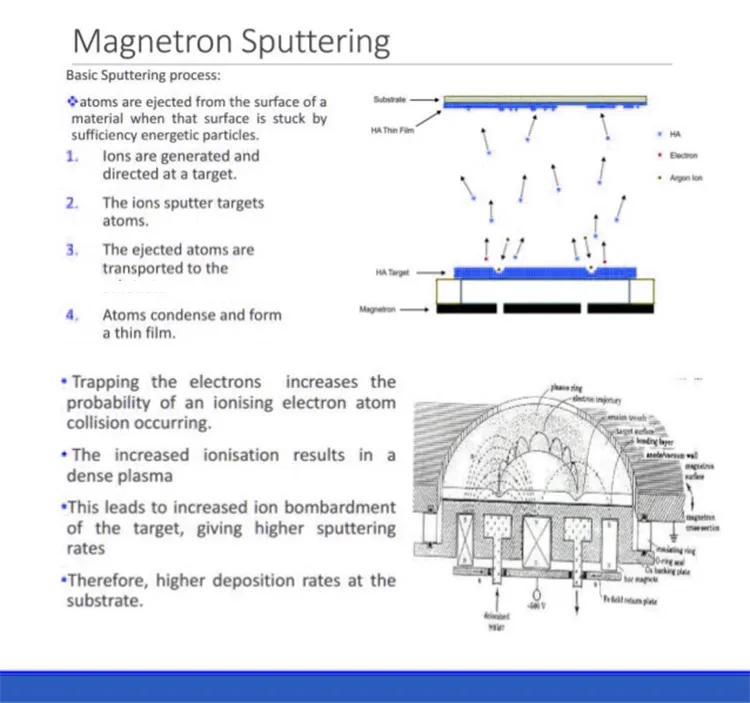

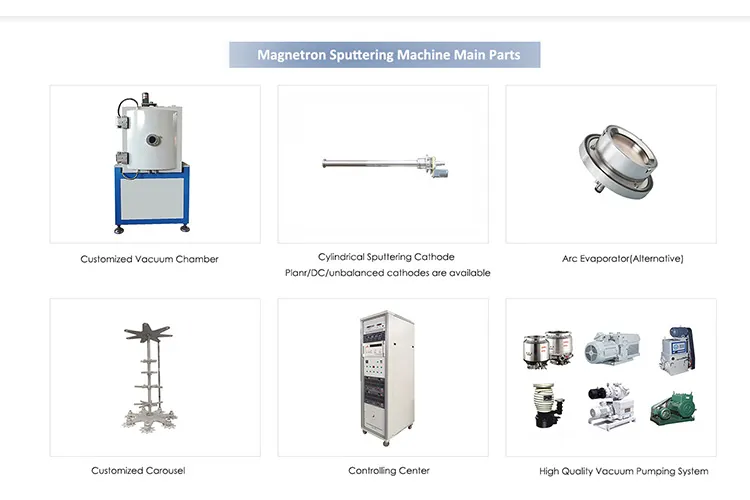

DC Magnetron Sputtering Coating is typically used for direct sputtering onto various substrates including plastic, glass, metal, and ceramics. With over 10 years of dedication to manufacturing magnetrons, our designs include rectangular, cylindrical, and circular configurations in various sizes.
| Model Number | SP-1000 | SP-1200 | SP-1400 | SP-1800 |
|---|---|---|---|---|
| Chamber Dimension (D*H) | 1000*1100 | 1200*1400 | 1400*1600 | 1800*2000 |
| Chamber Material | Carbon steel, SUS304 or SUS316L | |||
| Sputtering Cathodes | ≥1 sets, DC sputtering, cylindrical or rectangle | |||
| Pumping Time | From atmosphere to 5.0*10-2Pa < 8 minutes | |||
| Ultimate Vacuum | 5.0*10-4 Pa | |||
| Total Power | 40-100kW | 70-1000kW | ||
