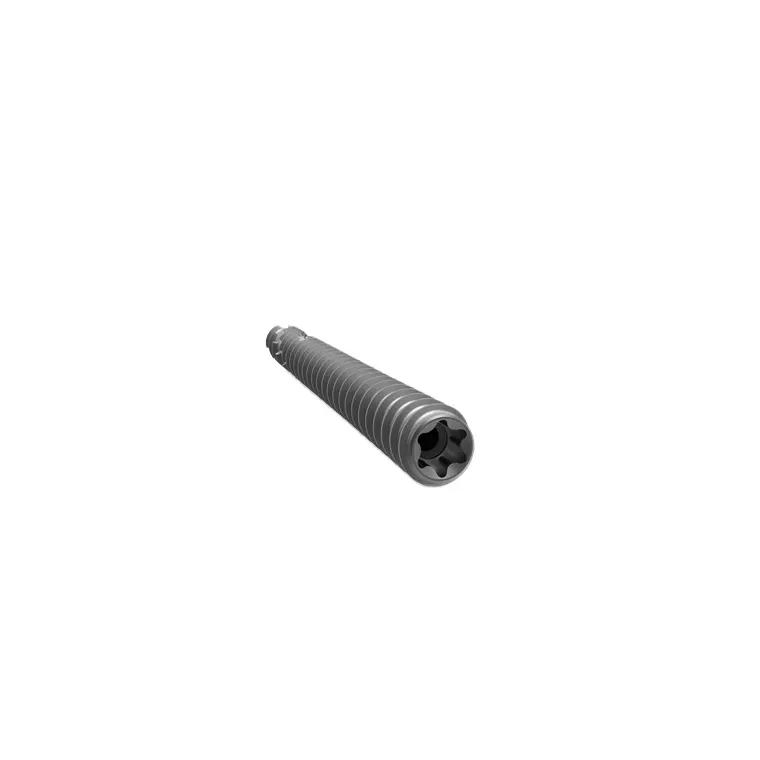

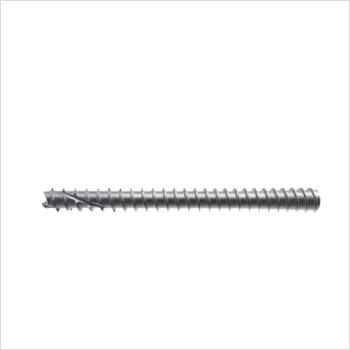

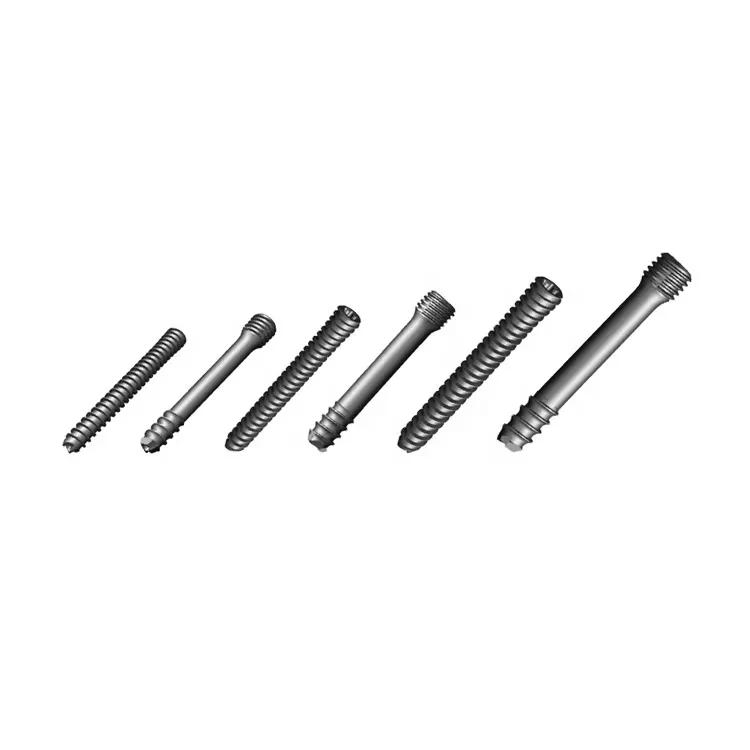

Wholesale Titanium Headless Cannulated Compression Screw

Still deciding? Get samples of $ !
Request Sample

Product Description

📋 Basic Information
Model NO.
TY-LP-311
Condition
New
Usage
Correct Deformities, Fracture Fixation
Type
Bone Fracture Fixation
Properties
Implant Materials & Artificial Organs
Material
Titanium
Application
Orthopedic Surgery
Classification
Class III
Warranty
One Year
After-Sale Service
Online Technical Support
Package
Sterile Package
Certificate
CE/ISO13485
Color
As Your Request
OEM
Accepted
Transport Package
Carton
HS Code
9021100000
Capacity
10000 pieces/Year
⚙️ Product Description

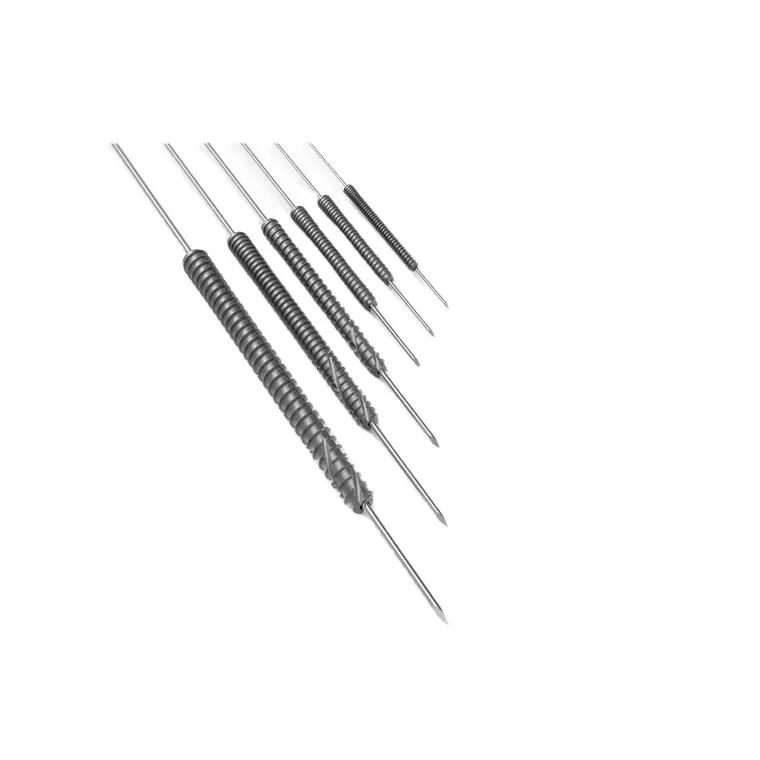

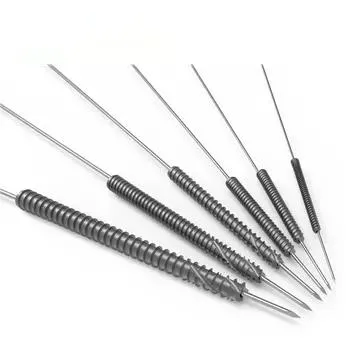

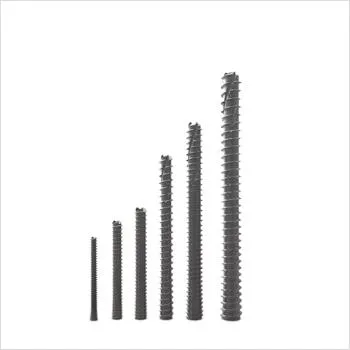

Cannulated Headless Compression Screw

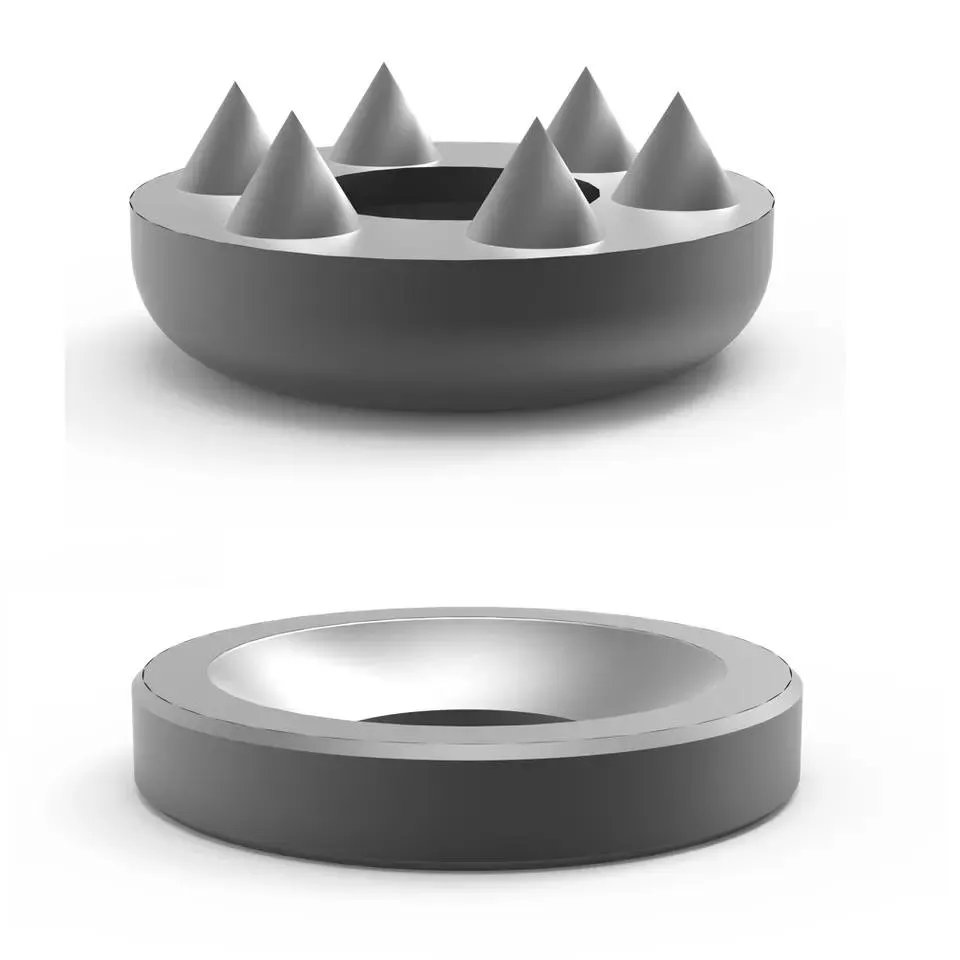

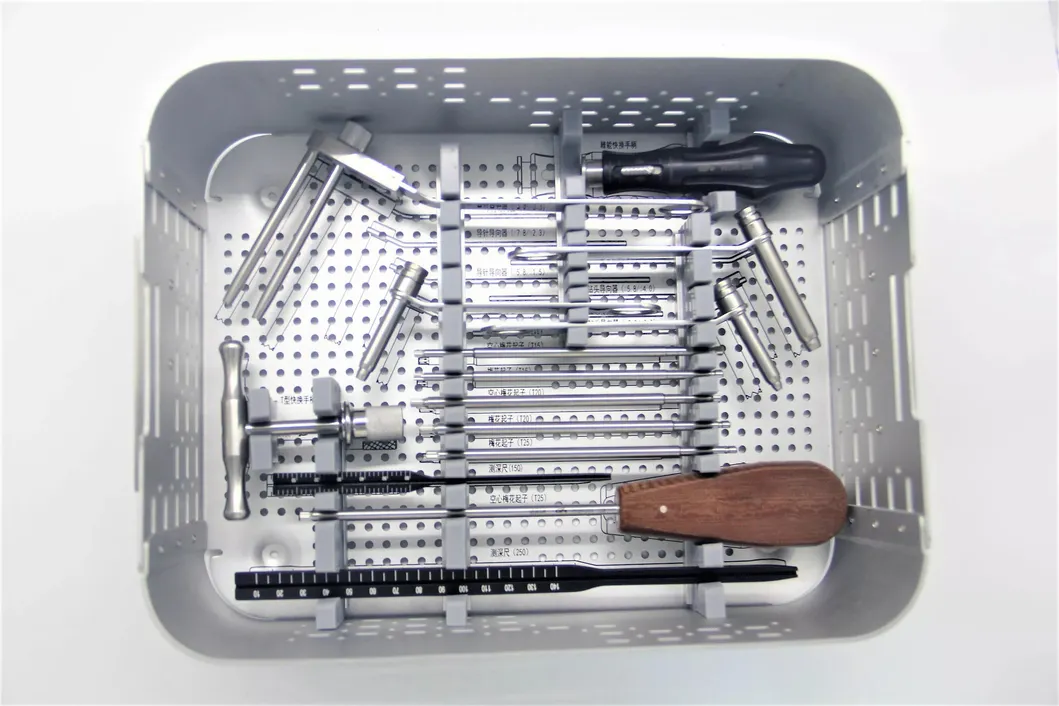

Surgical Screw Overview Surgical Application
  • When the screw is implanted, the fracture is well compressed by the thread, which will increase the stability of the fracture.
  • After insertion, it can keep compressing function under periodic forces.
  • The thread pitch, which is bigger in the head, varies from the head to the tail, so the speed of the screw head into the bone is faster than the screw tail. Thus when implanting, the threads will force the fracture surface.
  • Superior performance of the triangular blades makes it to implant and remove the screw easily.
  • Make screw tail embedded in the bone surface, it can reduce the stimulation of the soft tissue.
  • With the guidance of guide wire, percutaneous implantation will be more efficient.
  • Both the screw head and tail have bilateral edges which can reduce the risk of hole cracking when inserting or removing the screw.
Product Specification
Types Diameter Length
3.0 Body 2.5mm / Tail 3.0mm 6-14mm (1mm int) / 14-30mm (2mm int)
3.5 Body 3.5mm / Tail 3.6mm 16-30mm (2mm intervals)
4.0 Body 4.0mm / Tail 4.1mm 16-34mm (2mm intervals)
4.5 Body 4.5mm / Tail 4.7mm 20-30mm (2mm int) / 30-50mm (5mm int)
5.0 Body 5.0mm / Tail 5.5mm 25-60mm (5mm intervals)
7.3 Body 7.0mm / Tail 7.3mm 60-120mm (5mm intervals)

*All the prices are only for reference. Exact price will be based on the latest quotation.

Frequently Asked Questions
What is the primary material used for these compression screws?
The screws are manufactured from high-grade Titanium, which is ideal for orthopedic implants due to its biocompatibility and strength.
What are the main applications of the TY-LP-311 model?
It is specifically designed for orthopedic surgeries, primarily used for fracture fixation and correcting bone deformities.
How does the headless design benefit the patient?
The headless design allows the screw tail to be fully embedded in the bone surface, significantly reducing irritation to the surrounding soft tissue.
What certifications do these medical devices hold?
The products are certified under CE and ISO13485 standards, meeting international requirements for Class III medical instruments.
Does the screw provide continuous compression?
Yes, thanks to the varying thread pitch design, the screw provides initial compression during implantation and maintains stability under periodic physiological forces.
Is technical support available after purchase?
Yes, we provide online technical support as part of our one-year warranty service for all surgical implants.
